Xerox Phaser 7100 Service Manual

Error Troubleshooting
Phaser 7100 Service Manual Xerox Internal Use Only2-44

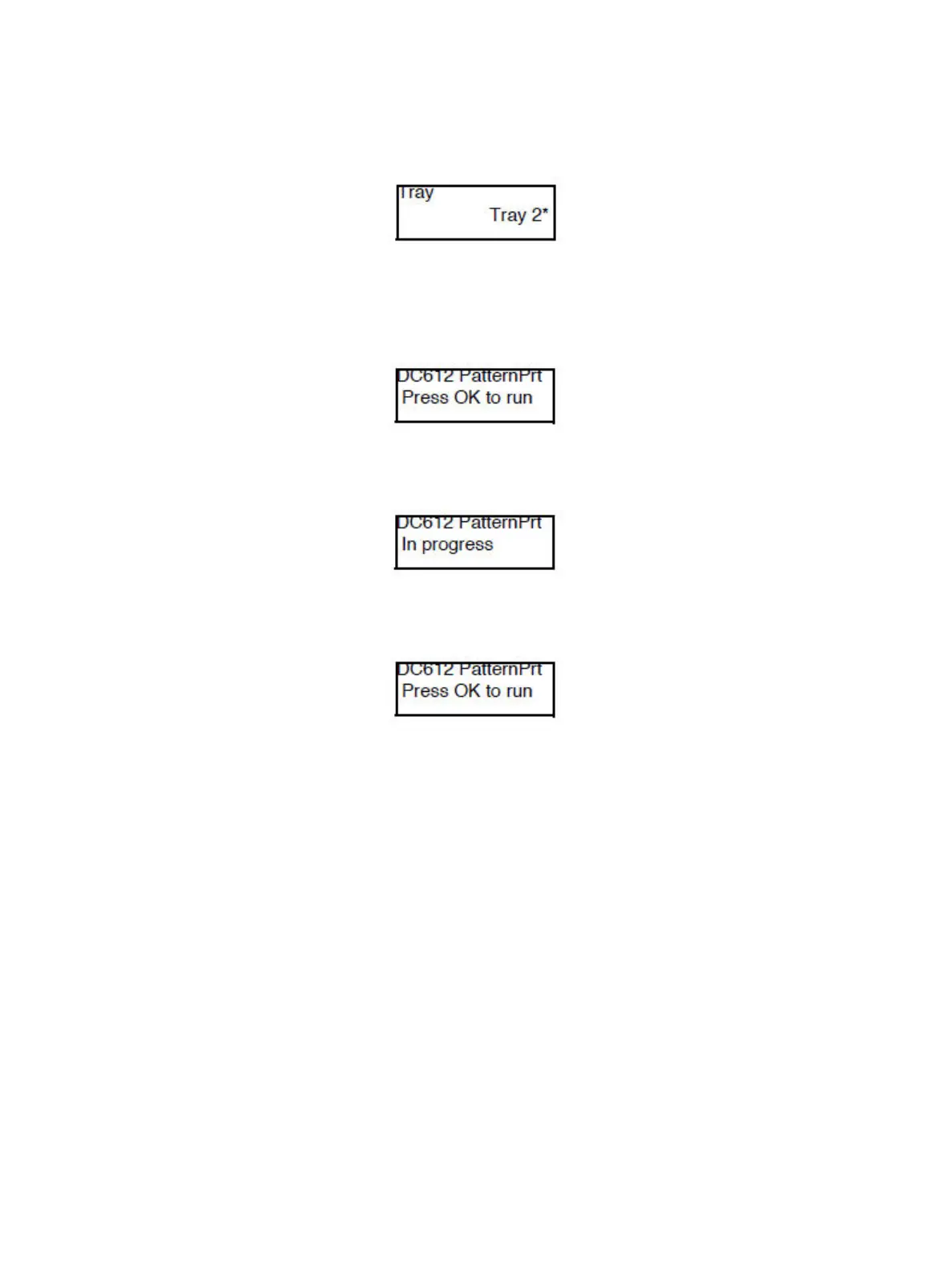

13. Set the applicable Tray and press OK to confirm it. An “ * ” is displayed at the right side of the Tray
item.
Note: The items that can be set vary according to the Pattern. If there are more settings items, the
relevant screens will be displayed. Set the items using the same procedure as during Tray selection.
14. Press OK to display the DC612 PatternPrt - Press OK to run screen.
15. Press OK to print the test pattern. As the process is running, the DC612 PatternPrt - In progress
screen is displayed. To stop printing the test pattern, press Cancel.
16. After the process has completed, the DC612 PatternPrt - Press OK to run screen will be displayed
again.
17. Press Menu to return to the Diagnostics - Fault Diag. screen.

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
