General and Operation Overview
Xerox Internal Use Only Phaser 7100 Service Manual 1-39

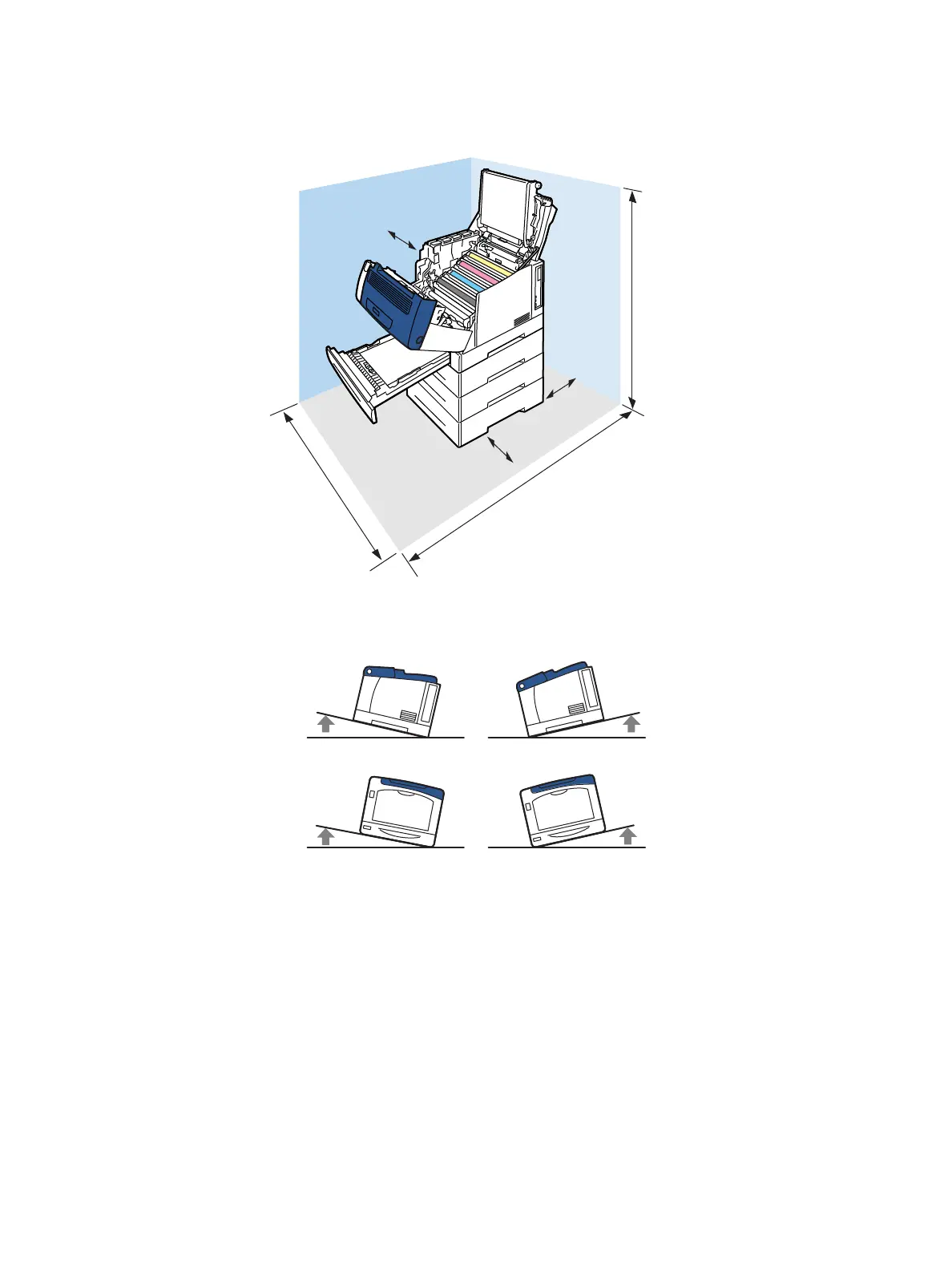

Configuration with Three Optional 550-Sheet Feeders
2. The printer must not be tipped or tilted more than 10° angle.
Failure to adhere to the specified mounting specifications will void all guarantees of print-quality
and/or performance. Known problems that can occur as a result of exceeding the mounting surface
specifications are:
• Color-to-Color mis-registration, primarily in the horizontal direction.
• A smear or line of toner approximately 40 mm from the trailing edge of the print.
10 cm
3.9 in
10 cm
3.9 in
145.4 cm
57.2 in
118.1 cm
46.5 in
70 cm
27.6 in
13 cm
5.1 in
s7100-165
s7100-166
