Xerox Phaser 7100

Image Quality
Phaser 7100 Service Manual Xerox Internal Use Only3-60
Skew
Perpendicularity
Magnification Deviation (Reduce/ Enlarge Error) • Vertical: 400 mm ± 0.5%
• Horizontal: 240 mm ± 0.5%
Image Quality Specifications (Continued)
Characteristic Specification

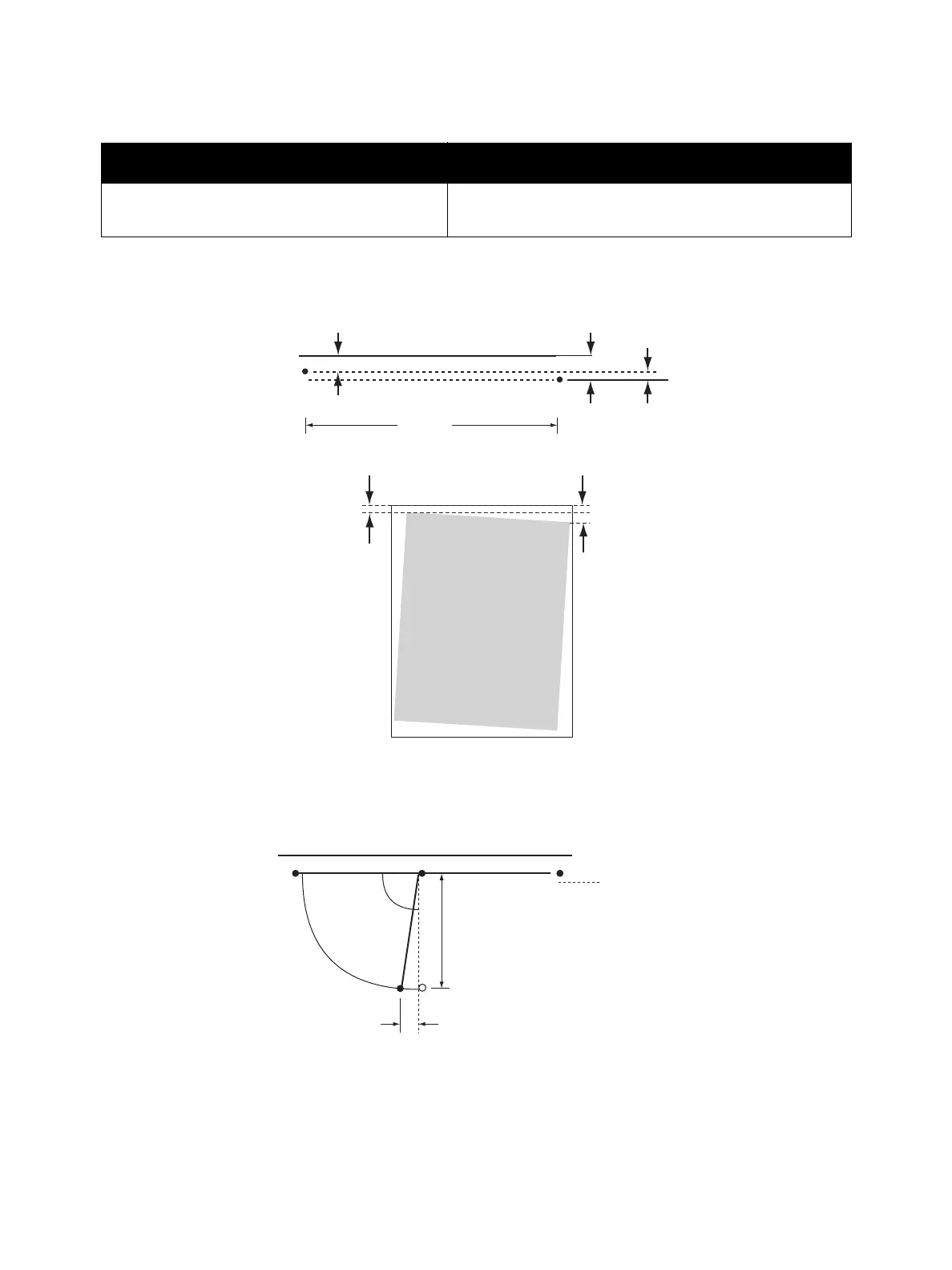

Lead Edge
A
D
Skew = a - b
(within ±2.0 mm)
ab
240 mm
b = (T/E-D)
a = (T/E-C)
s7100-436
Skew 3
B
A
Image Area
Lead Edge
Assumed Perfect Line
Perpendicularity = G - b (within ±1.3 mm)
A
C
D
90
200 mm
G
b
s7100-372
