Xerox Phaser 7100

Image Quality
Xerox Internal Use Only Phaser 7100 Service Manual 3-61

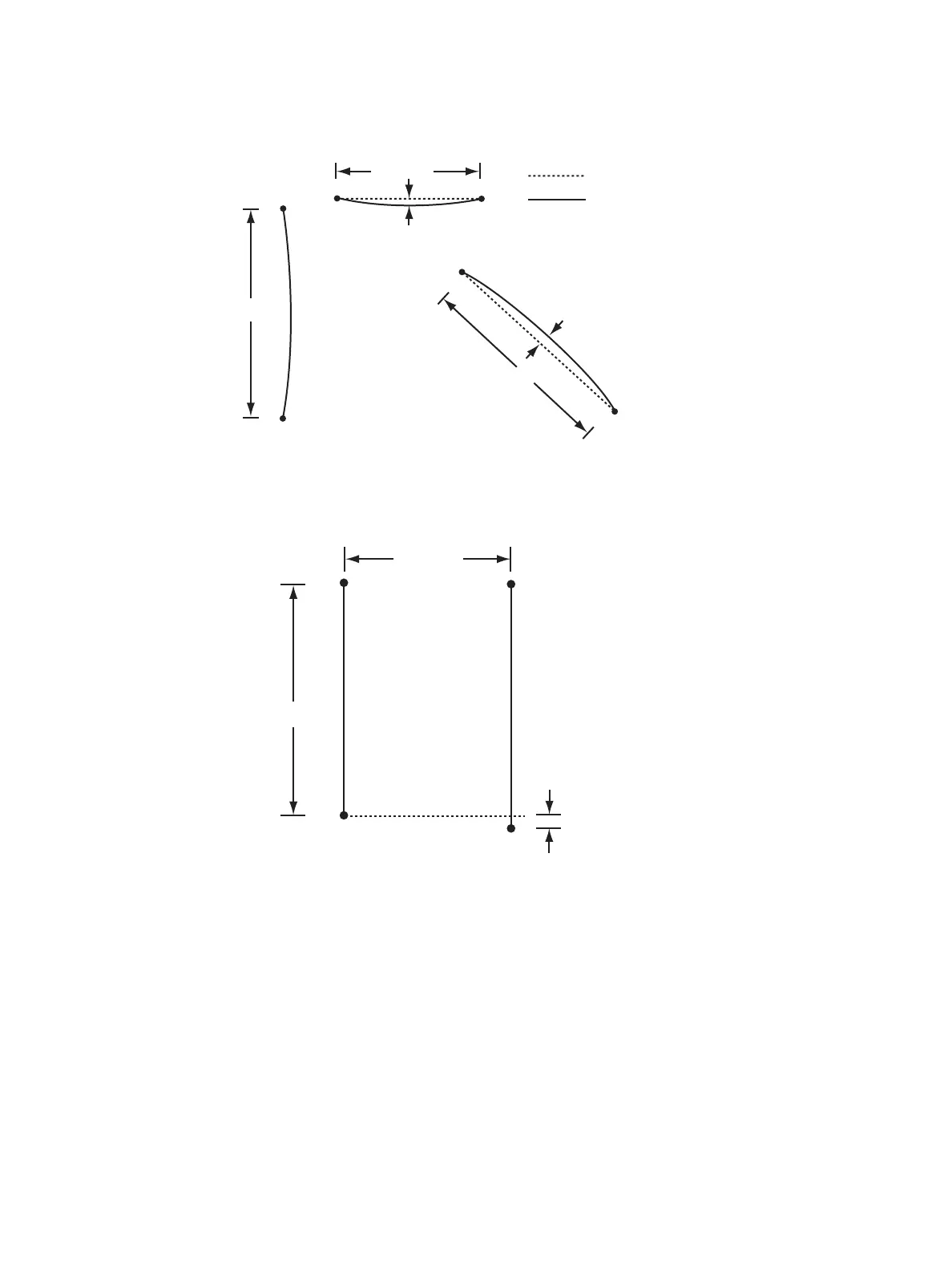

Linearity
Parallelism
B
F
H
J
L
E
B
I
240 mm
400 mm
282.8 mm
Linearity
(within ±1.0 mm)
Linearity (within ±0.7 mm)
Linearity of Slant
(within ±0.8 mm)
(Worse one of B-I or E-L)
Assumed Perfect Line
Printed Real Line
s7100-373
s7100-374
400 mm
240 mm
J
A
M
D
Parallelism
(within ±2.0 mm)
