Image Quality
Phaser 7100 Service Manual Xerox Internal Use Only3-62

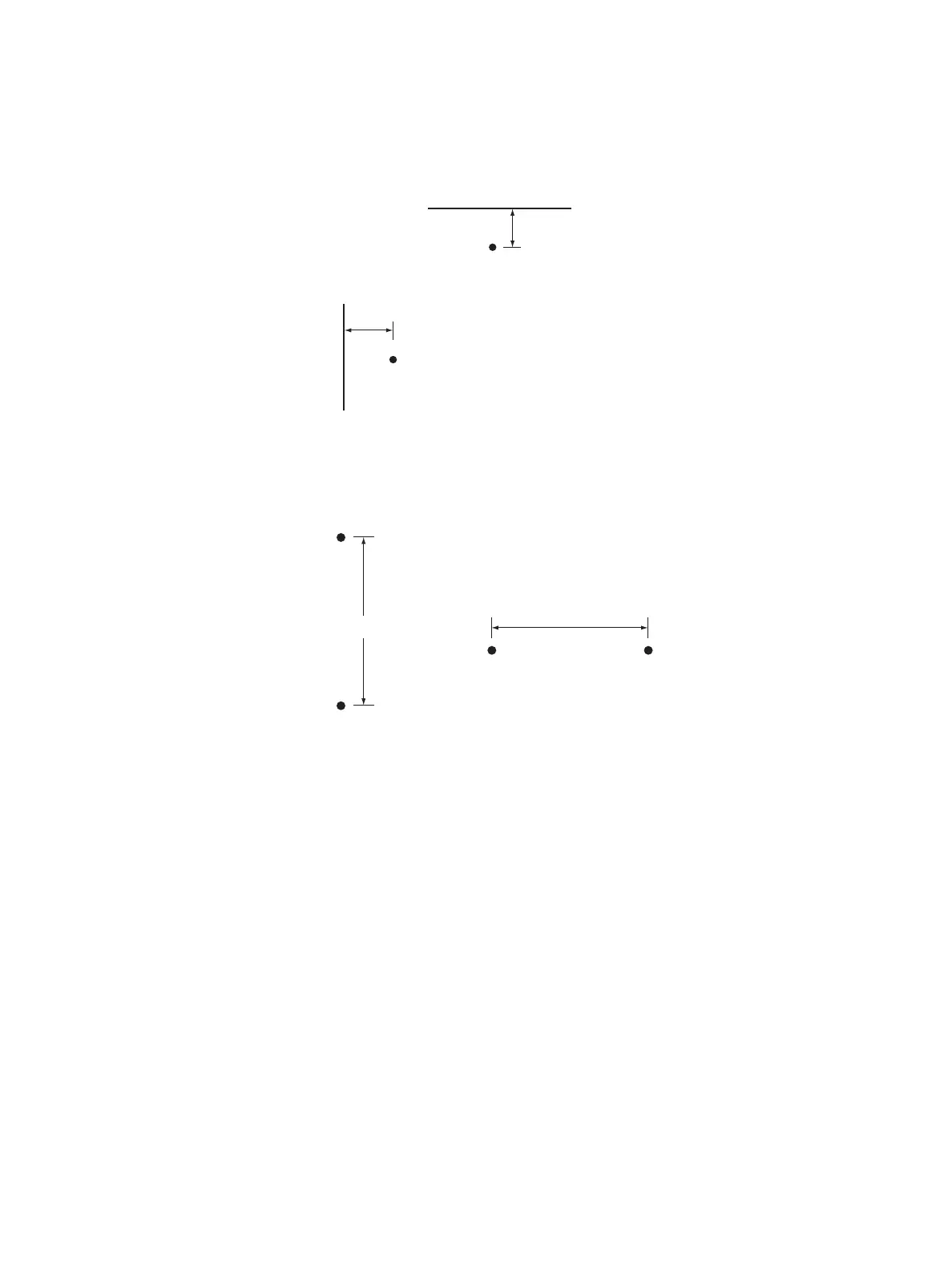

Registration
Magnification
Registration = Measured Length - Nominal
Lead Edge
Nominal = 10.0 mm
(within ±2 mm)
Nominal = 8.5 mm
(within ±2.5 mm)
Left Edge
C
E
s7100-375
C
K
FH
Magnification = Measured Length / Nominal (within ±0.5%)
Nominal = 400 mm
Nominal = 240 mm
s7100-376
