Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-10

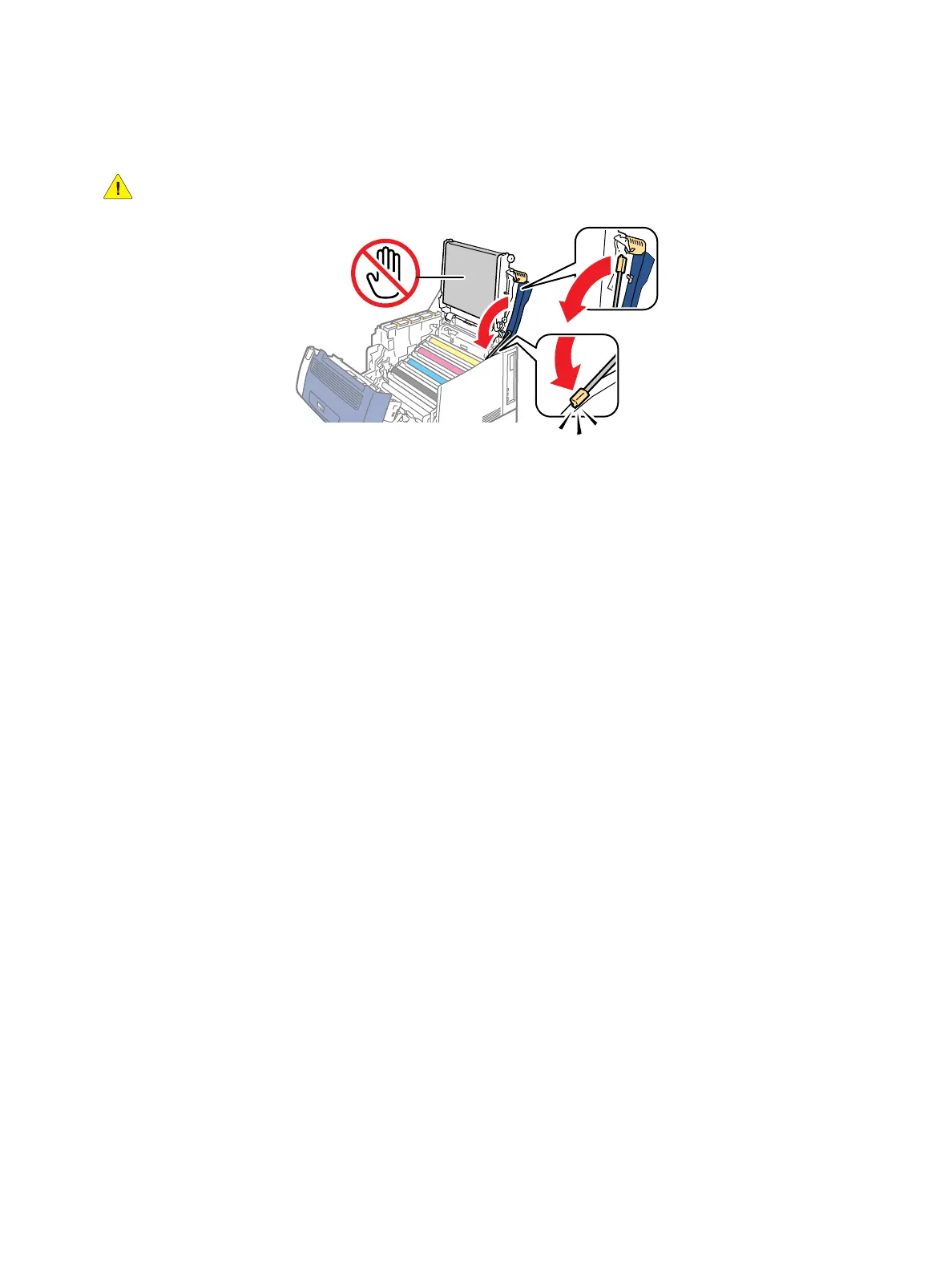

4. Release the Stand Bar Assembly (PL 9.1.26) from the Top Cover Assembly and secure the Stand
Bar in the holder.
CAUTION: Do not touch the bottom of the IBT Belt to prevent damaging the IBT Belt.
5. Remove the IBT Unit (REP 9.10 IBT Unit on page 4-177).
s7100-252
1
2
