Service Parts Disassembly

Xerox Internal Use Only Phaser 7100 Service Manual 4-11

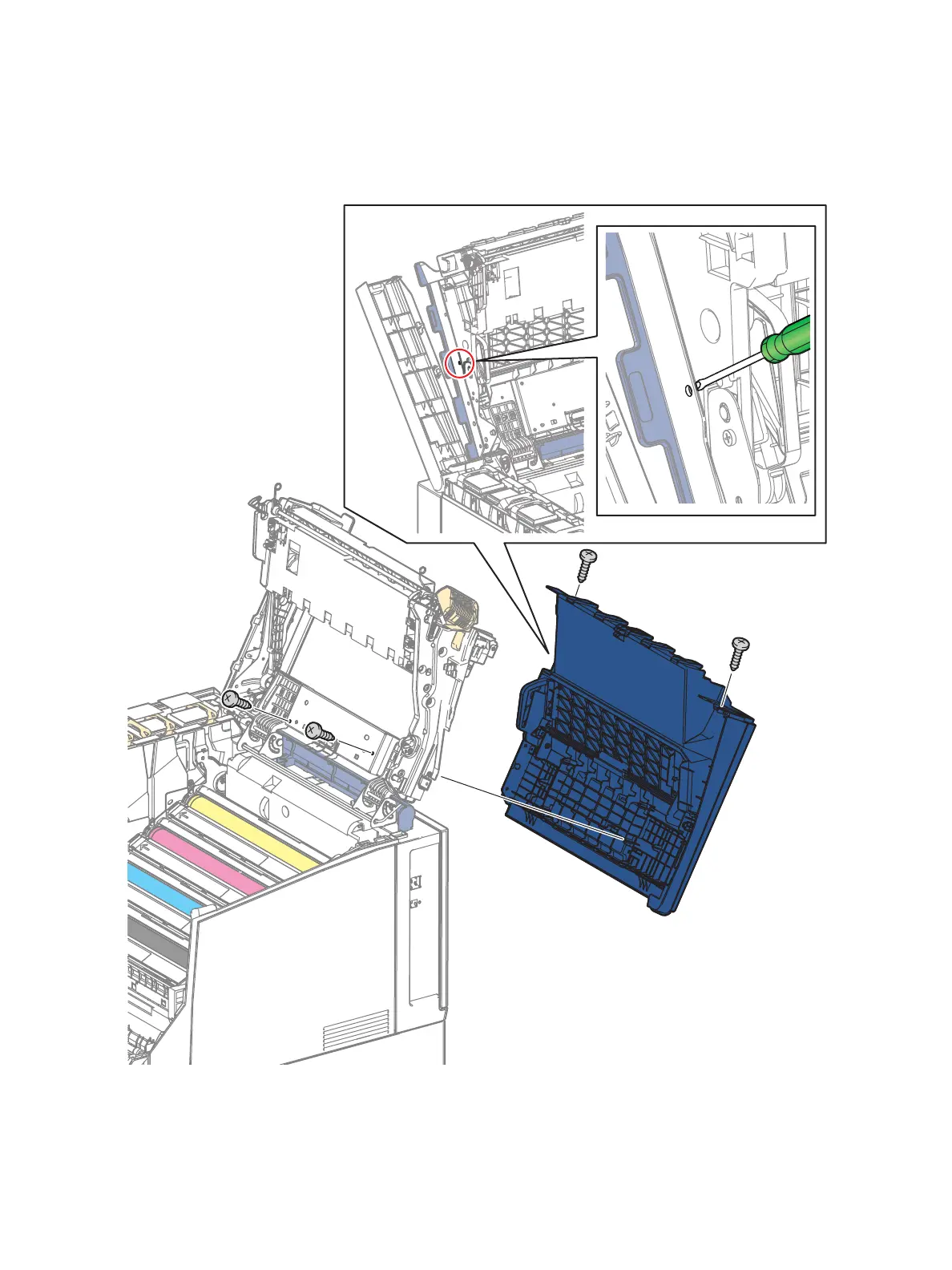

6. Remove 4 screws that secure the Top Cover Assembly.

7. Use a flat tip screwdriver to release the boss of the Top Cover Assembly.

8. Remove the Top Cover Assembly.

s7100-038
