Servi
ce P
arts Disasse
mbl
y
Phaser 7100 Service Manual
X
ero
x Internal Use Only
4-14
9.

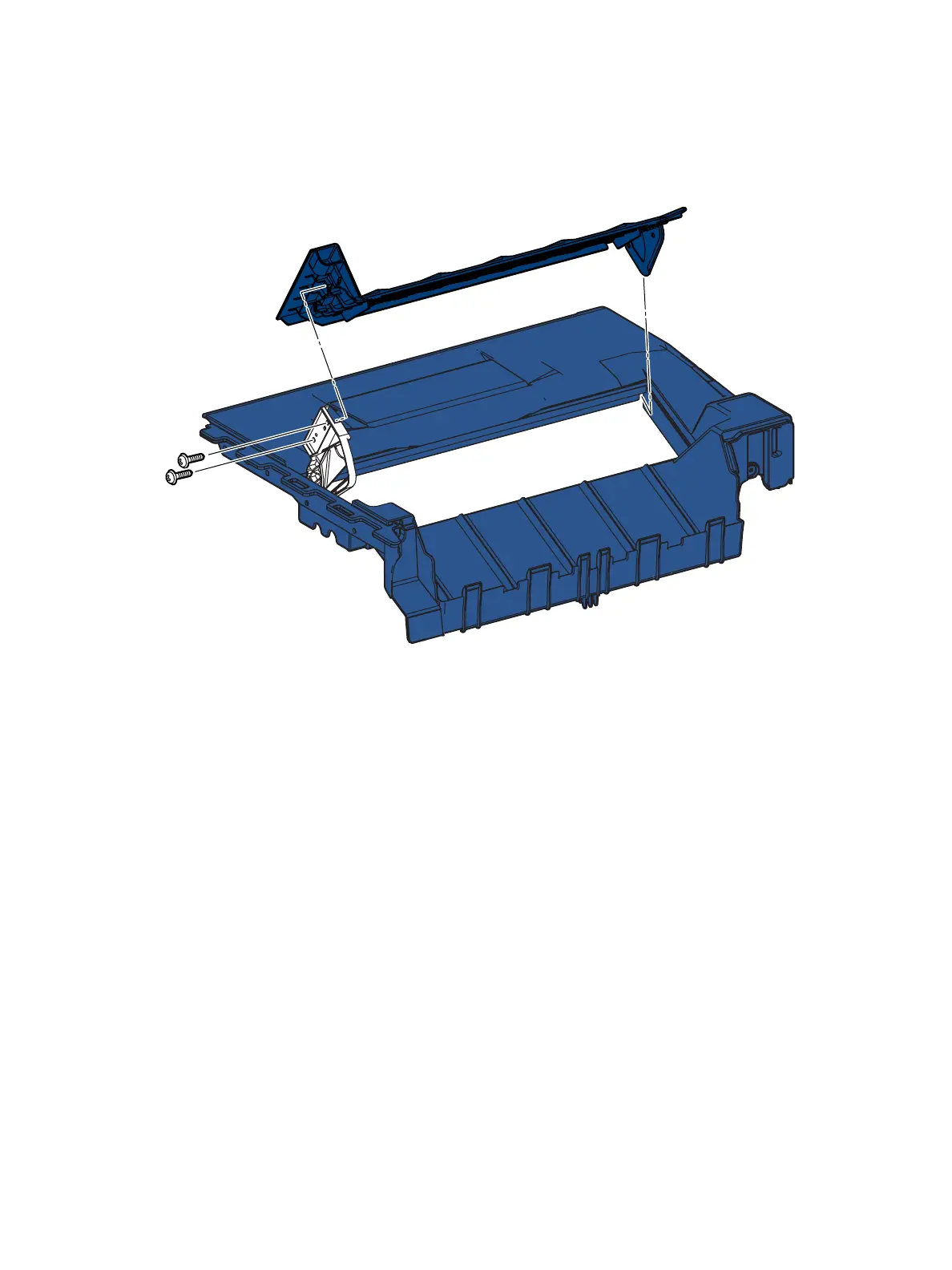

Open the W
a
ste Cov
er Assem
bly.
10.
R
emove 2 screws
(silver, tapped, 8mm) that s
ecure the W
aste Cov
er Assemb
ly.
11.
Lift and remove the W
aste Cove
r Assemb
ly.
s7100-039
661
663
