Xerox Phaser 7100

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-28
6. Remove 1 screw (silver, 6mm) and one screw (silver, tapped, 10mm) that secure the Right Side
Cover.
7. Lift the Right Cover while releasing the tab at the bottom of the Cover from the protrusion of the
Right Feeder Cover (PL 2.1.3) and slide the Right Side Cover up and out to remove.

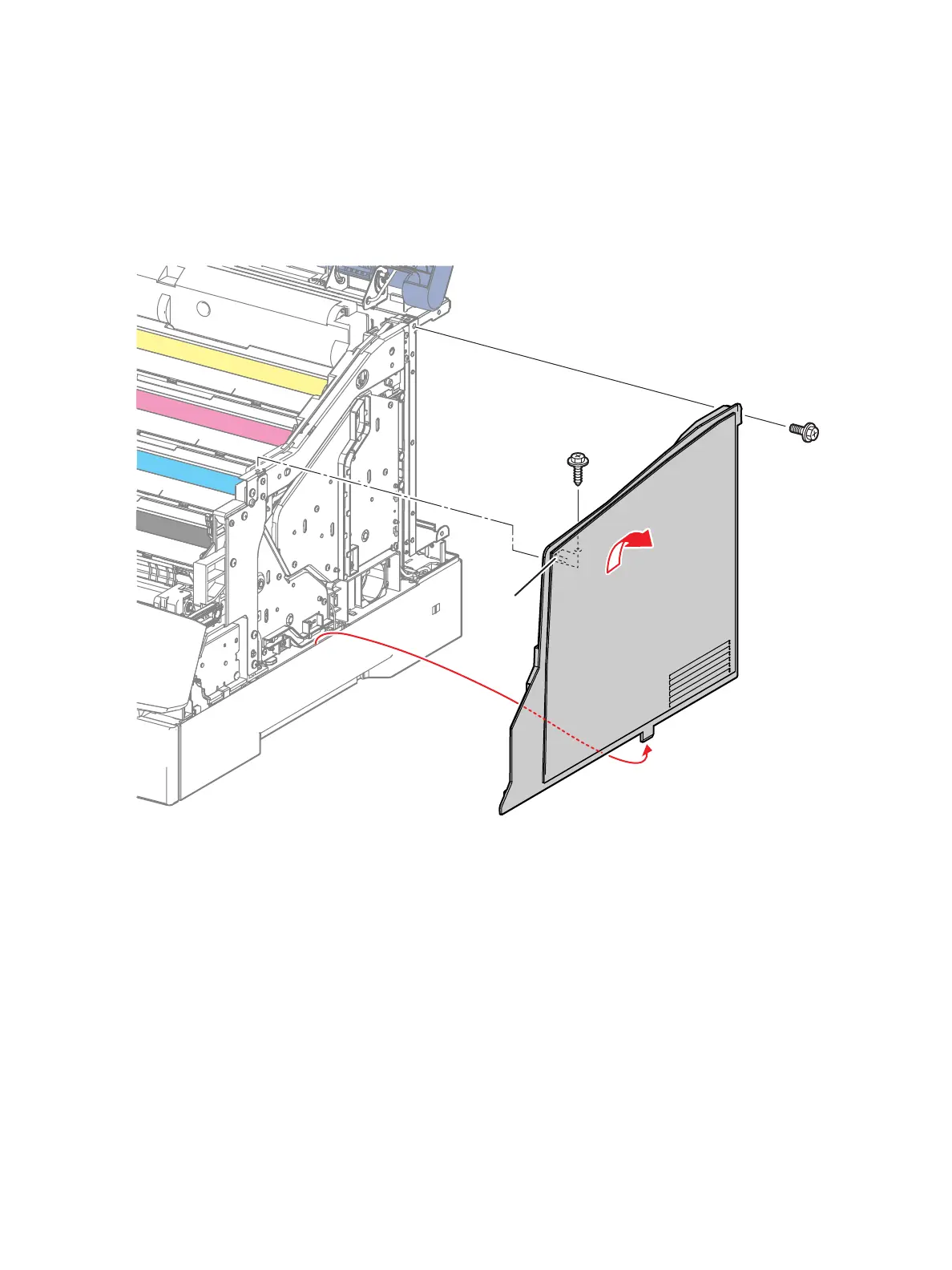

Figure 1
Replacement Note: Be sure to install the correct screws (plastic and metal) in the correct places as
shown in Figure 1 on page 4-28.
s7100-049
Tab
M
T
