Xerox Phaser 7100 Service Manual

General and Operation Overview
Xerox Internal Use Only Phaser 7100 Service Manual 1-47

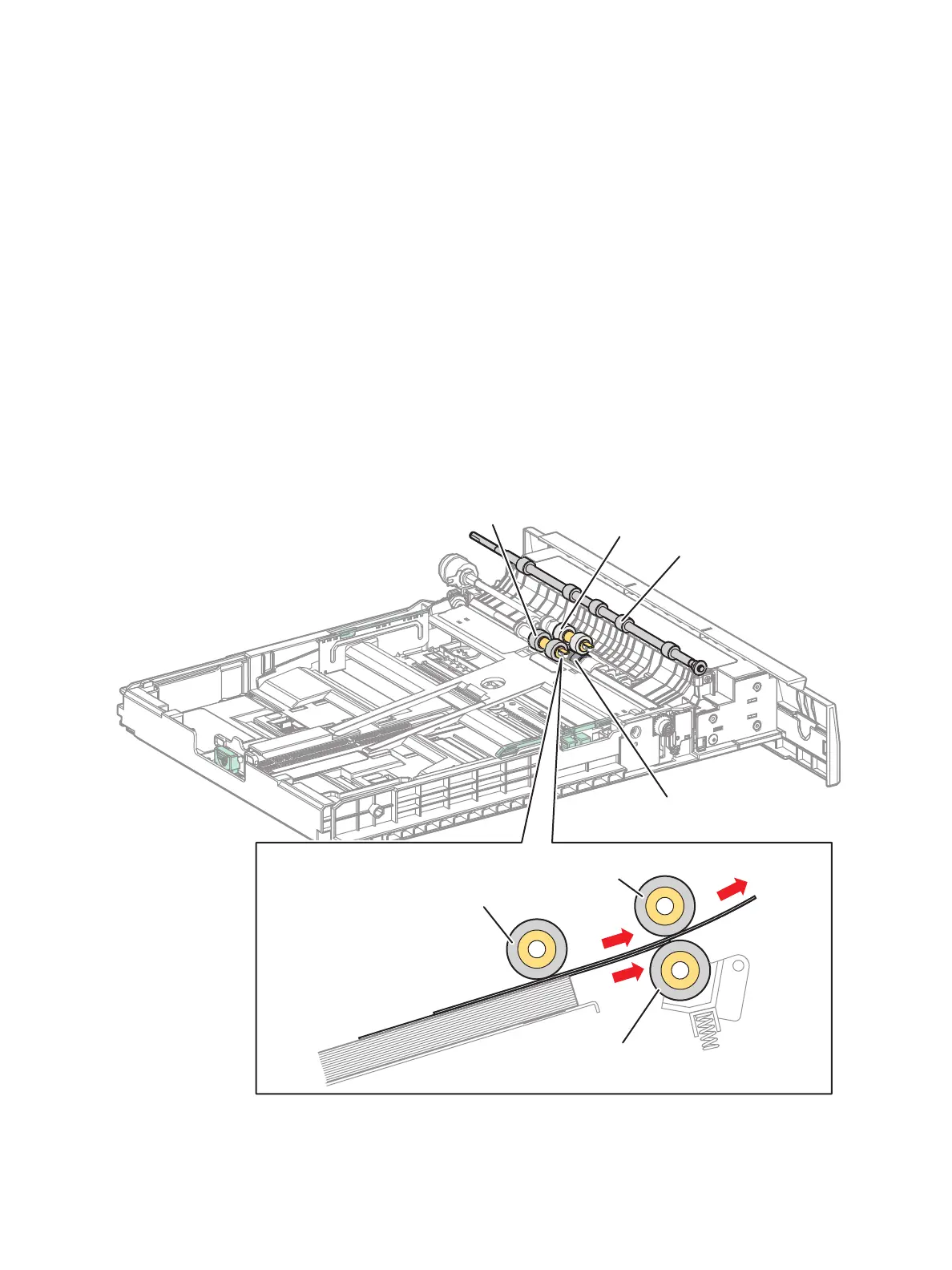

Feeding Paper from the Paper Tray
The paper loaded in the paper tray is transported towards the Feed Roller and Retard Roller by the
Nudger Roller and then transported towards the Turn Roller Assembly by the rotation of Feed Roller
and Retard Roller. The Nudger Roller and the Feed Roller rotate by the drive that is provided by the
Paper Handling Motor through the Feed Roller Clutch.
The Retard Roller is pushed by the spring pressure beneath it, and presses against the Feed Roller to
separate the paper by using rotation resistance.
When there is paper overlap, the brake force of the Torque Limiter that is linked to the Retard Roller
separates the top most paper from the rest and feeds it.
The Bottom Plate Assembly is a mechanism that works with the Gear attached to the side of the paper
tray. As long as the coupled Gear is not released, the device can maintain a specified position without
rising/descending. Paper is fed at this position.
When the top level of the paper stack drops as paper is being fed, the Nudger Roller descends, the
Lever releases the Gear, and the Bottom Plate Assembly rises.
Nudger Roller
Feed Roller
Turn Roller
Retard Roller
Nudger Roller
Feed Roller
Retard Roller
s7100-333

Xerox Phaser 7100 Specifications

General

Maximum Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 52, 000 pages
Processor	667 MHz
Memory (Standard)	256 MB
Paper Input Capacity (Maximum)	2, 050 sheets
Paper Output Capacity	250 sheets
Duplex Printing	Automatic
Type	Color Laser Printer
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Supported Media Sizes	A4, A5, B5, Letter, Legal
First Page Out (Black)	9 seconds
First Page Out (Color)	9 seconds
Print Languages	PCL 6, PostScript 3
Network Connectivity	Ethernet
Print Speed	Up to 30 ppm
