Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-92

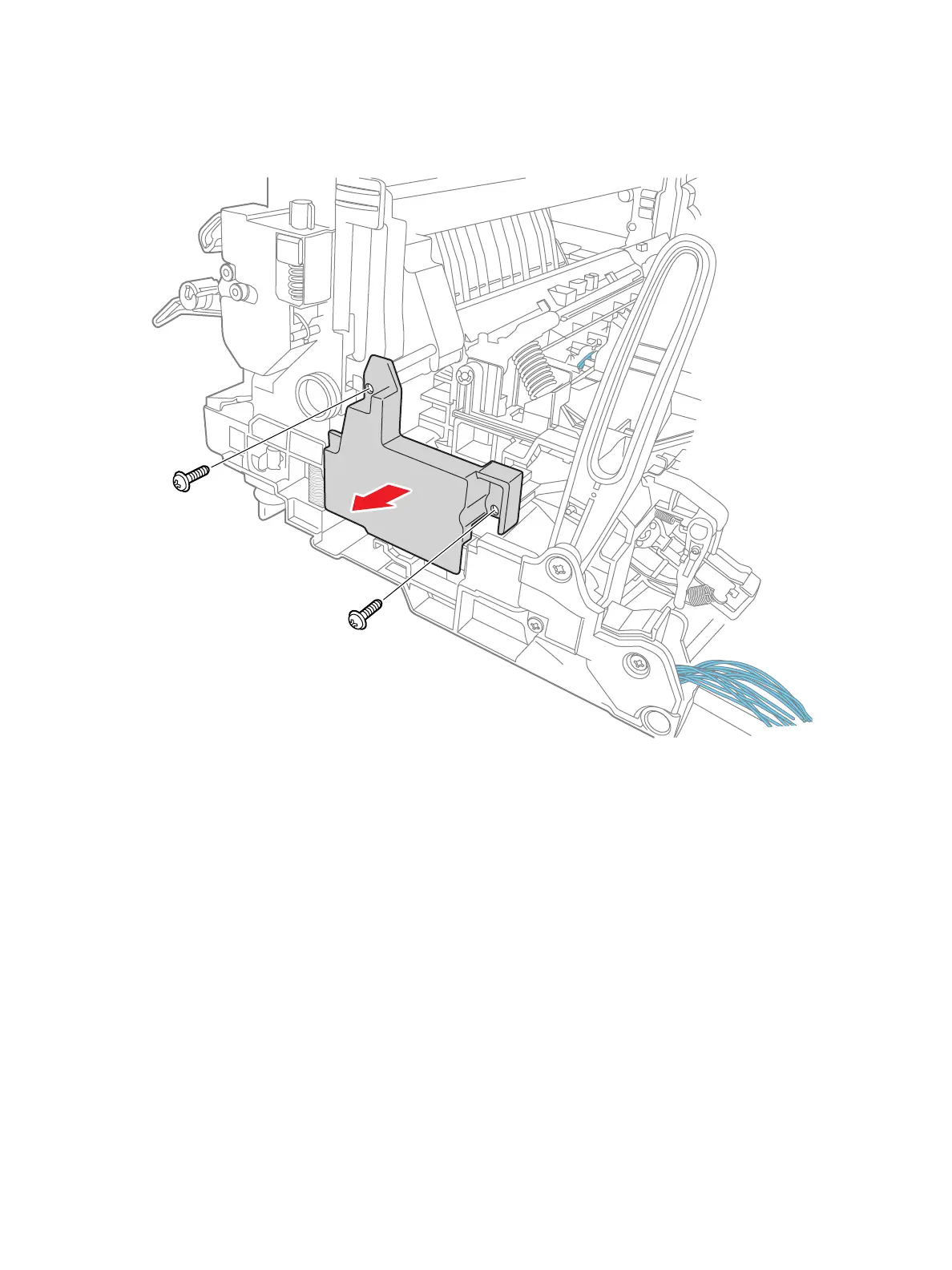

19. Remove 2 screws (silver, tapped, 8 mm) that secure the Right Harness Cover (PL 4.2.6) and remove
the Cover.
s7100-339
