Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-93
20. Remove 2 screws (silver, tapped, 8 mm) and one screw (silver, tapped, 12 mm) that secure the AC
Harness Cover (PL 4.2.8) and remove the Cover.
21. Remove the Front Right Support Arm (PL 4.2.5).
22. Remove the Right Arm Spring (PL 4.2.7).
23. Remove 3 screws (silver, tapped, 8 mm) and one screw (silver, tapped, 12 mm) that secure the AC
Cover (PL 4.2.12) and remove the Cover.
24. Remove the Front Left Support Arm (PL 4.2.13).

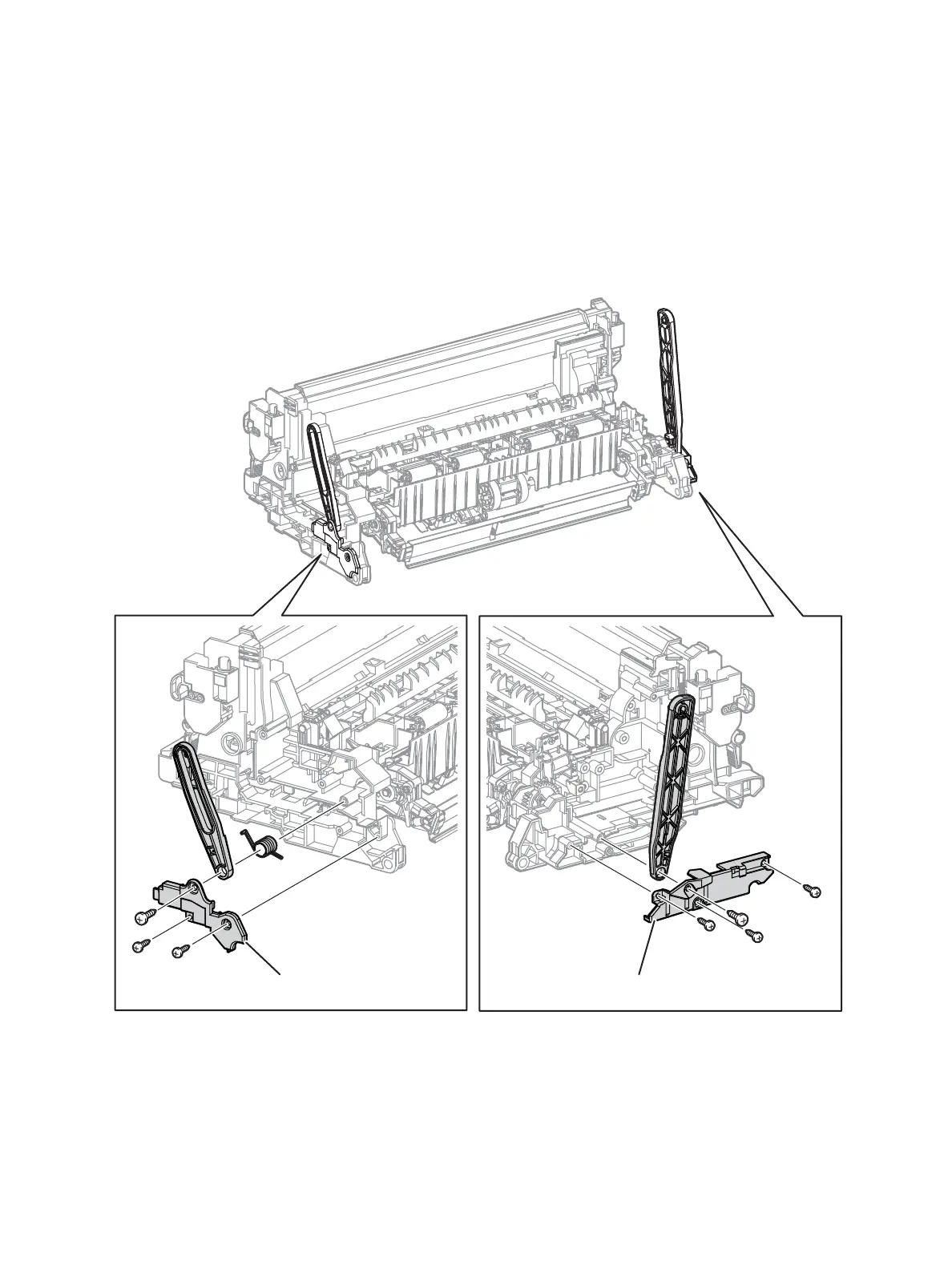

s7100-111
AC Harness Cover AC Cover
