Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-106

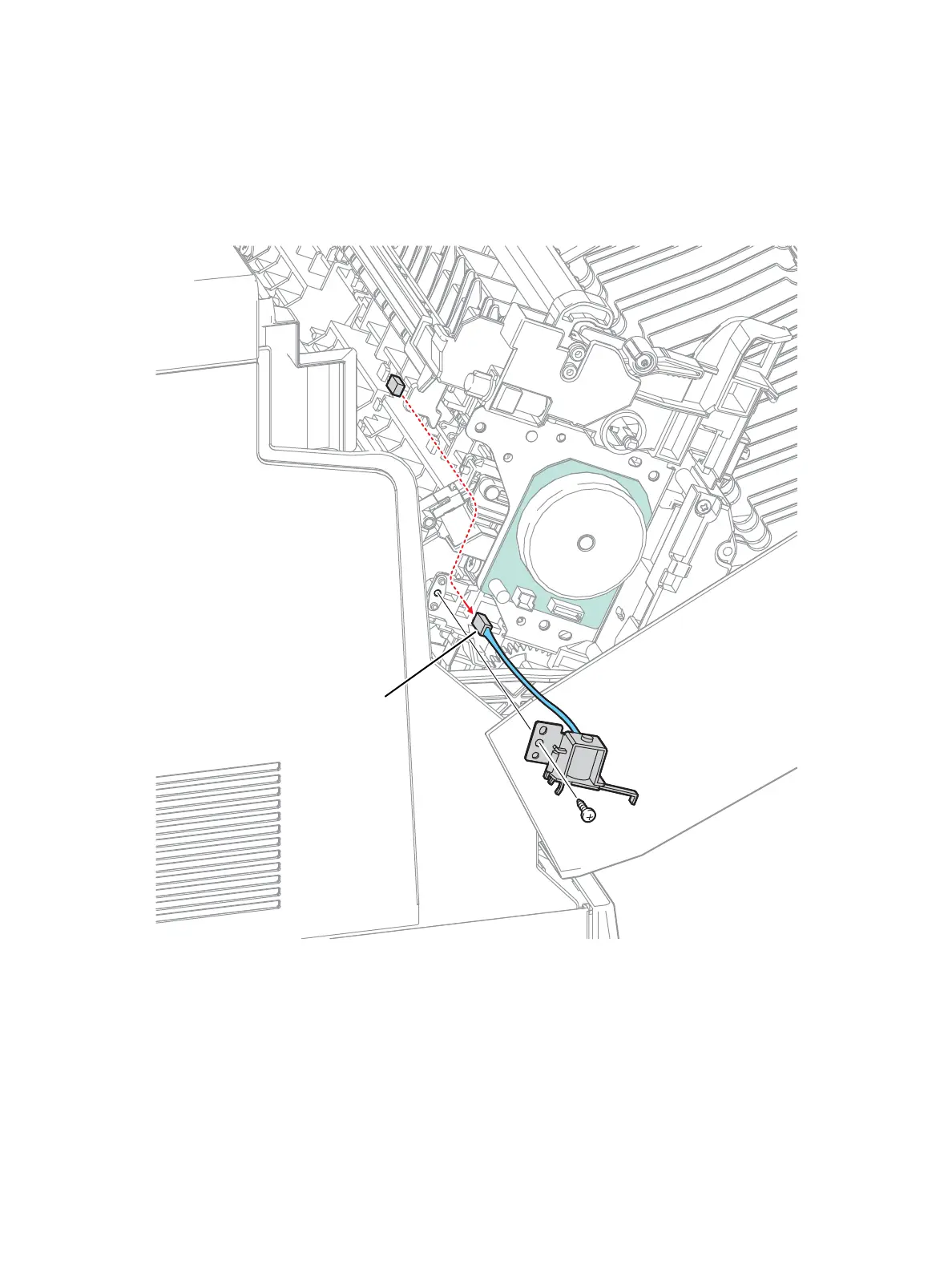

8. Disconnect the wiring harness connector P/J4753 that is connected to the Bypass Tray Feed
Solenoid.
9. Remove the harness that is connected to the Bypass Tray Feed Solenoid from the Harness Guide.
10. Remove one screw (silver, tapped, 8 mm) that secures the Bypass Tray Feed Solenoid to the Front
Frame Assembly and remove the Bypass Tray Feed Solenoid.
To Next Page
