Service Parts Disassembly

Xerox Internal Use Only Phaser 7100 Service Manual 4-107

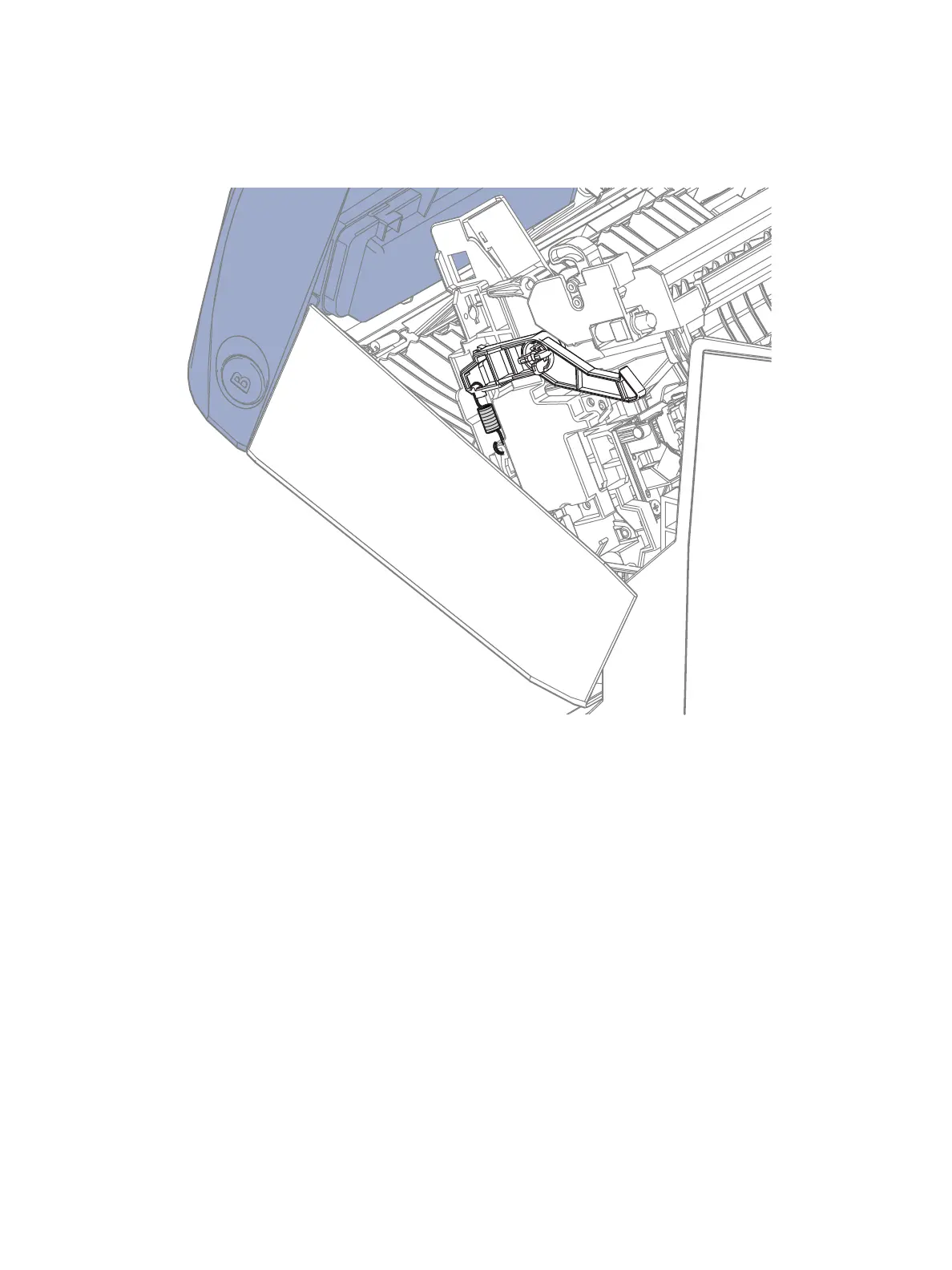

Replacement Note: Be sure to re-attach the Latch Spring (PL 4.2.4) to the Right Latch Lever (PL

4.2.3) if the Spring is not attached to the Lever.

s7100-204
