Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-138
Note: When opening/ closing the Lever in the following step, make sure to move it all the way until
it is latched. If this step is not performed correctly, it may cause the toner in the Developer
Housing Assembly to spill.

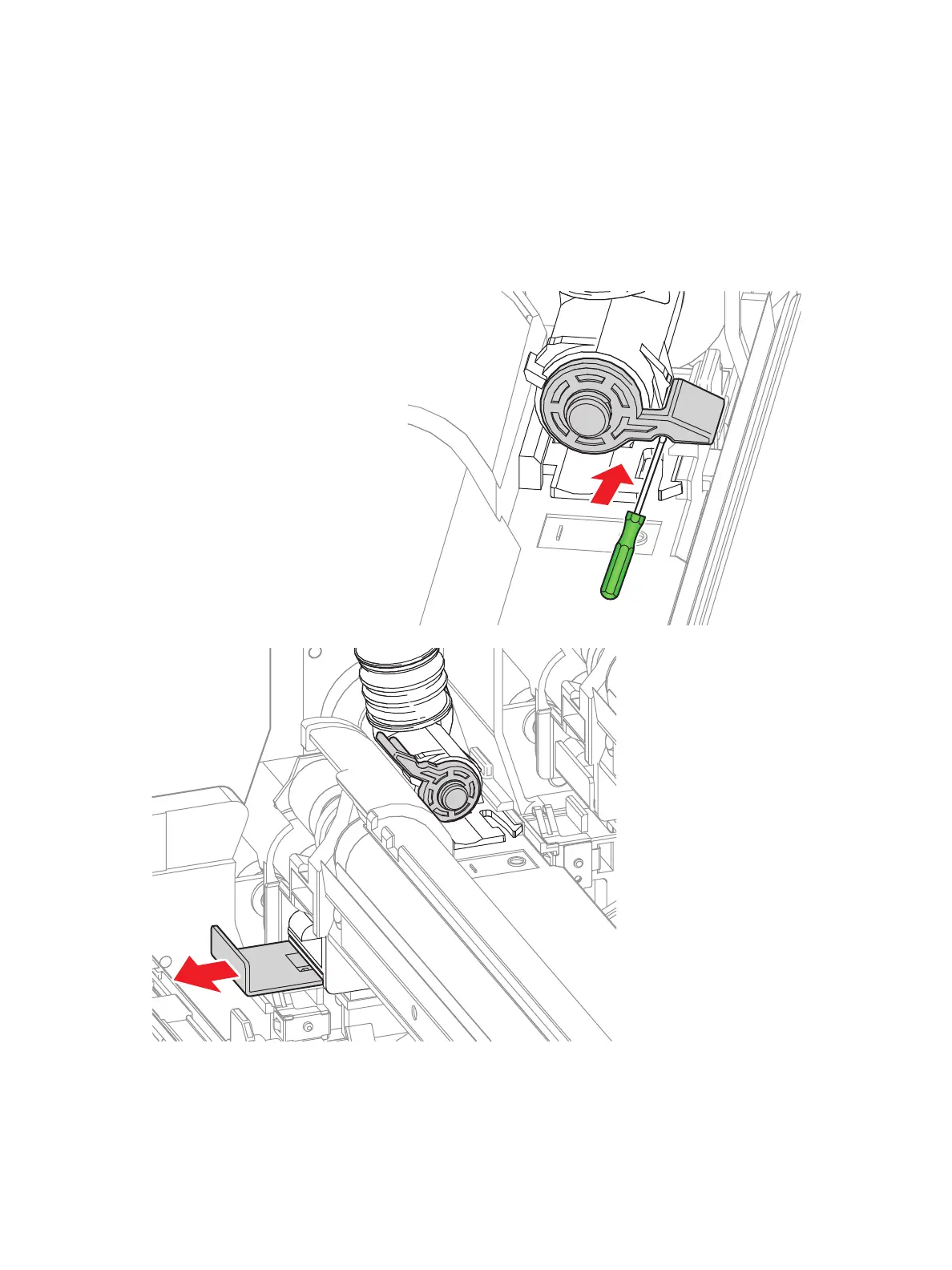

11. Use a flat tip screwdriver to close the Lever at the joint section of the Toner Dispenser.
12. Pull out and close the Shutter.
Figure 1
To Next Page
