15. Remove one screw (silver, tapped, 10 mm) and one screw (silver, 6 mm) that secure the Fan Holder
Duct Assembly (PL 12.2.20).
16. Release the wiring harness from the Fan Holder Duct Assembly.
17. Remove the Fan Holder Duct Assembly.
18. Disconnect the wiring harness connector P/J5231 that is connected to the Fan Holder Duct
Assembly.
19. Disconnect the wiring harness connector P/J4653B that is connected to the Waste Auger
Assembly (Trickle Guide Assembly).

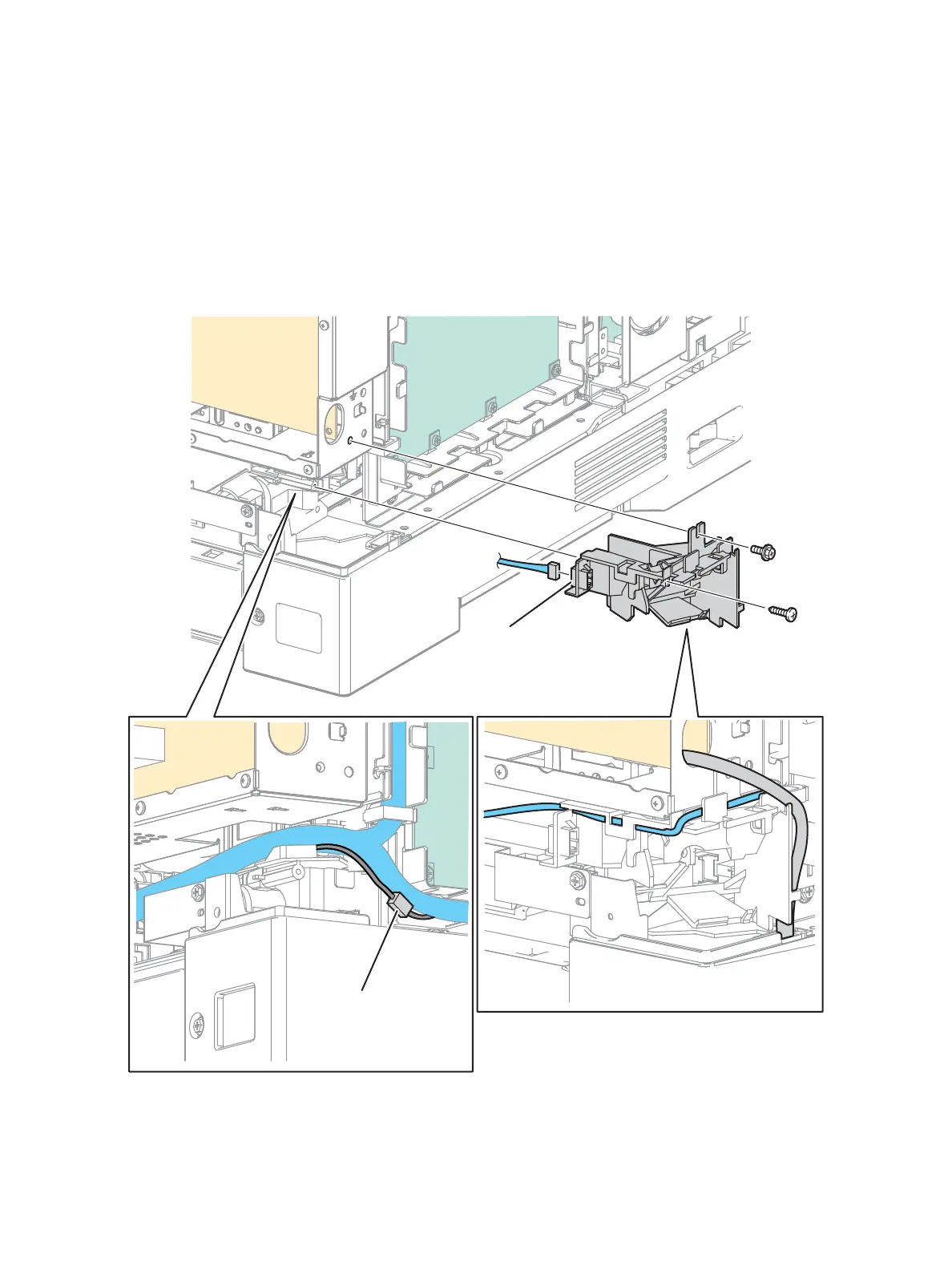

s7100-141
P/J5231
P/J4653B
