Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-146

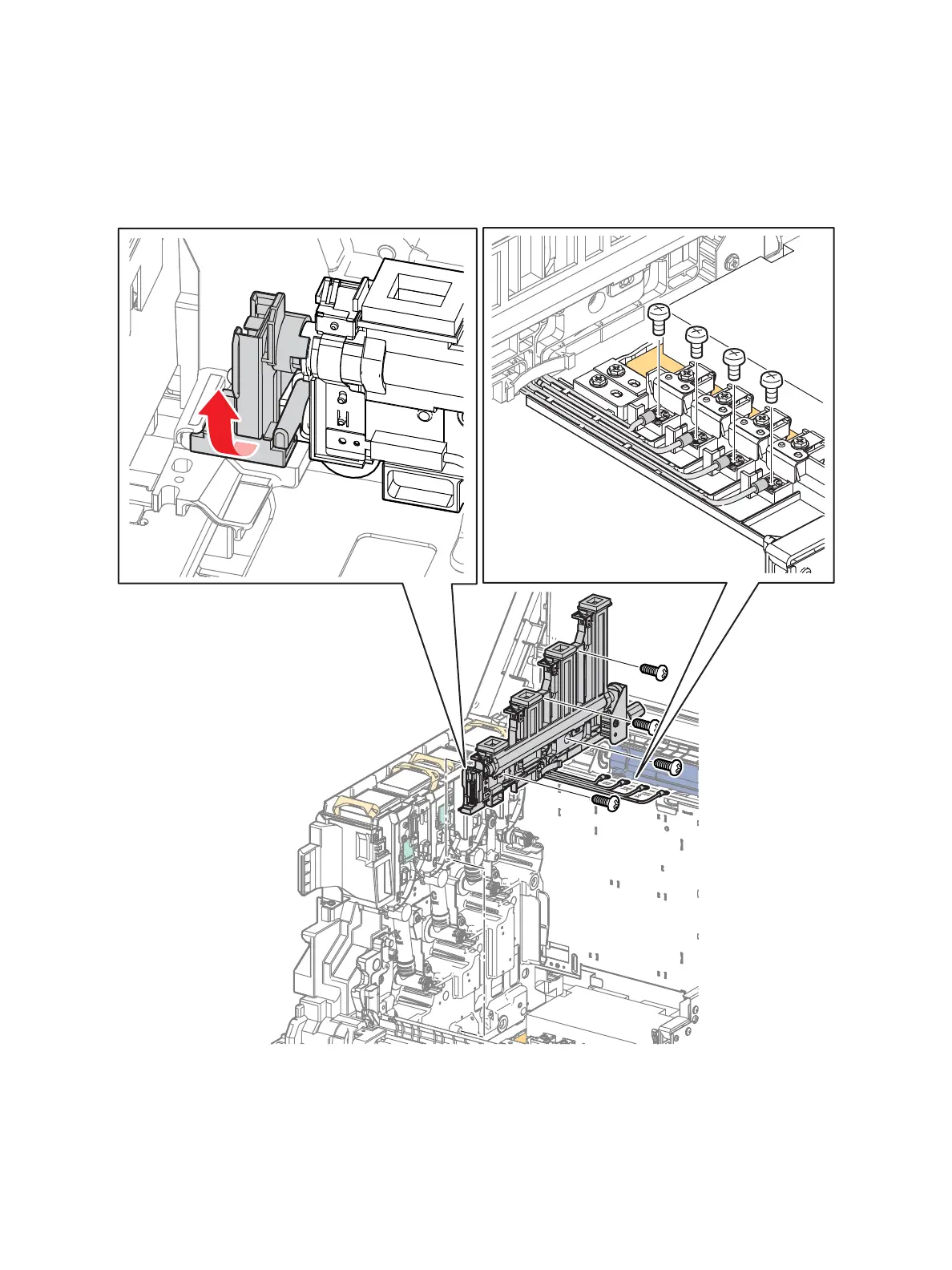

20. Remove 4 screws (silver, 6 mm) that secure the harness that is connected to the HV Main Guide
Assembly (PL 12.2.11).
21. Remove 4 screws (silver, 6 mm) that secure the Waste Auger Assembly to the printer.
22. Release the Waste Auger Assembly from the groove and pull it out to remove.
To Next Page
