Xerox Phaser 7100 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-147

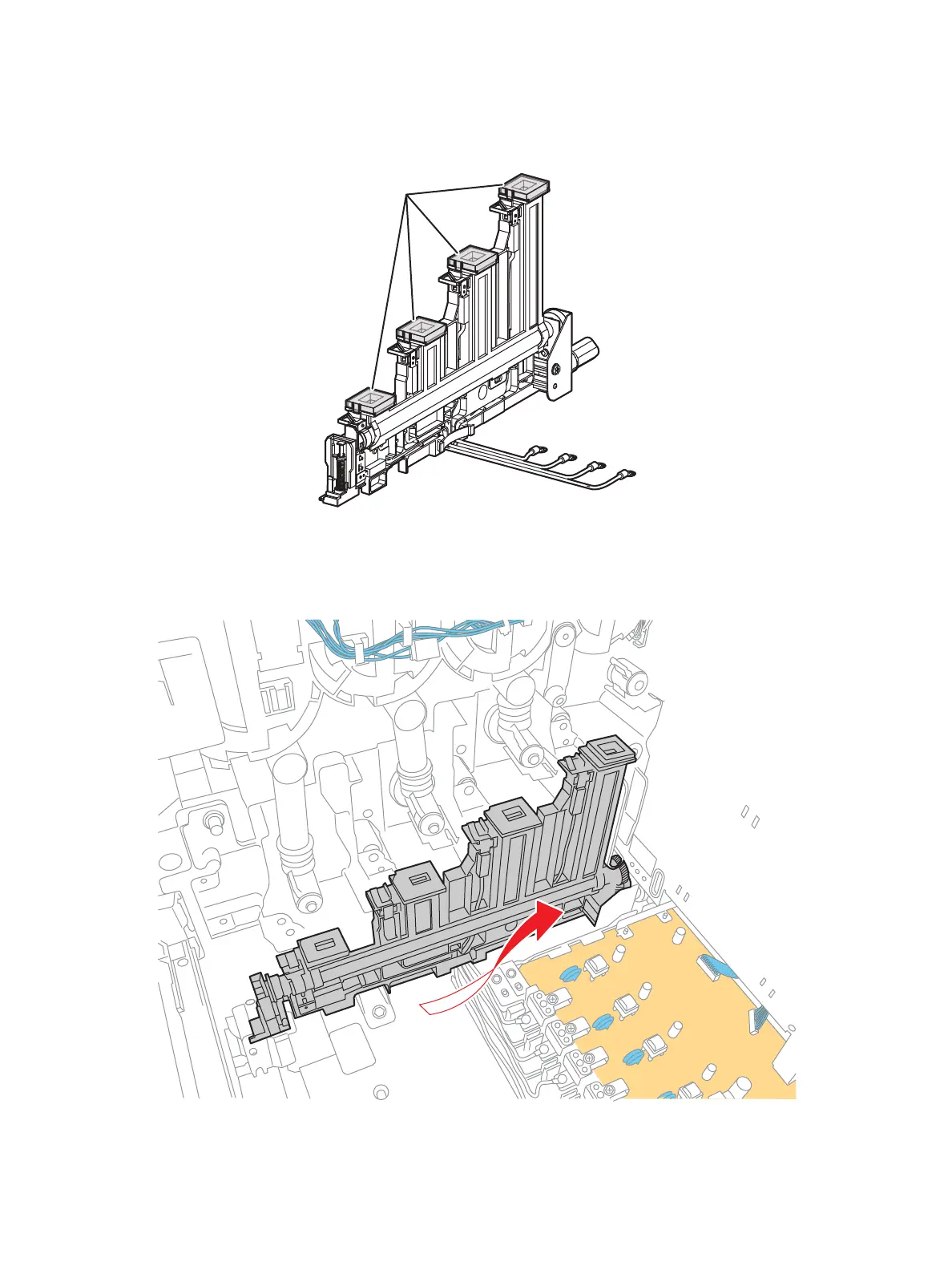

23. Use the Caps from the new Waste Auger Assembly to cover the removed Waster Auger Assembly
to prevent toner spill.
Replacement Note: Tilt the Waste Auger Assembly with the Motor and Gear toward the rear with
the Gear sits behind the printer frame.
Caps
s7100-457
s7100-412
