Service Parts Disassembly

Xerox Internal Use Only Phaser 7100 Service Manual 4-149

17. Disconnect one wiring harness connector P/J454 from the MCU PWB.

18. Disconnect the wiring harness connector P/J4522.

19. Release the wiring harness from the clamp.

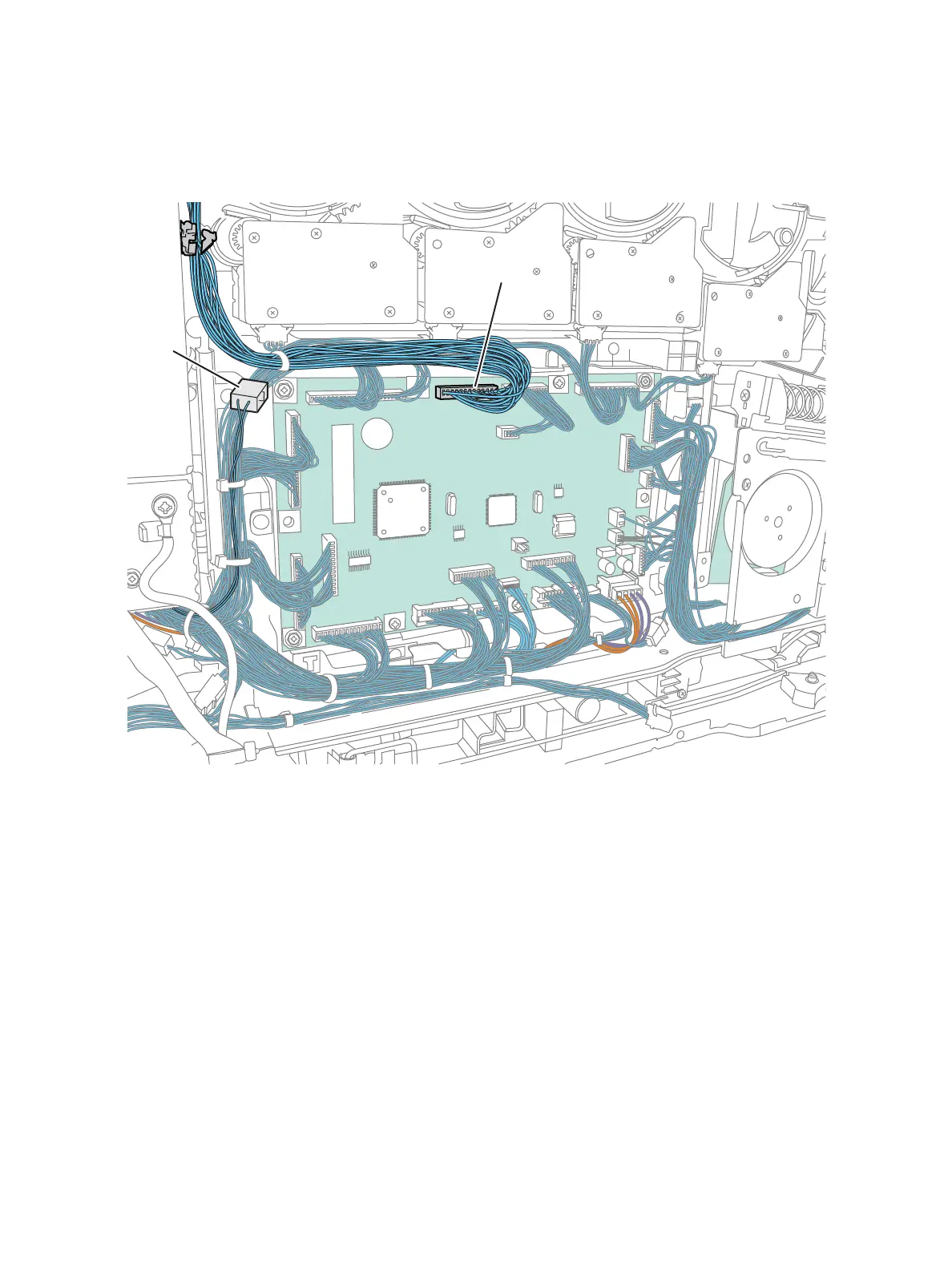

s7100-344

P/J454

P/J4522
