Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-150

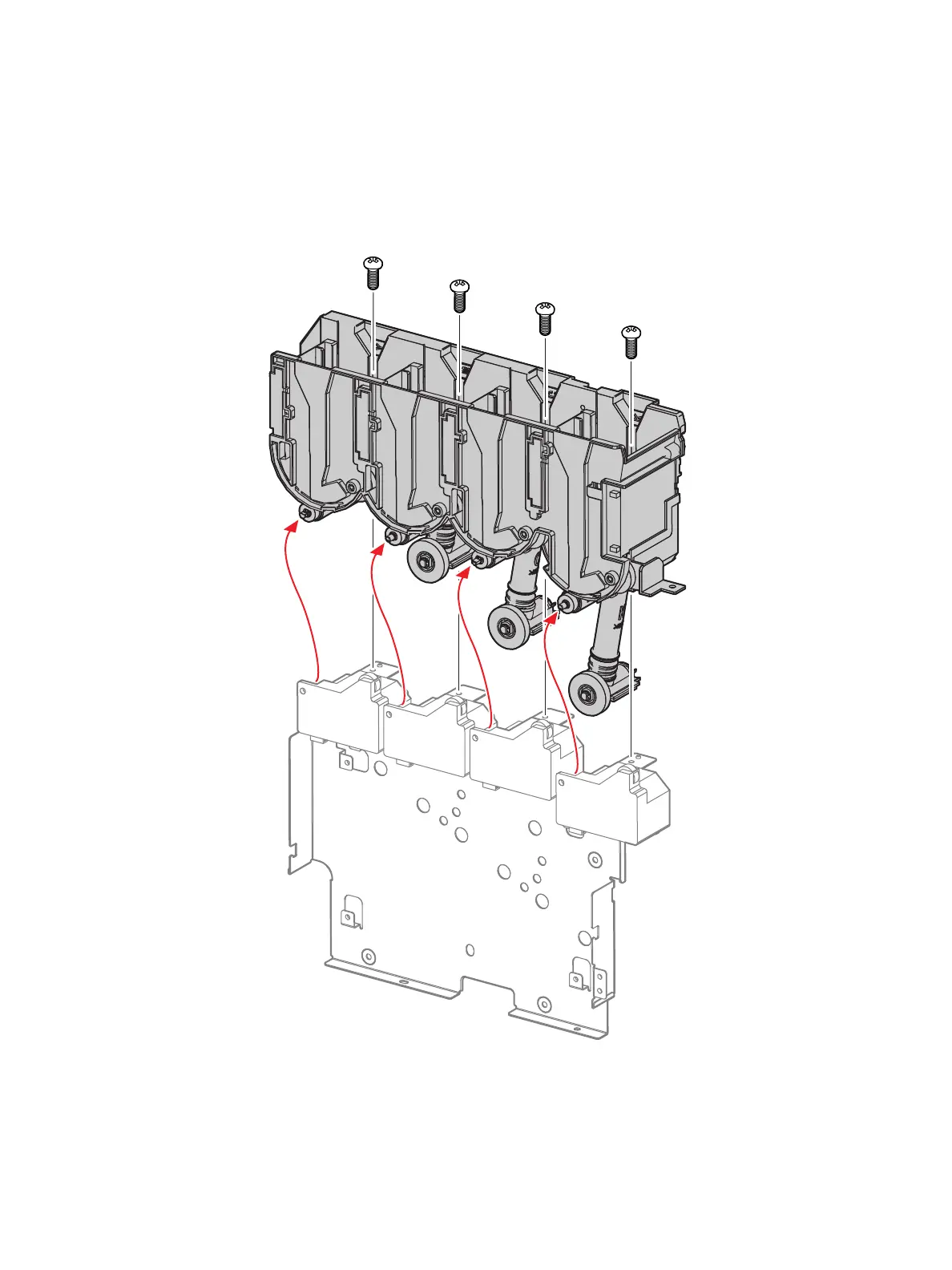

20. Remove 4 screws (silver, 6 mm) that secure the Dispense Guide Assembly to the MCU Plate.
Note: When removing the Dispense Guide Assembly in the next step, be careful when handling
the Developer Housing Assembly to prevent from spilling toner from the Toner Dispenser.
21. Release the 4 bosses of the Dispense Guide Assembly from the hole of the Dispense Motor
Assembly (PL 8.1.15) and remove the Dispense Guide Assembly.
To Next Page
