Xerox Phaser 7100

Service Parts Disassembly
Phaser 7100 Service Manual Xerox Internal Use Only4-178

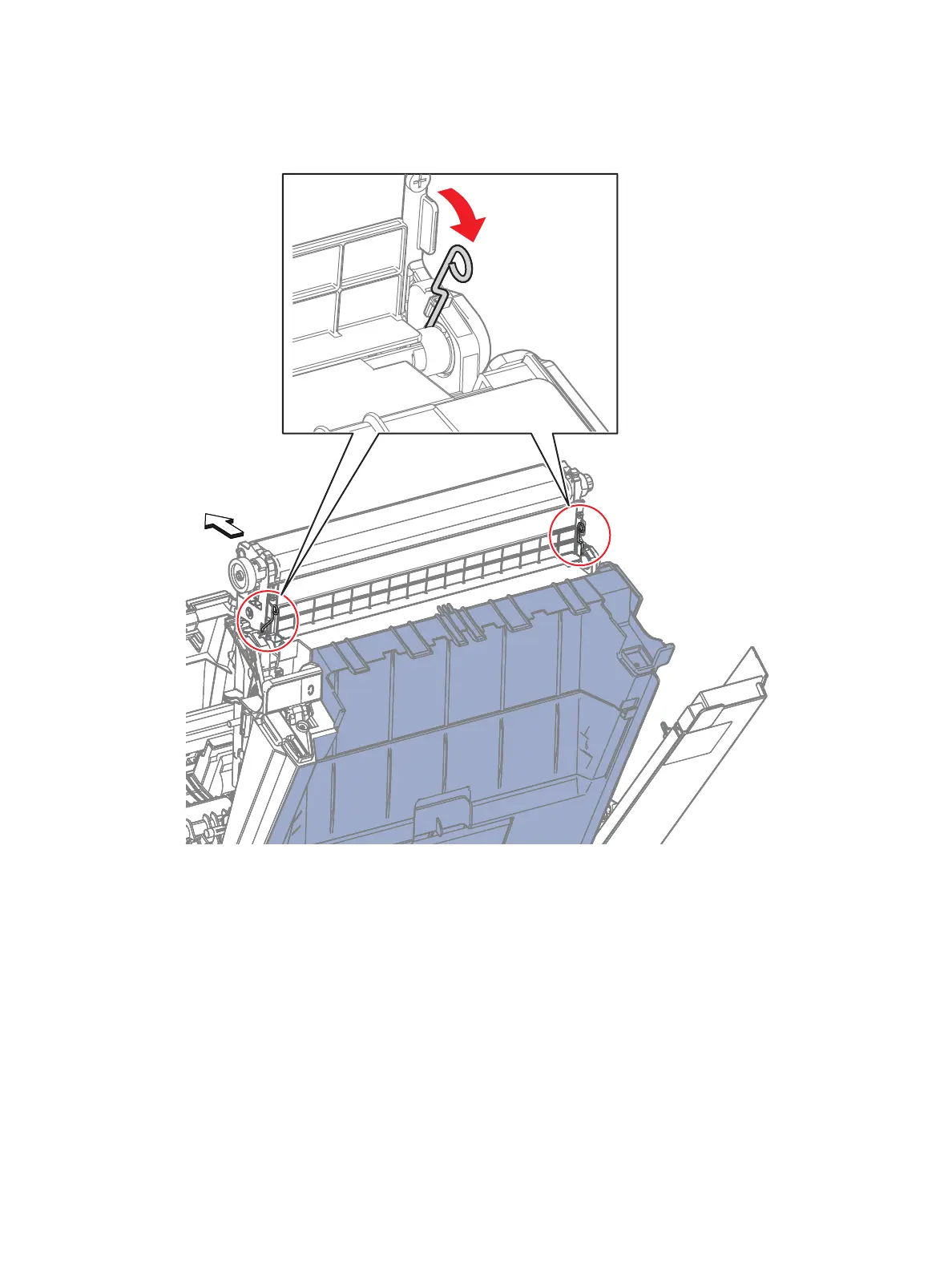

4. Release the Springs from the Top Frame prior to opening the Top Cover Assembly. This allows to
perform the removal procedure easier.
5. Remove the Imaging Unit (Y/ M/ C/ K) (REP 6.0 Imaging Unit (Y/ M/ C/ K) on page 4-121).
s7100-268
Front
