Service Parts Disassembly
Xerox Internal Use Only Phaser 7100 Service Manual 4-191

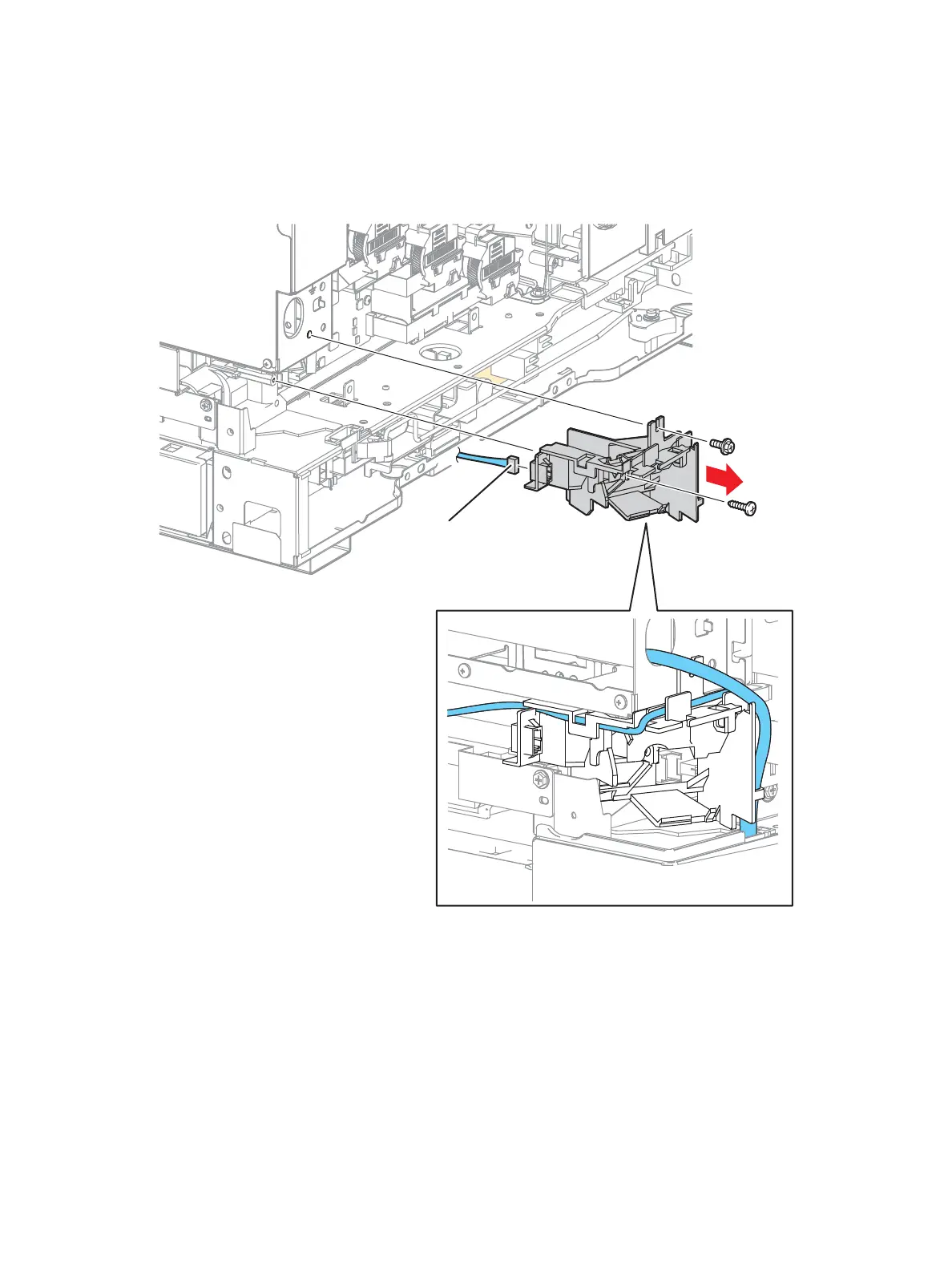

18. Remove one screw (silver, tapped, 8 mm) and one screw (silver, 6 mm) that secure the Harness
Guide Duct (PL 12.2.23).
19. Disconnect the wiring harness connector P/J5231that is connected to the Harness Guide Duct.
20. Remove Harness Guide Duct.
s7100-222
P/J5231
(Plastic)
To Next Page
