Service Parts Disassembly

Phaser 7100 Service Manual Xerox Internal Use Only4-192

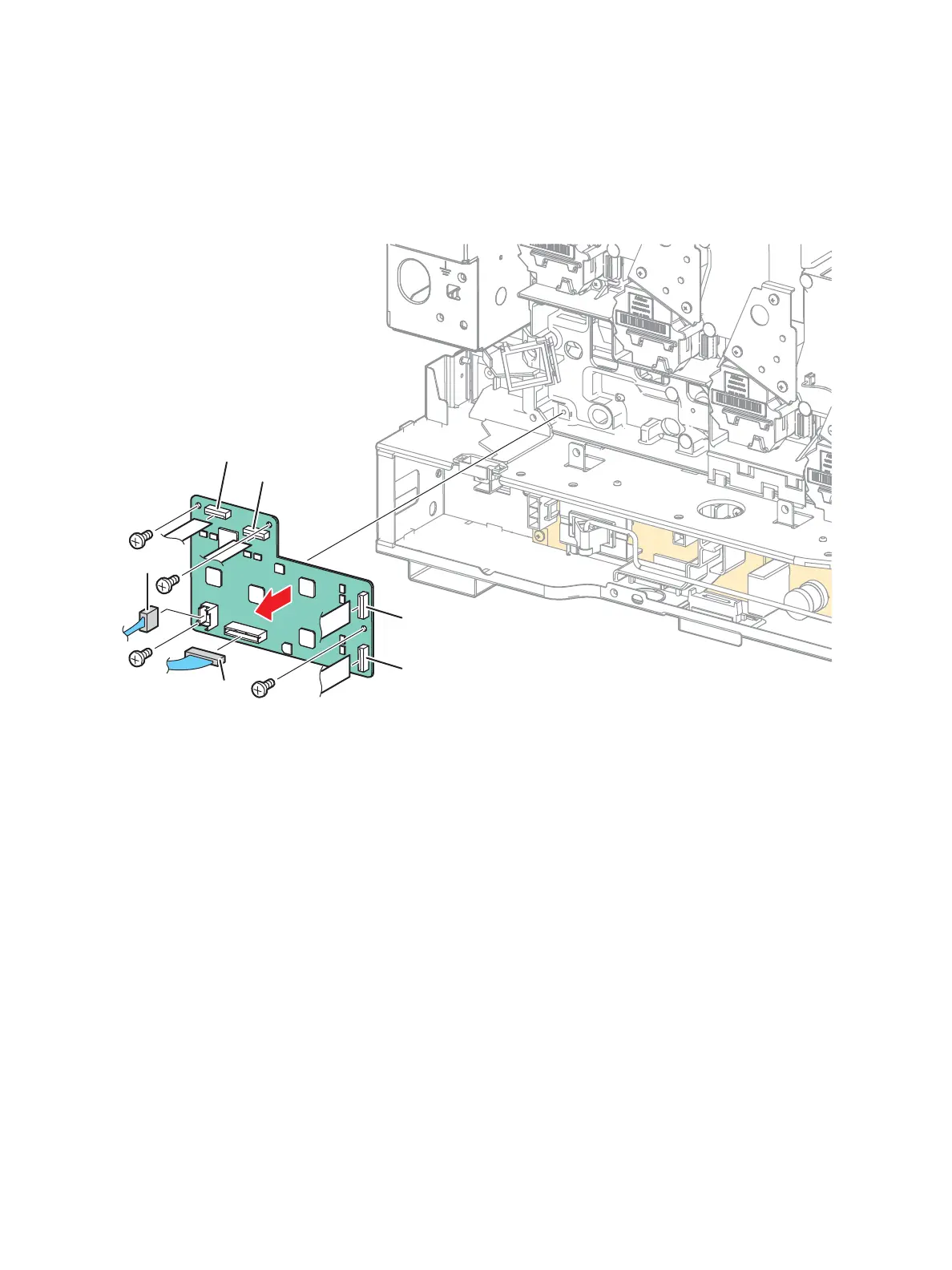

21. Disconnect the Flat Cable connectors (P/J105, P/J106, P/J107, P/J108) that are connected to the

Developer Motor PWB.

22. Remove 4 screws (silver, 6 mm) that secure the Developer Motor PWB to the printer.

23. Disconnect 2 wiring harness connectors P/J5241 and P/J4741 that are connected to the

Developer Motor PWB and remove the Developer Motor PWB.

s7100-223

P/J105

P/J106

P/J107

P/J108

P/J4741

P/J5241
