6. Remove the 2 E-rings that secure the Left Stopper Hinge Shaft (PL 13.1.12).
CAUTION: When freeing the Left Rear Torsion Spring towards you, take extra care with the
operation as the Spring contains strong force.
7. While freeing the Left Rear Torsion Spring towards you, pull out the Left Stopper Hinge Shaft to
remove the Shaft.
8. Remove the E-ring that secures the Left Hinge Shaft.
9. Pull out and remove the Hinge Shaft.
10. Remove the Left Arm Plate Hinge.
11. Remove the Right Arm Plate Hinge by performing the same steps 6 to 10.

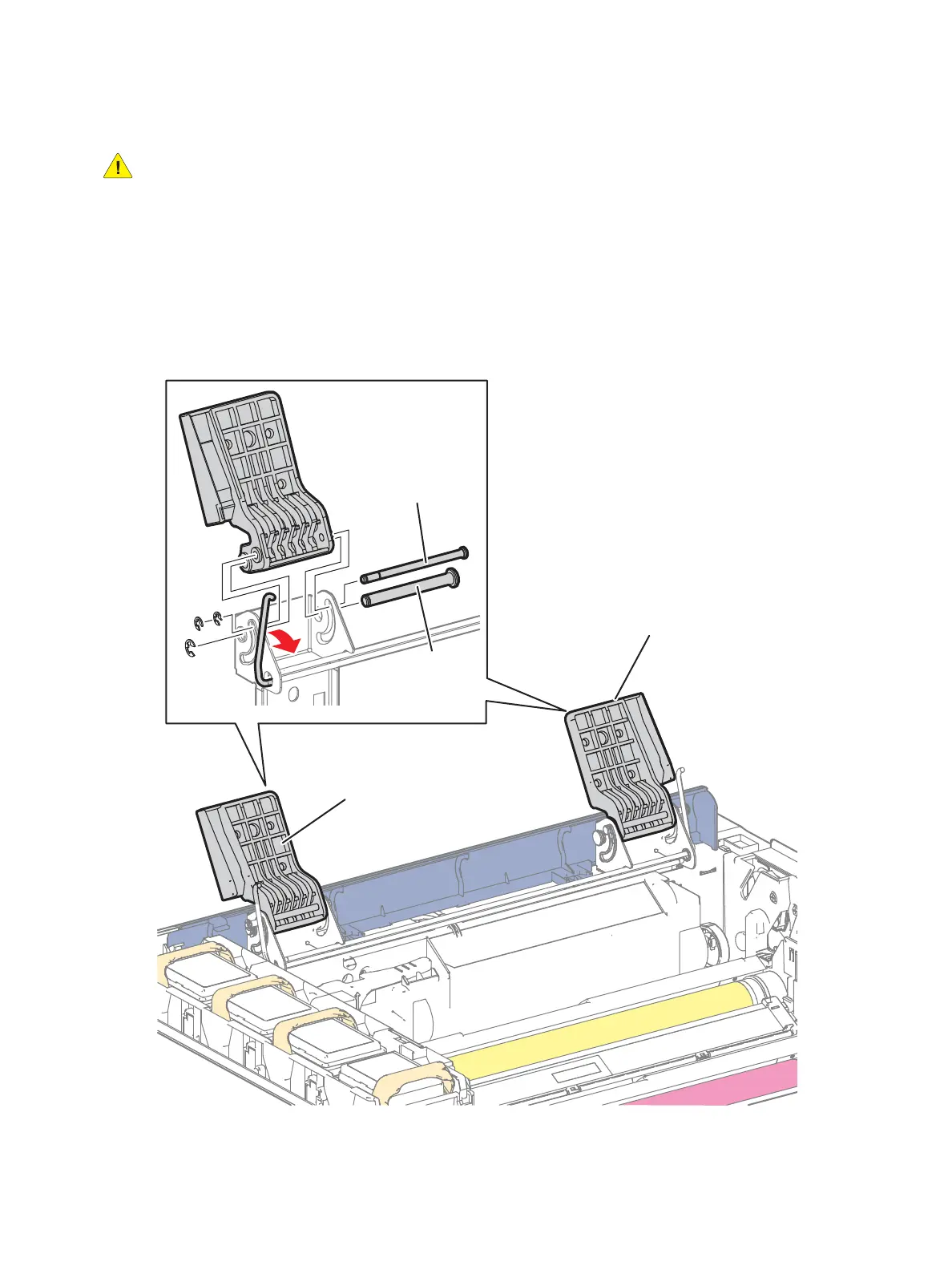

s7100-398
Stopper Hinge Shaft
Left Arm Plate Hinge
Right Arm Plate Hinge
Hinge Shaft
