Xerox Phaser 7100

General and Operation Overview
Xerox Internal Use Only Phaser 7100 Service Manual 1-49

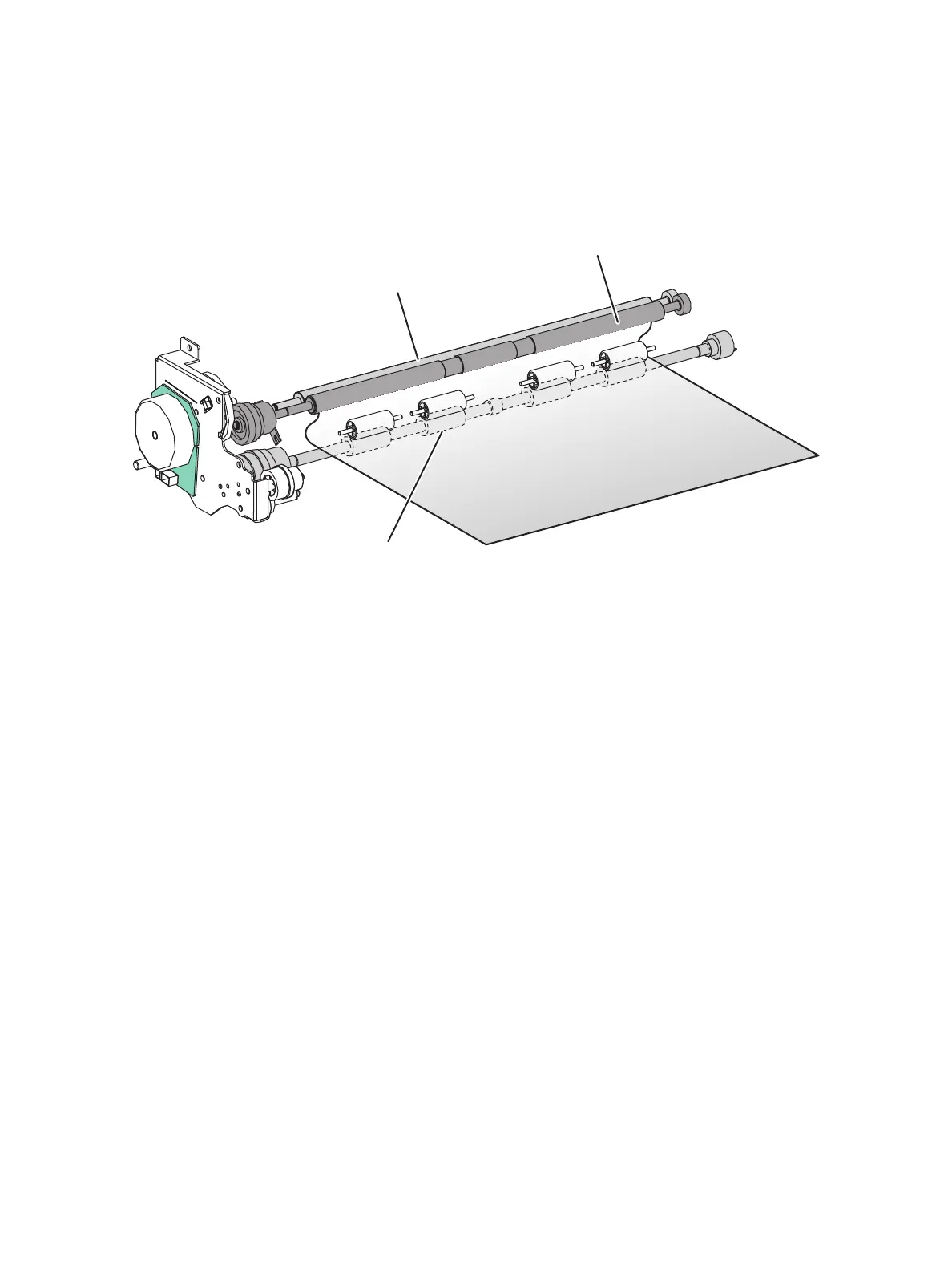

Transportation of Paper Through the Registration Section
Paper fed from Tray 1 or the Bypass Tray is transported to the Registration section by the Bypass Tray
Turn Roller. The Bypass Tray Turn Roller rotates by the drive from the Paper Handling Motor through the
Turn Roller Clutch.
s7100-428
Metal Registration Roller
Rubber Registration Roller
Bypass Tray Turn Roller
