Paper Lead Edge Adjustment

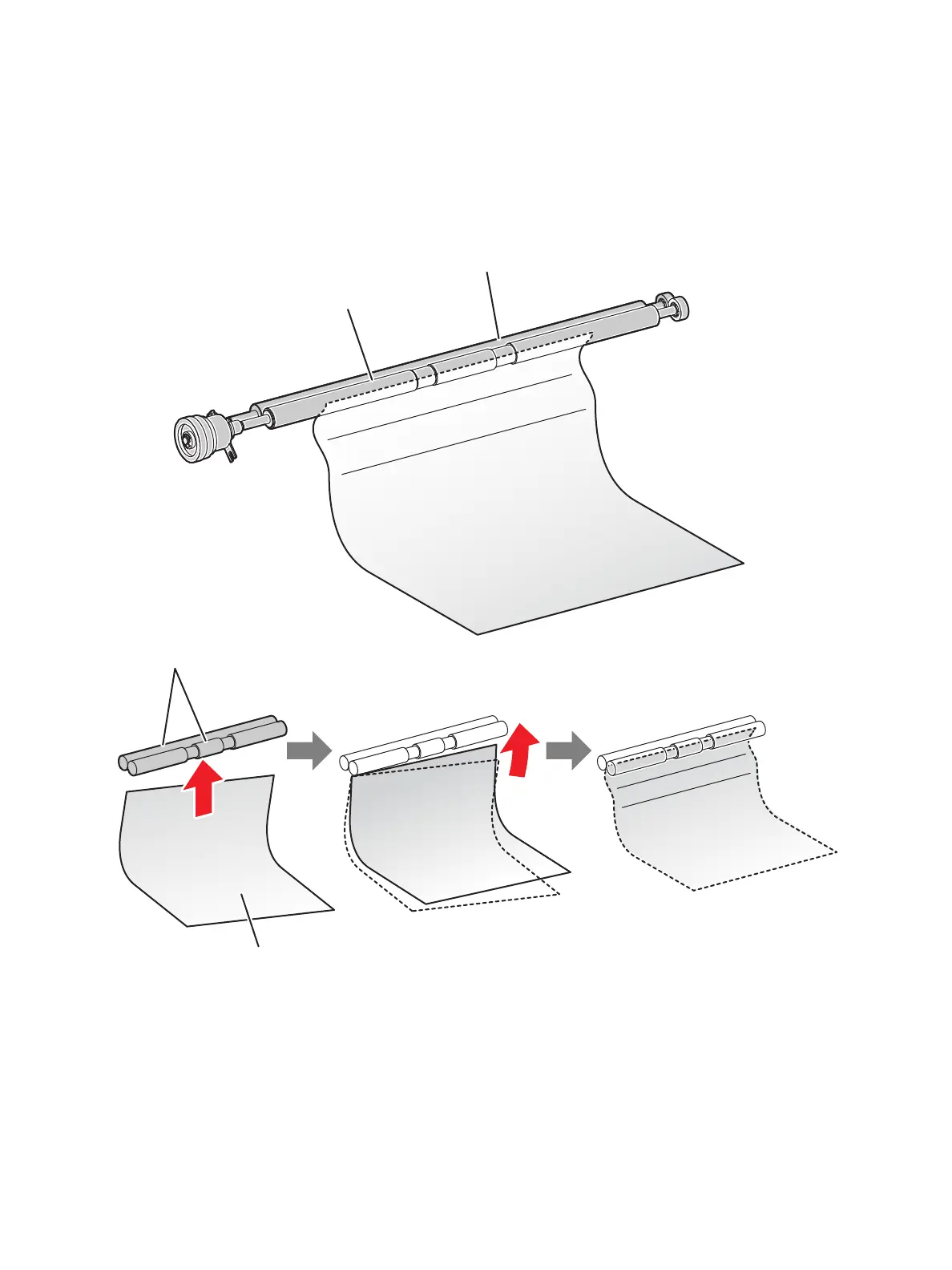

When paper is fed to the Toner Transfer section, the registration of the sheet may not be correct due to
leading edge misalignment. To avoid this, the leading edge is aligned at the registration rollers before
the sheet is fed across the Transfer Belt, or in front of the BTRs. The leading edge of the sheet reaches
registration and is fed to the toner transfer section (Transfer Roller).
s7100-187
Rubber Registration Roller
Metal Registration Roller
Registration Rollers
Skewed Paper
