1.8.4.5 TA526 - Wall Mounting Accessory

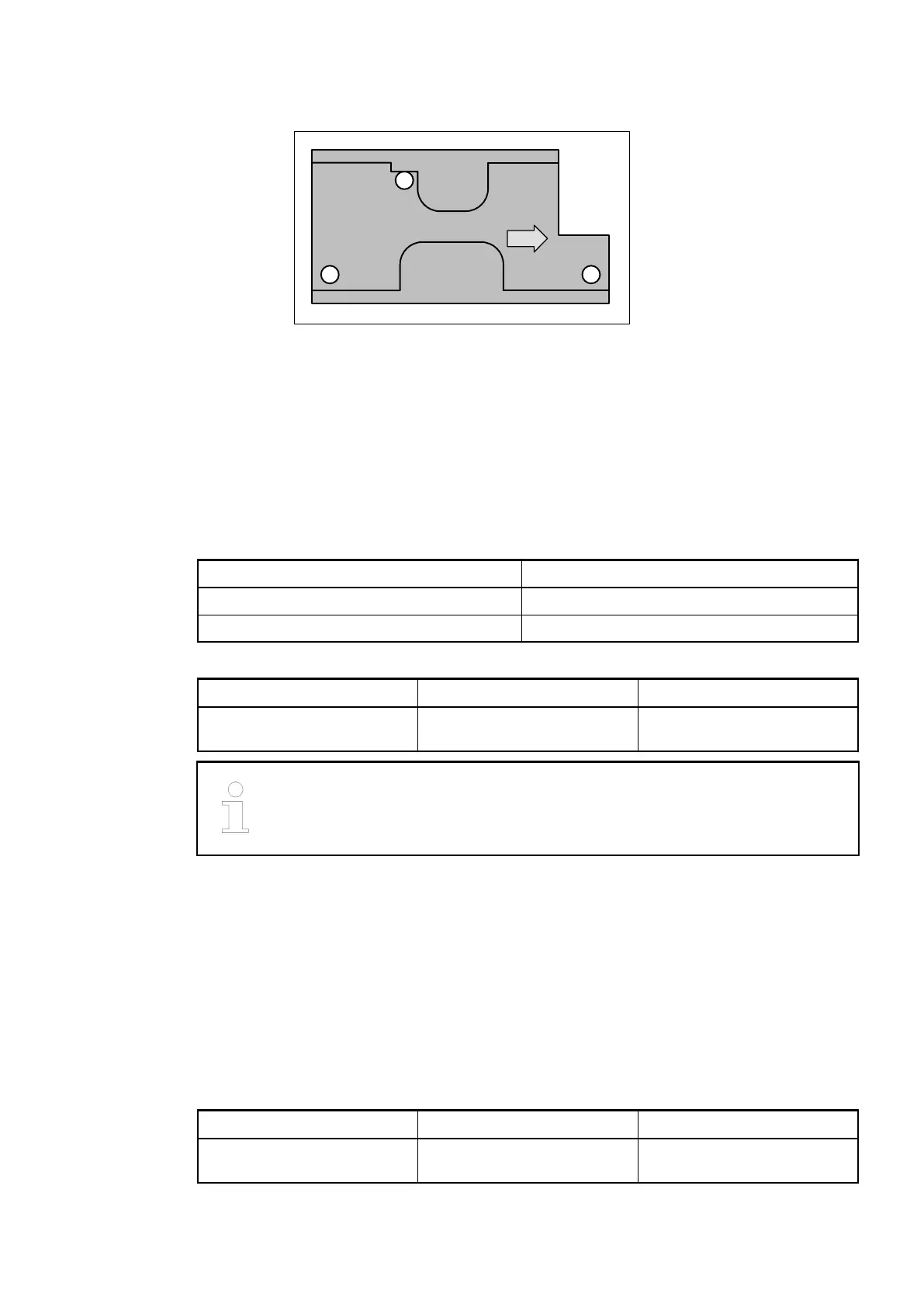

If a terminal base TB5xx or a terminal unit TU5xx should be mounted with screws, the wall
mounting accessories TA526 must be inserted at the rear side first. This plastic parts prevent
bending of terminal bases and terminal units while screwing up.
Handling of the wall mounting accessory is described in detail in the section Mounting and Dis-
assembling the Terminal Unit
Ä
“Mounting with Screws” on page 1264 and Mounting/Disassem-
bling Terminal Bases and Function Module Terminal Bases
Ä
“Mounting with Screws”
on page 1262.
Parameter Value
Weight 5 g
Dimensions 67 mm x 35 mm x 5,5 mm
Part No. Description Product Life Cycle Phase *)
1SAP 180 800 R0001 TA526, wall mounting acces-
sory
Active
*) For planning and commissioning of new installations use modules in Active
status only.
1.8.4.6 TA535 - Protective Caps for XC Devices
Accessory to cover unused connectors of XC devices in salt mist environments.
One TA535 package includes 3 different cap types (20 pieces per type):
● Cap for RJ45 connectors
● Cap for 9-pole D-sub connector
● Cap for FieldBusPlug connector
Protection should be done for all unused slots of -XC devices.
Part No. Description Product Life Cycle Phase *)
1SAP 182 300 R0001 TA535, Protective Caps for
XC devices, 20 x 3 pieces
Active
Purpose
Handling
Instructions
Technical Data
Ordering Data
Purpose
Ordering Data
2019/04/173ADR010121, 13, en_US1172
