ABB AC500 PLC - Technical Data of the Fast Counter; Ordering Data; 1.5.1.2.3 DC532 - Digital Input;Output Module

UPx (+24 V)
Digital input/output
ZPx (0 V)
for demagnitization when inductive
loads are switched off

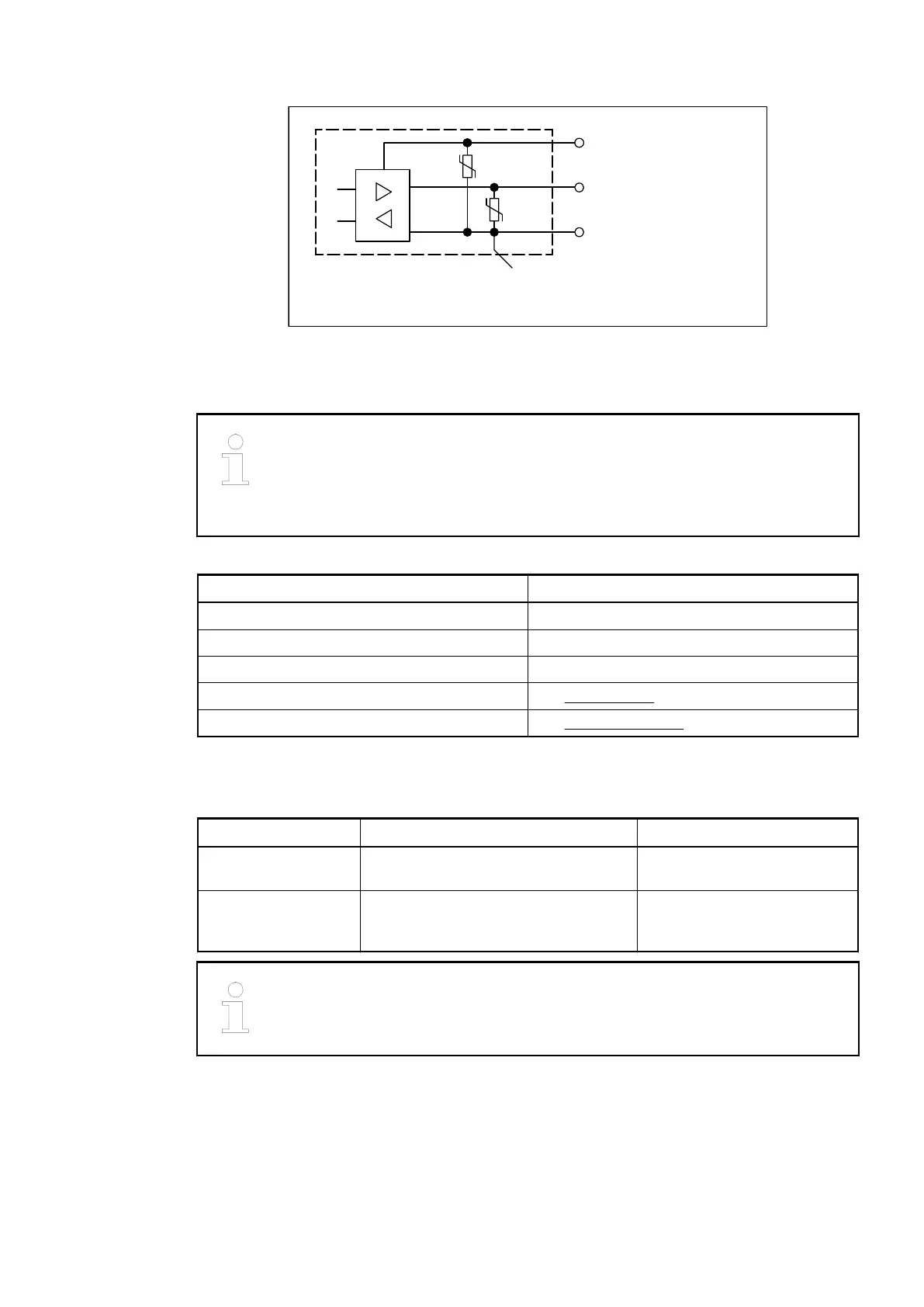

Technical Data of the Fast Counter
The fast counter of the module does not work if the module is connected to a
– FBP interface module
– CS31 bus module
– CANopen bus module
Parameter Value
Used inputs C16 / C17
Used outputs C18
Counting frequency Max. 50 kHz
Detailed description See Fast Counter
Operating modes See Operating modes
Ordering Data
Part No. Description Product Life Cycle Phase *)
1SAP 240 500 R0001 DC523, digital input/output module,
24 DC, 24 VDC / 0.5 A, 1-wire
Active
1SAP 440 500 R0001 DC523-XC, digital input/output
module, 24 DC, 24 VDC / 0.5 A,
1-wire, XC Version
Active
*) For planning and commissioning of new installations use modules in Active
status only.
1.5.1.2.3 DC532 - Digital Input/Output Module
● 16 digital inputs 24 VDC, 16 configurable digital inputs/outputs
● Module-wise electrically isolated
● Fast counter
● XC version for use in extreme ambient conditions available
Device Specifications
I/O Modules > Digital I/O Modules
2019/04/17 3ADR010121, 13, en_US 321
