2.6.2.3 Mechanical Dimensions S500

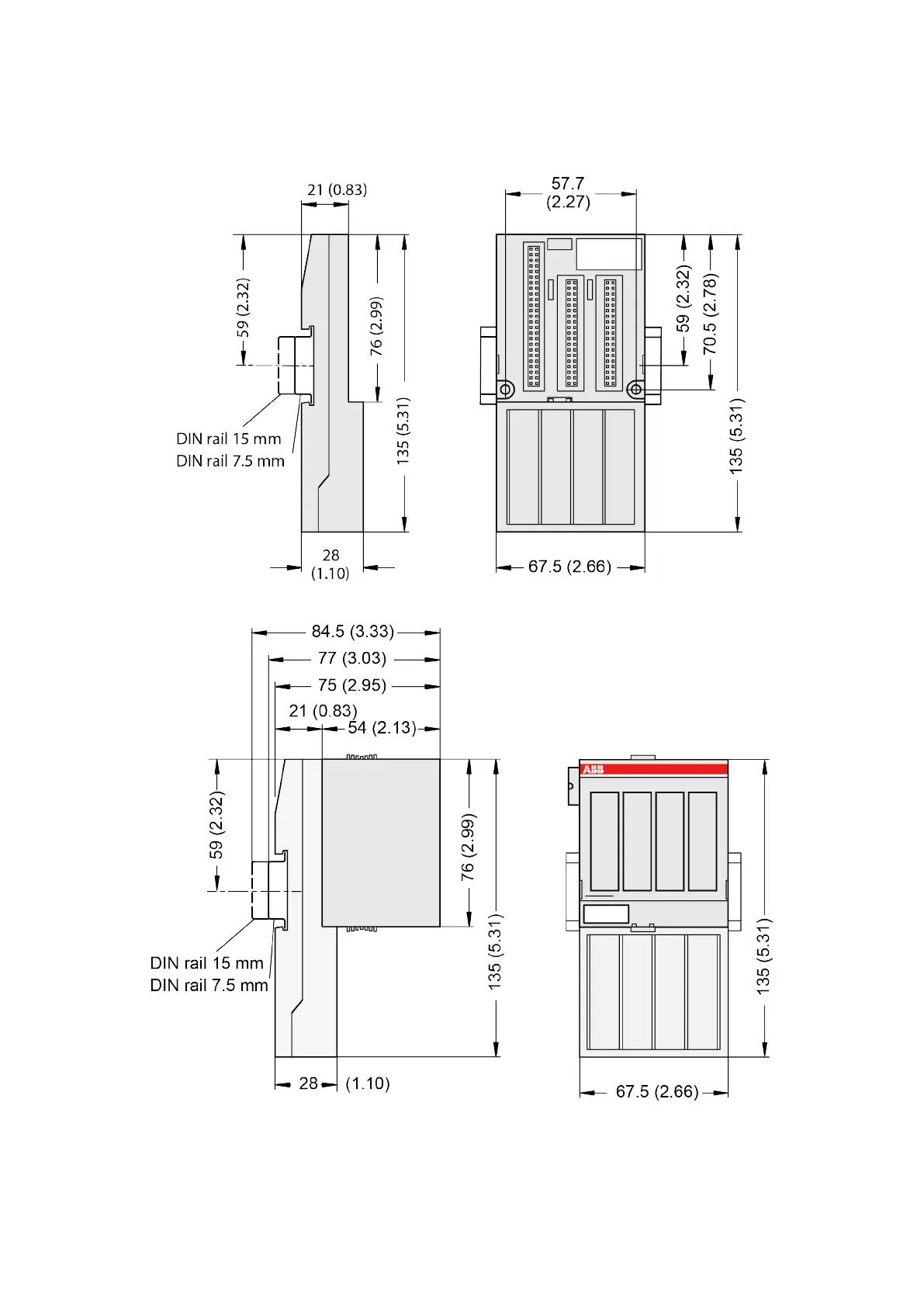

Fig. 220: Terminal Units, side view and front view
Fig. 221: Terminal Units and S500 modules, side view and front view
Dimensions:
Terminal Units
System Assembly, Construction and Connection
AC500 (Standard) > Mechanical Dimensions
2019/04/17 3ADR010121, 13, en_US 1259
