ABB AC500 PLC - 2.5.5.9 TA566 - Wall Mounting Accessory

Part No. Description Product Life Cycle Phase *)
1TNE 968 901 R3101 Terminal Block TA563-9, 9-
pole, screw front, cable side, 6
pieces per unit
Active
1TNE 968 901 R3102 Terminal Block TA563-11, 11-
pole, screw front, cable side, 6
pieces per unit
Active
1TNE 968 901 R3103 Terminal Block TA564-9, 9-
pole, screw front, cable front,
6 pieces per unit
Active
1TNE 968 901 R3104 Terminal Block TA564-11, 11-
pole, screw front, cable front,
6 pieces per unit
Active
1TNE 968 901 R3105 Terminal Block TA565-9, 9-
pole, spring front, cable front,
6 pieces per unit
Active
1TNE 968 901 R3106 Terminal Block TA565-11, 11-
pole, spring front, cable front,
6 pieces per unit
Active
*) For planning and commissioning of new installations use modules in Active
status only.

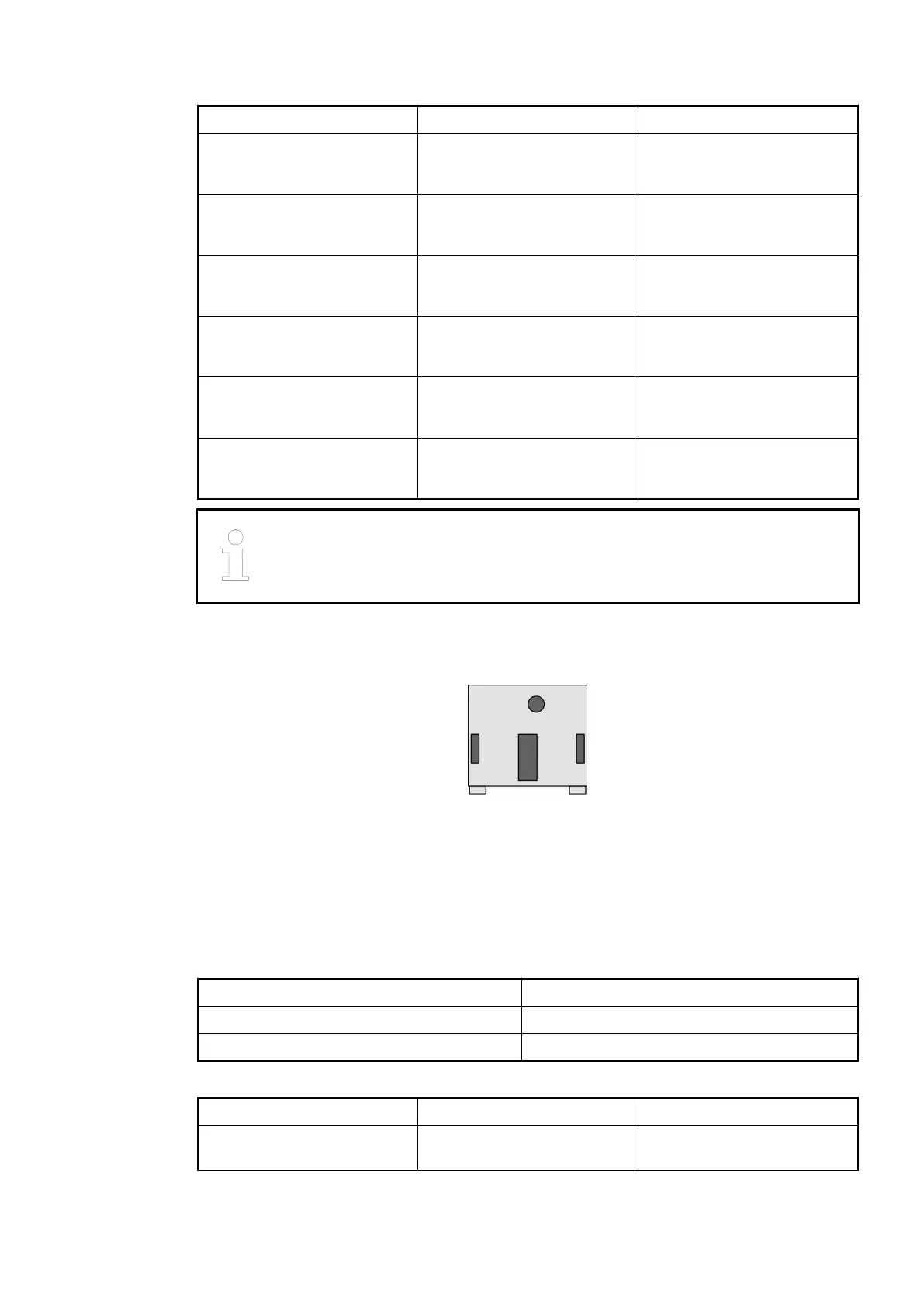

2.5.5.9 TA566 - Wall Mounting Accessory
The TA566 wall mounting accessory is used for mounting S500-eCo I/O modules and AC500-
eCo processor modules without DIN rail.
The TA566 is snapped into the back side of the device's housing Ä Chapter 2.5.3.2 “Mounting
and Demounting of S500-eCo I/O Modules” on page 1203.
Parameter Value
Weight 5 g
Dimensions 29 mm x 28 mm x 5 mm
Part No. Description Product Life Cycle Phase *)
1TNE 968 901 R3107 TA566, wall mounting acces-
sory, 100 pieces
Active
Ordering Data
Intended Pur-
pose
Handling
Instruction
Technical Data
Ordering Data
System Assembly, Construction and Connection
AC500-eCo > Handling of Accessories
2019/04/17 3ADR010121, 13, en_US 1243
