WARNING!
Risk of electric shock!
With an opened option cover, energized parts of the processor module could be
touched.
– Always turn off and disconnect the power supply for the processor module
before you open the option cover.
– Make sure that the option cover is closed before reconnecting the processor
module to the power supply.
Insertion/removal of the adaptor is also described in the installation instruction for TA561-RTC.
See
https://new.abb.com/products/ABB1SAP181400R0001 or use the QR code.
The option cover is available as a spare part (see TA570 spare part set for AC500-eCo pro-
cessor modules
Ä
Chapter 2.5.5.12 “TA570 - Spare Part Set” on page 1247).
Part No. Description Product Life Cycle Phase *)
1TNE 968 901 R4300 TA562-RS, serial RS-485
adaptor for PM55x/PM56x
Active
*) For planning and commissioning of new installations use modules in Active
status only.

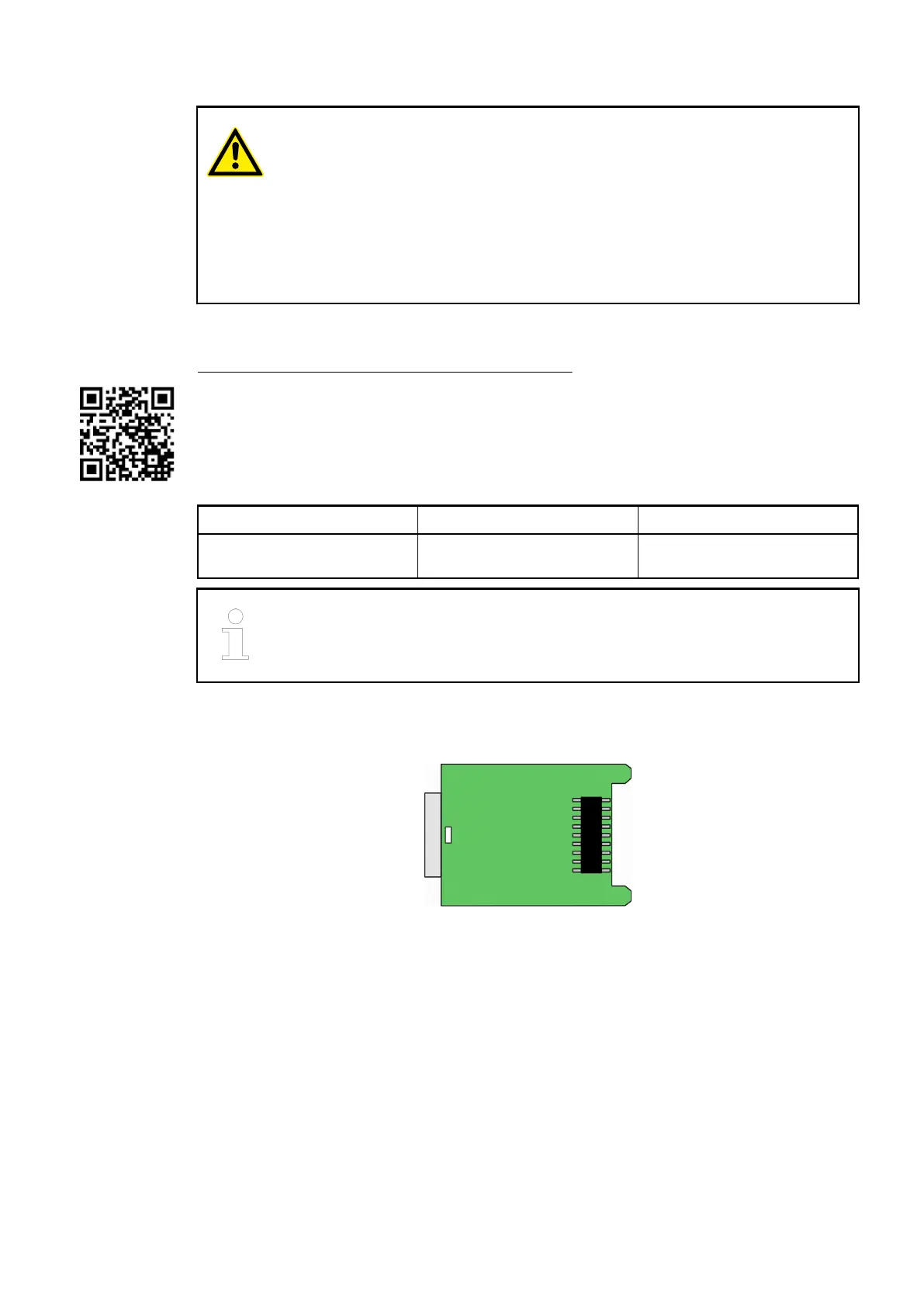

2.5.5.5 TA569-RS-ISO - Serial RS-485 Isolated Adaptor
The TA569-RS-ISO serial RS-485 isolated adaptor is used for equipping AC500-eCo processor
modules with a second serial interface COM2. The COM2 interface can be used for:
● online access
● free protocol communication
● Modbus RTU, client and server
The serial interface is isolated.
Insertion/
Removal of the
Adapter
Ordering Data
Intended Pur-
pose
System Assembly, Construction and Connection
AC500-eCo > Handling of Accessories
2019/04/173ADR010121, 13, en_US1232
