ABB AC500 PLC - Connection of Active-type Analog Sensors (Voltage) with no Electrically Isolated Power Supply to the Analog Inputs

2.0
AI0+
2.1
AI1+
2.2
AI2+
2.3
AI3+
2.4
AI-
2.5
AO0+
2.6
AO1+
2.7
AO-
2.8
UP
2.9
ZP
24 V DC
-
+
+
-
0 ... +20 mA
+4 ... +20 mA
U
IN

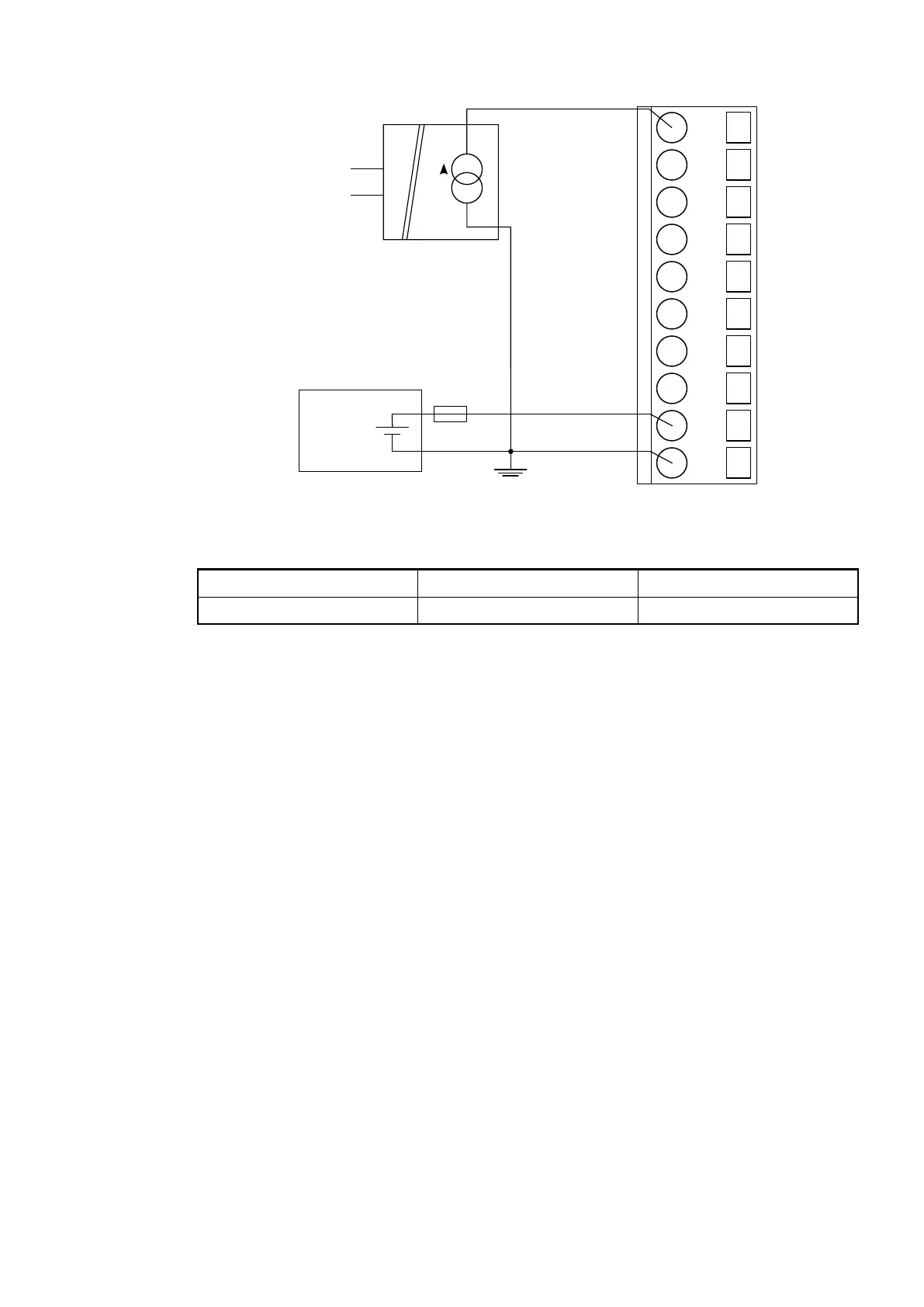

Fig. 122: Connection of active-type analog sensors (current) with electrically isolated power
supply to the analog inputs
Current 0...20 mA 1 channel used
Current 4...20 mA 1 channel used
For the measuring ranges that can be configured, please refer to the sections Measuring
Ranges
Ä Chapter 1.7.1.2.10 “Measuring Ranges” on page 731 and Parameterization
Ä Chapter 1.7.1.2.7 “Parameterization” on page 721.
Unused input channels can be left open-circuited, because they are of low resistance.
Connection of Active-type Analog Sensors (Voltage) with no Electrically Isolated Power Supply to the
Analog Inputs
The following figure shows the connection of active-type analog sensors (voltage) with no elec-
trically isolated power supply to the analog input AI0. Proceed with the analog inputs AI1 to AI3
in the same way.
