ABB AC500 PLC - 1.6.2 S500; 1.6.2.1 CD522 - Encoder, Counter and PWM Module

1.6.2 S500
1.6.2.1 CD522 - Encoder, Counter and PWM Module
● 2 encoder inputs with 2 integrated 5-V-power-supplies for the encoders
● 2 PWM outputs - 2 digital inputs 24 VDC
● 8 configurable digital inputs/outputs 24 VDC
● Fast counter
● Module-wise electrically isolated
● XC version for use in extreme ambient conditions available

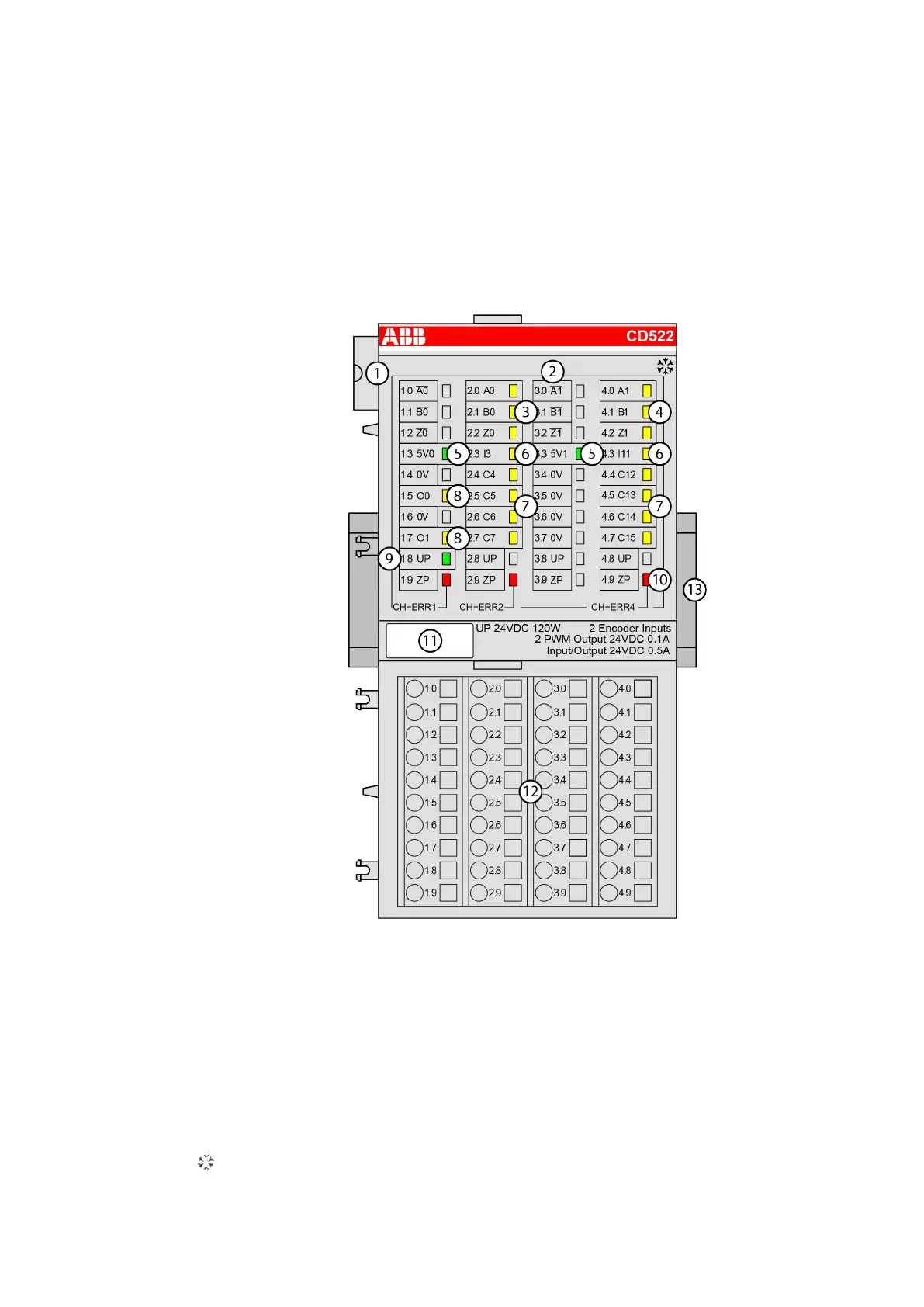

1 I/O bus
2 Allocation of terminal No. and signal name
3 3 yellow LEDs to display the signal states of the encoder 0 input
4 3 yellow LEDs to display the signal states of the encoder 1 input
5 2 green LEDs to display the 5-V-power-supply states
6 2 yellow LEDs to display the signal state of the digital input I3 and I11
7 8 yellow LEDs to display the input/output signal states
8 2 yellow LEDs to display the signal states of the PWM/pulse outputs
9 1 green LED to display the process voltage UP
10 3 red LEDs to display errors
11 Label
12 Terminal unit
13 DIN rail
