By vertical mounting, always place an end-stop terminal block (e.g. type BADL,
P/N: 1SNA399903R0200) on the bottom and on the top of the modules to prop-
erly secure the modules.
By high vibration applications and horizontal mounting, we also recommend to
place end-stop terminals at the right and left side of the device to properly
secure the modules, e.g. type BADL, P/N: 1SNA399903R0200.
2.6.2.2 Mechanical Dimensions AC500

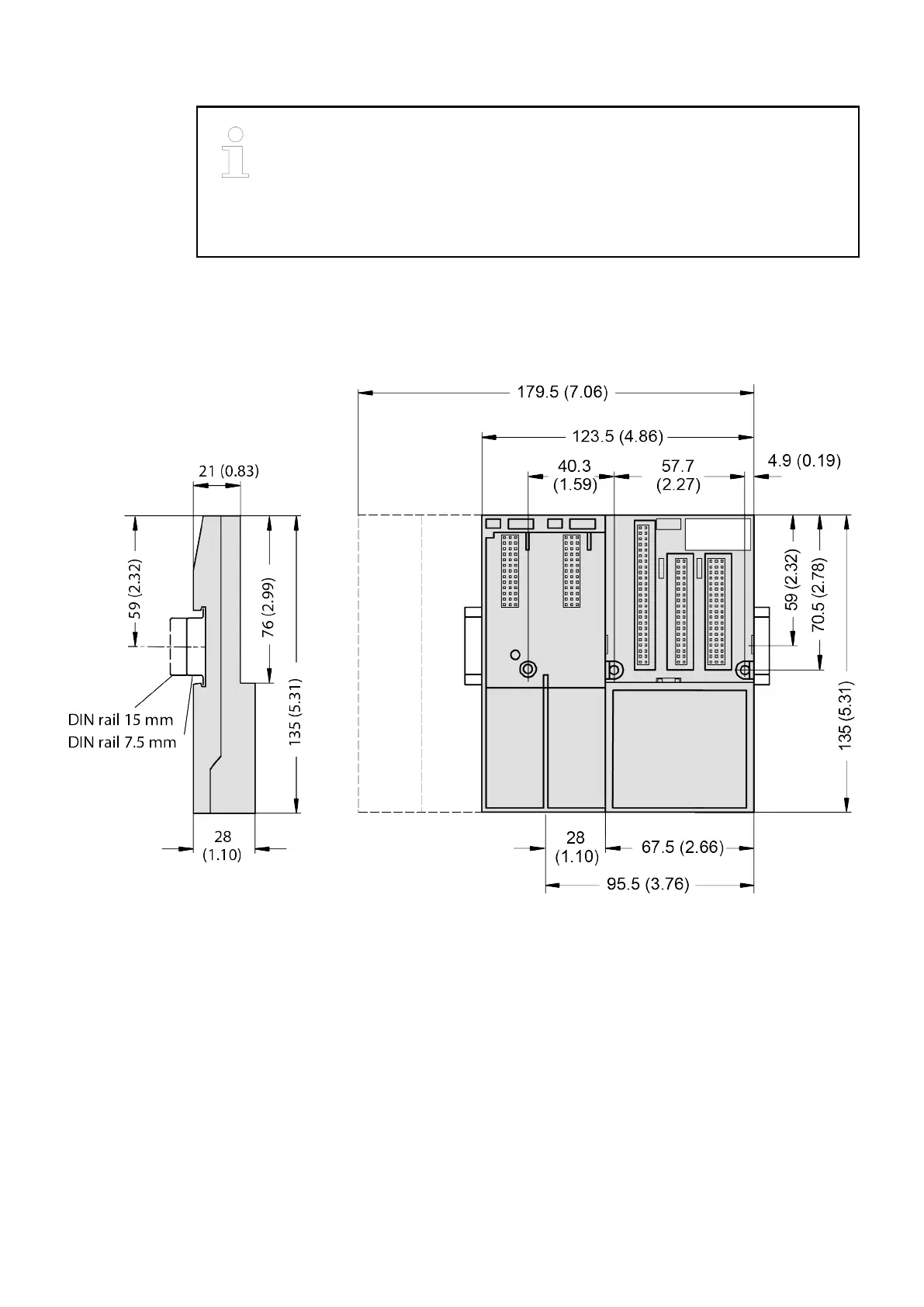

Fig. 215: Terminal Bases, side view and front view
Dimensions:
Terminal Bases
System Assembly, Construction and Connection
AC500 (Standard) > Mechanical Dimensions
