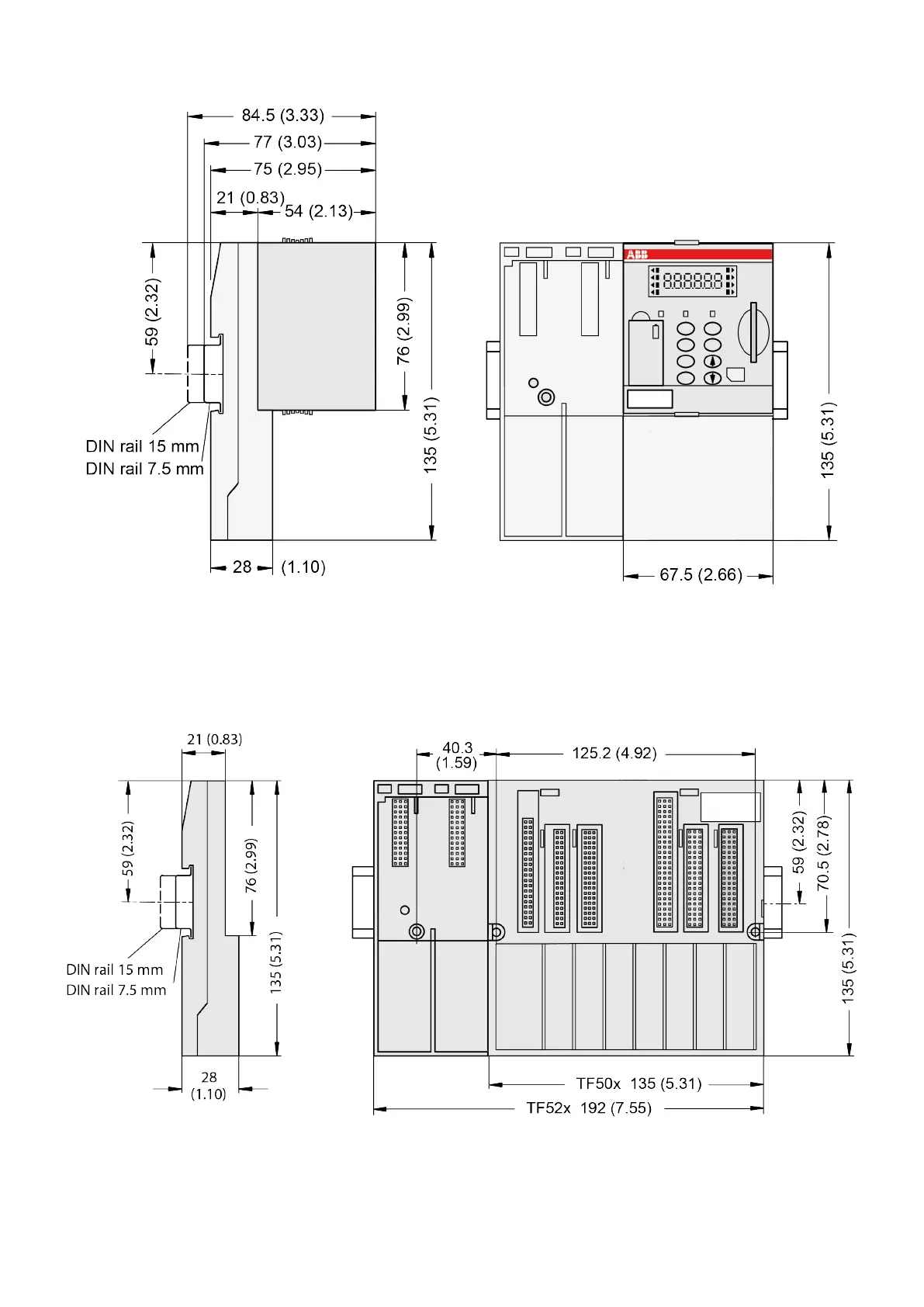

Fig. 216: Terminal Bases with Processor Modules, side view and front view
Fig. 217: Function Module Terminal Bases, side view and front view
Dimensions:
Function
Module Terminal
Bases
System Assembly, Construction and Connection
AC500 (Standard) > Mechanical Dimensions
