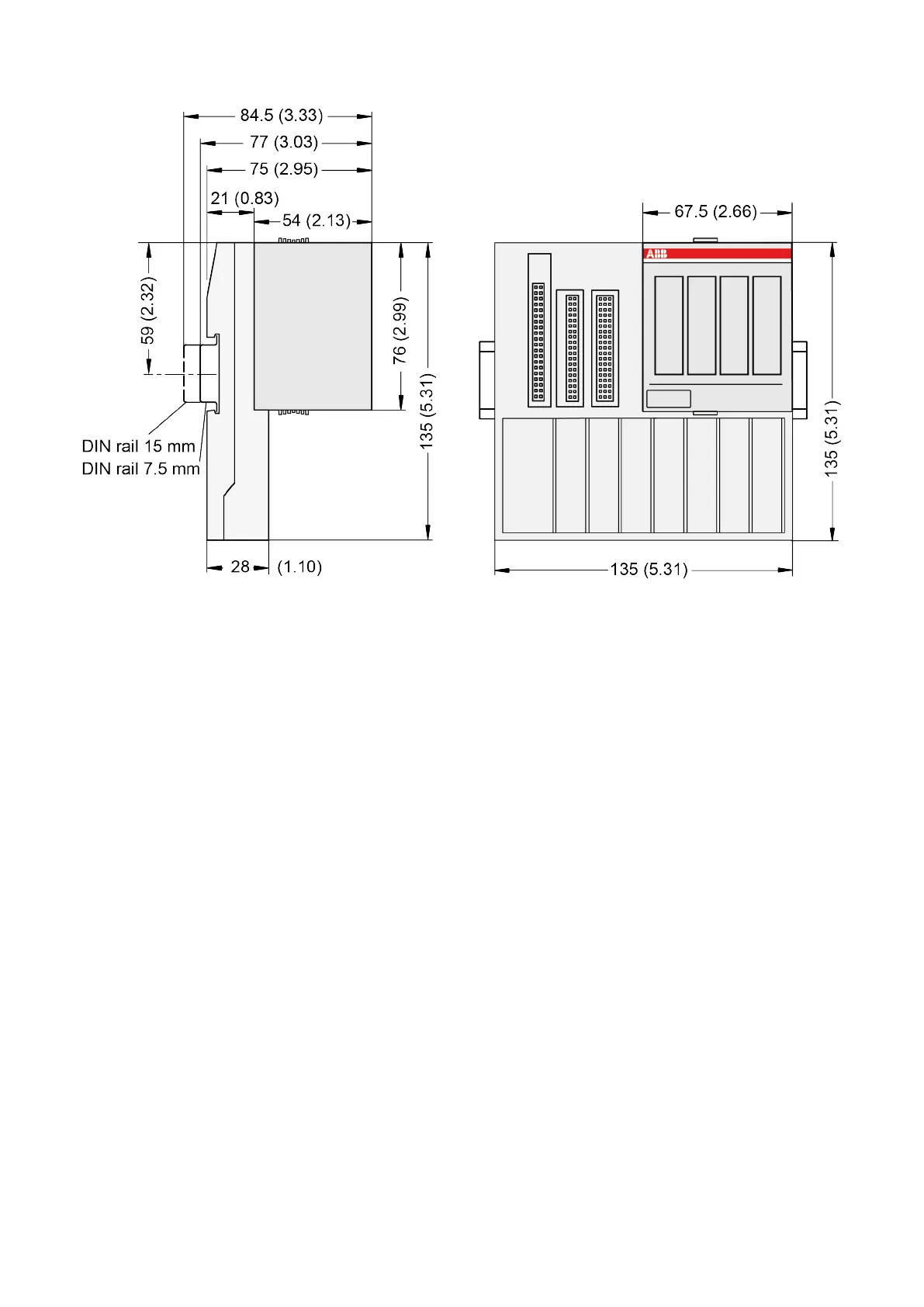

Fig. 218: Function Module Terminal Bases with Function Modules for CMS, side view and front view
System Assembly, Construction and Connection
AC500 (Standard) > Mechanical Dimensions
