ABB AC500 PLC - Functionality; Electrical Connection

Functionality
Parameter Value
LED displays For signal states
Internal power supply Via I/O bus
External power supply Via the terminals ZP and UP (process supply voltage
24 VDC)
Electrical Connection
For a detailed description of the mounting, disassembly and electrical connec-
tion of the module, please refer to the System Assembly chapter Ä Chapter 2.5
“AC500-eCo” on page 1192.
The electrical connection is carried out by using removable 9-pin and 11-pin terminal blocks.
These terminal blocks differ in their connection system (spring terminals or screw terminals,
cable mounting from the front or from the side). For more information, please refer to the
chapter Terminal Blocks for S500-eCo I/O Modules
Ä Chapter 1.8.3.2 “TA563-TA565 - Terminal
Blocks” on page 1164. The terminal blocks are not included in the module's scope of delivery and
must be ordered separately.

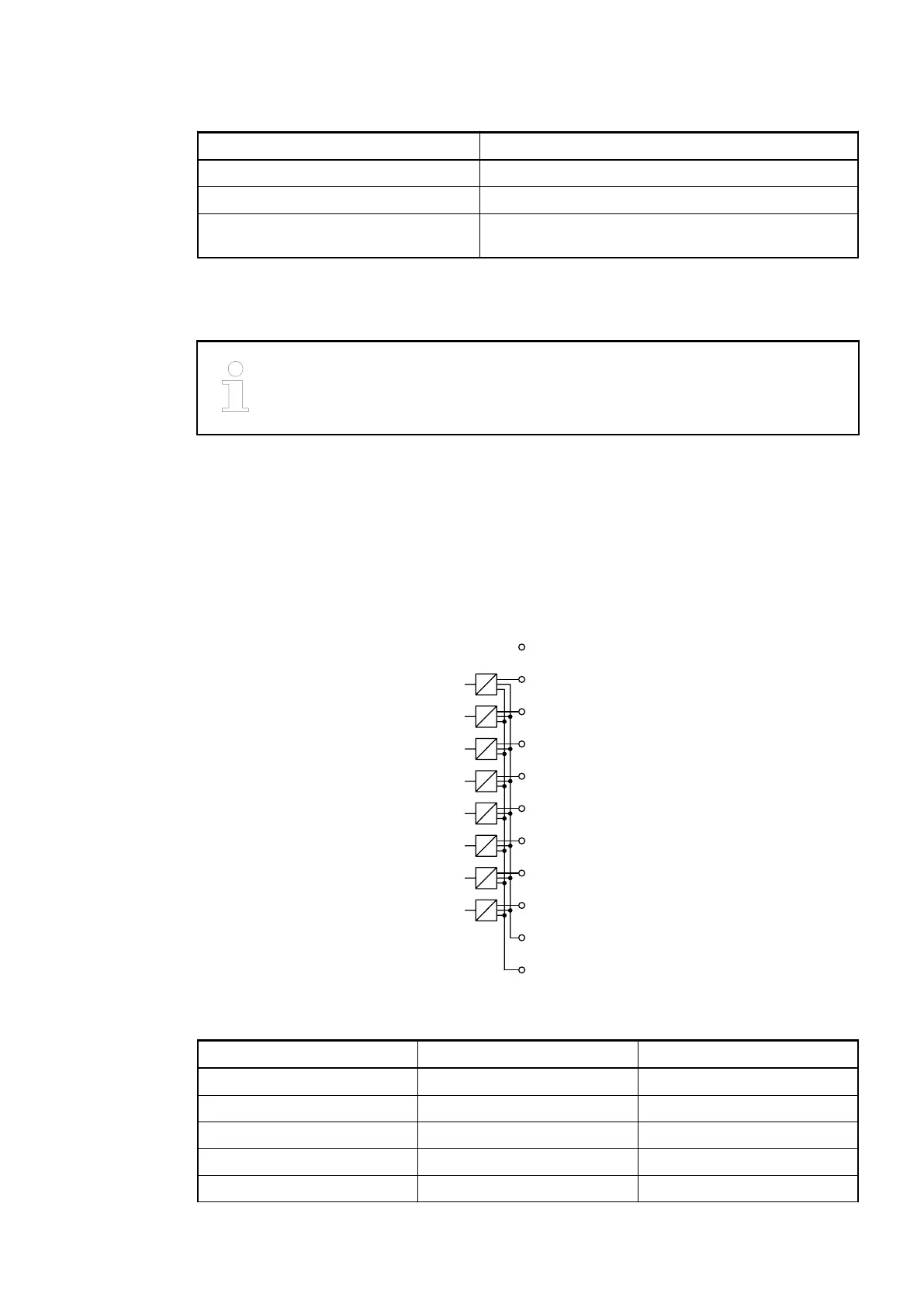

The following block diagram shows the internal construction of the digital outputs:
O0 11
O1 12
O2 13
O3 14
O4 15
O5 16
O6 17
O7 18
−−− 10
UP 19
ZP 20
Table 43: Assignment of the Terminals:
Terminals Signal Description
10 --- Reserved
11 O0 Output signal O0
12 O1 Output signal O1
13 O2 Output signal O2
14 O3 Output signal O3
Device Specifications
I/O Modules > Digital I/O Modules
2019/04/173ADR010121, 13, en_US224
