2.6.3.1 Mounting/Demounting Terminal Bases and Function Module Terminal Bases
1. Mount DIN rail 7.5 mm or 15 mm.
2. Mount the Terminal Base/Function Module Terminal Base:
ð

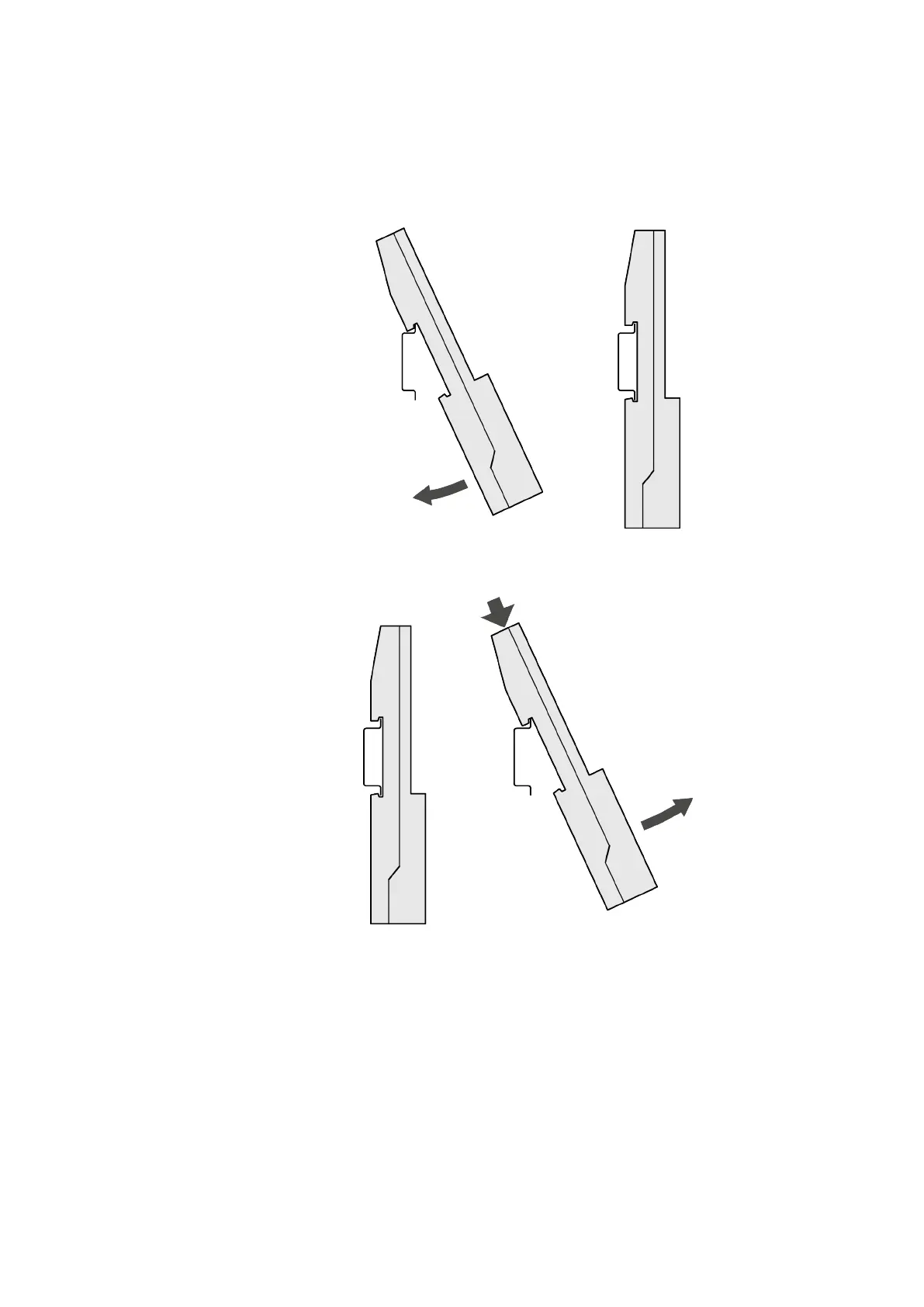

The Terminal Base is put on the DIN rail above and then snapped-in below.
3. The demounting is carried out in a reversed order.
If the Terminal Base should be mounted with screws, Wall Mounting Accessories TA526
Ä
Chapter 2.6.5.7 “TA526 - Wall Mounting Accessory” on page 1308 must be inserted at the
rear side first. These plastic parts prevent bending of the Terminal Base while screwing on.
TB51x needs one TA526, TB52x and TB54x need two TA526.
Demounting on
DIN rail
Mounting with
Screws
System Assembly, Construction and Connection
AC500 (Standard) > Mounting and Demounting
2019/04/173ADR010121, 13, en_US1262
