NOTICE!
Horizontal mounting is highly recommended.
Vertical mounting is possible, however, derating consideration should be made
to avoid problems with poor air circulation and overheating (see Ä Chapter
2.6.1.1 “Environmental Conditions” on page 1248).
By vertical mounting, always place an end-stop terminal block (e.g. type BADL,
P/N: 1SNA399903R0200) on the bottom and on the top of the modules to prop-
erly secure the modules.
By high vibration applications and horizontal mounting, we also recommend to
place end-stop terminals at the right and left side of the device to properly
secure the modules, e.g. type BADL, P/N: 1SNA399903R0200.
2.5.2.2 Mechanical Dimensions AC500-eCo
All mechanical dimensions are given in millimeters and inches. The value in
brackets is the inch-value.

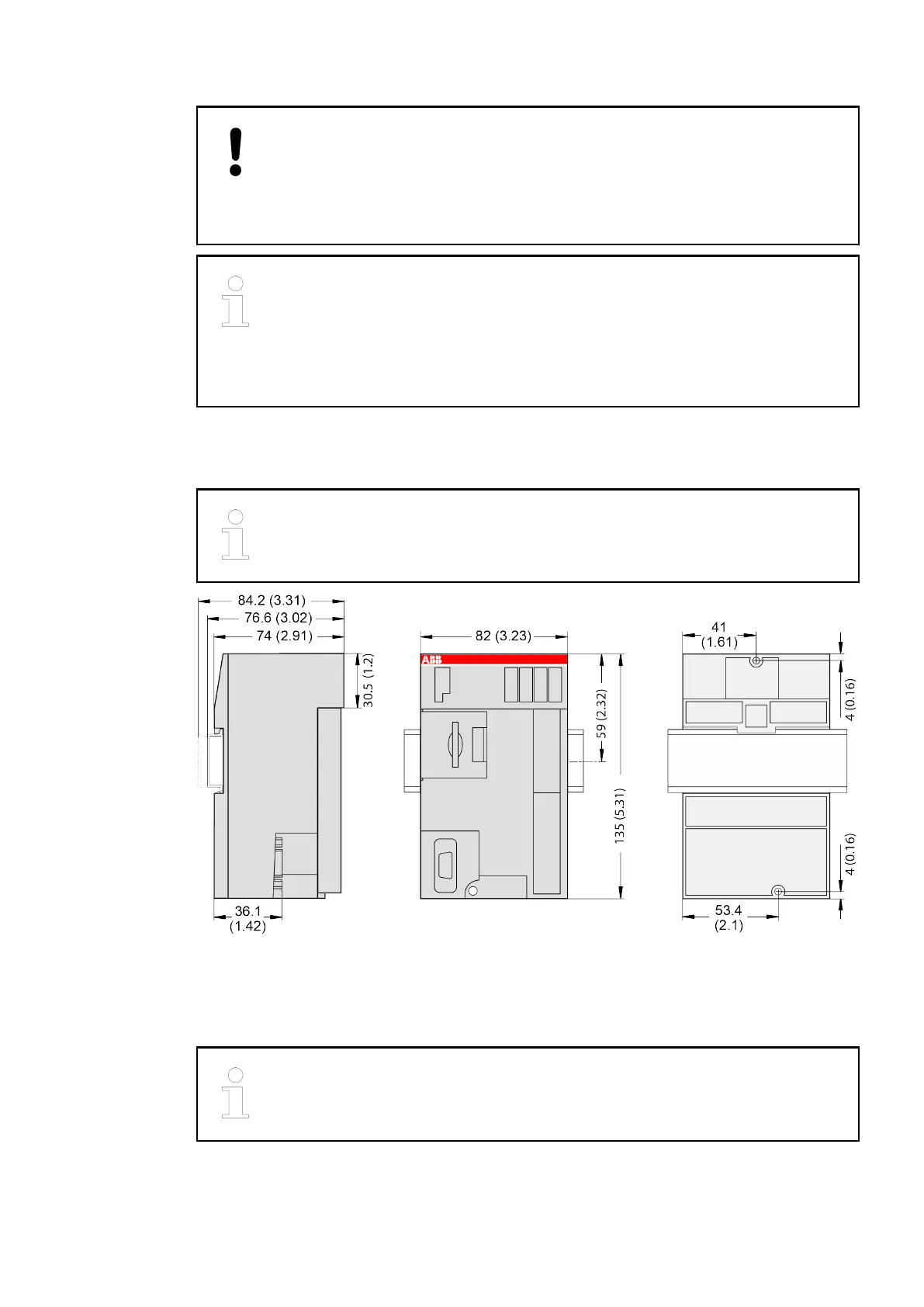

Fig. 202: Side, front and back view
2.5.2.3 Mechanical Dimensions S500-eCo
All mechanical dimensions are given in millimeters and inches. The value in
brackets is the inch-value.
