1.5.3 Digital/Analog I/O Modules
1.5.3.1 S500
1.5.3.1.1 DA501 - Digital/Analog Input/Output Module
● 16 digital inputs 24 VDC
● 8 configurable digital inputs/outputs 24 VDC, 0.5 A max.
● 4 analog inputs, voltage, current and RTD.
Resolution 12 bits plus sign
● 2 analog outputs, voltage and current
Resolution 12 bits plus sign
● Fast counter
● Module-wise electrically isolated
● XC version for use in extreme ambient conditions available

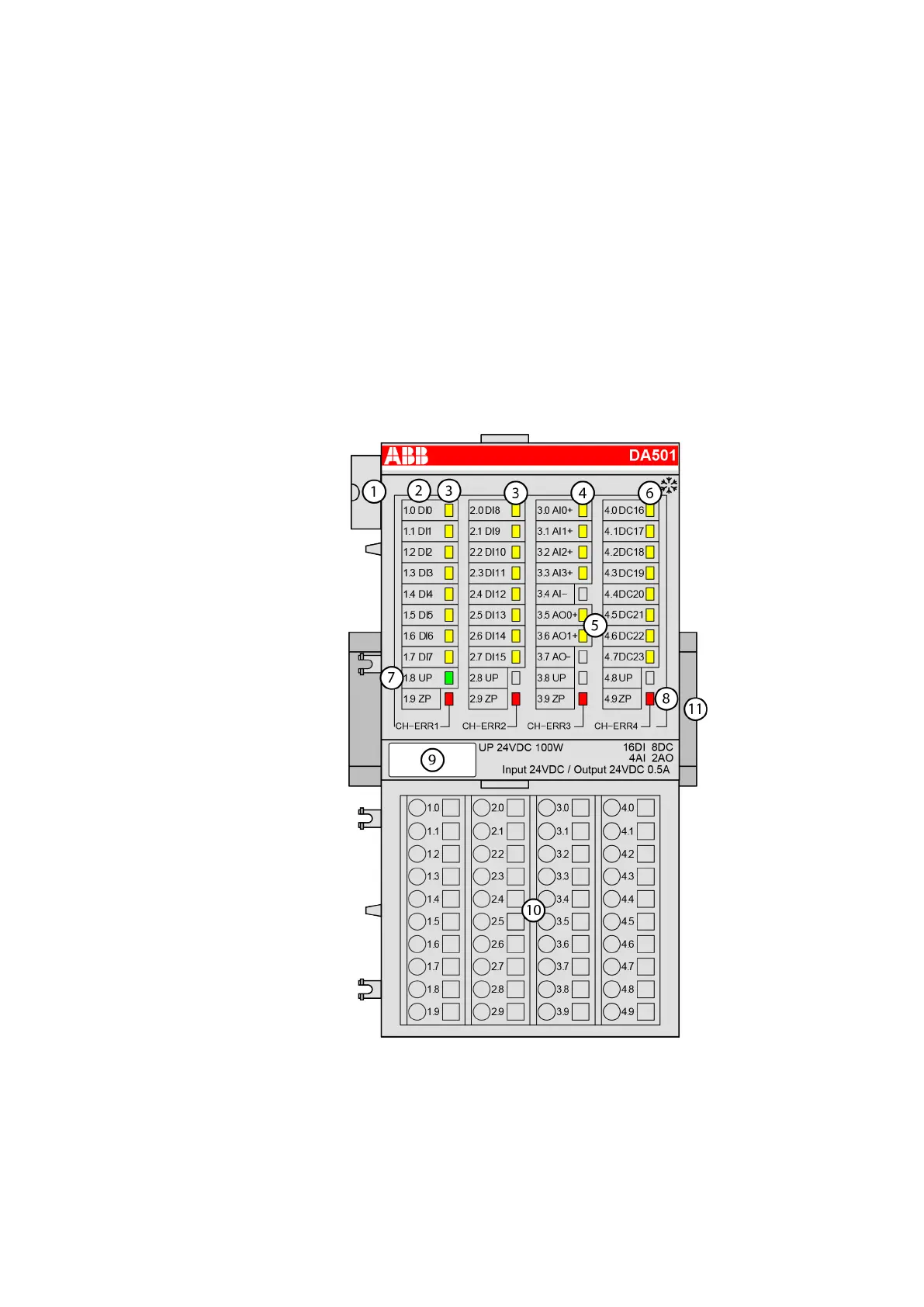

1 I/O bus
2 Allocation between terminal number and signal name
3 16 yellow LEDs to display the signal states of the digital inputs DI0 to DI15
4 4 yellow LEDs to display the signal states of the analog inputs AI0 to AI3
5 2 yellow LEDs to display the signal states of the analog outputs AO0 to AO1
6 8 yellow LEDs to display the signal state of the configurable digital inputs/outputs DC16 to
DC23
7 1 green LED to display the state of the process supply voltage UP
8 4 red LEDs to display errors
