2.6.4.5 Terminals for CANopen/DeviceNet Communication Modules

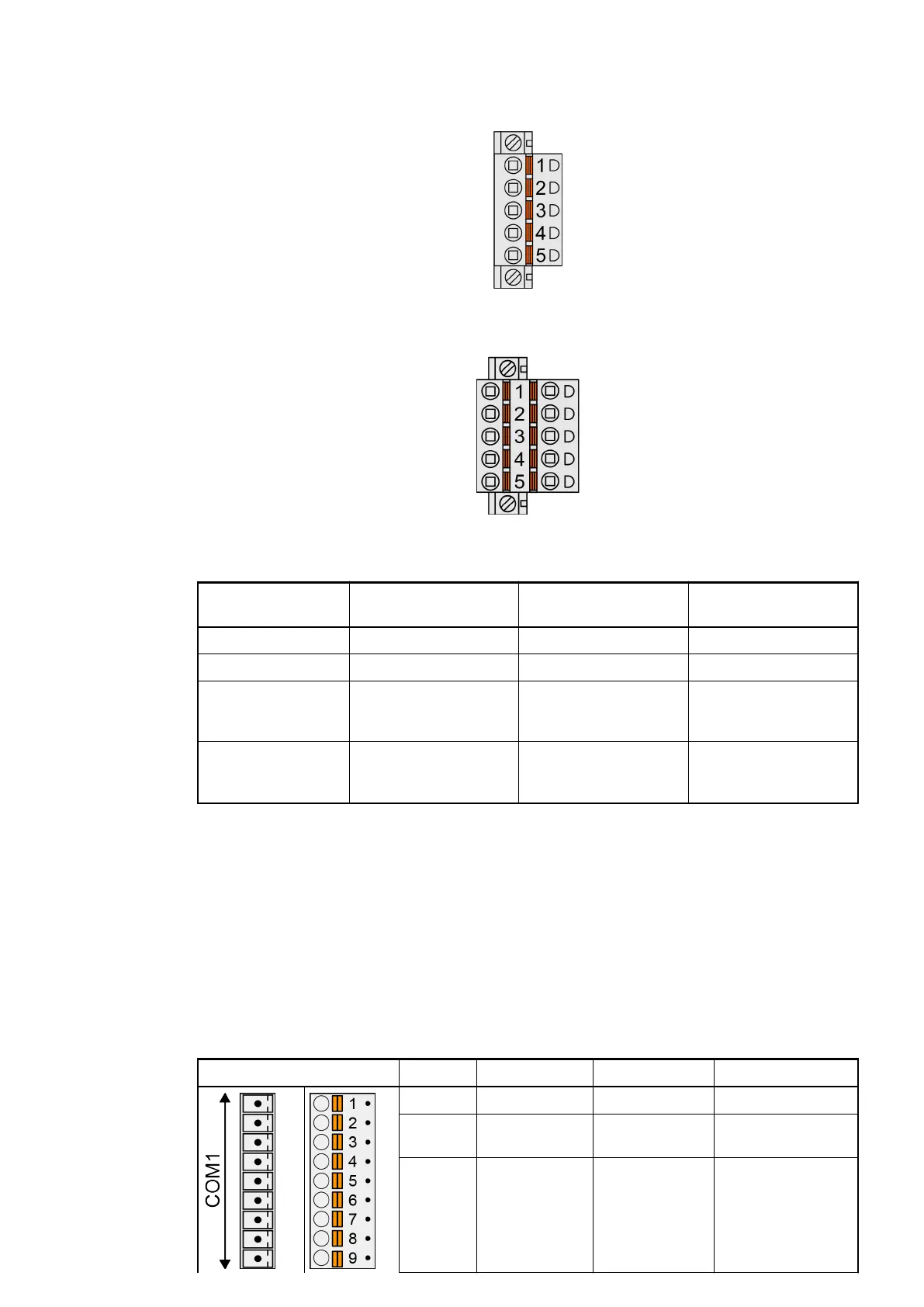

Fig. 231: Combicon, 5-pole, female, removable plug with spring terminals
Fig. 232: Combicon, 5-pole, female, removable plug with spring terminals
Number of cores
per terminal
Conductor type Cross section Stripped conductor
end
1 solid 0.2 mm² to 2.5 mm² 10 mm
1 flexible 0.2 mm² to 2.5 mm² 10 mm
1 with wire end fer-
rule (without plastic
sleeve)
flexible 0.25 mm² to 2.5 mm² 10 mm
1 with wire end fer-
rule (with plastic
sleeve)
flexible 0.25 mm² to 2.5 mm² 10 mm
2.6.4.6 Serial Interface COM1 of the Terminal Bases
The serial interface COM1 is connected via a removable 9-pin terminal block. It is configurable
for RS-232 or RS-485 and can be used for:
● Online access (not valid for PM56xx),
● A free protocol,
● Modbus RTU, client and server,
● CS31 system bus, as master only (not valid for PM56xx) Ä Chapter 2.6.4.8 “CS31 System
Bus” on page 1282.
Pin Signal Interface Description
1 Terminator P RS-485 Terminator P
2 RxD/TxD-P RS-485 Receive/Transmit,
positive
3 RxD/TxD-N RS-485 Receive/Transmit,
negative
Terminal type:
Spring terminal
System Assembly, Construction and Connection
AC500 (Standard) > Connection and Wiring
2019/04/173ADR010121, 13, en_US1278
