7. Insert wire into the open terminal
8. Done
2 3
Screwdriver
1
Screwdriver

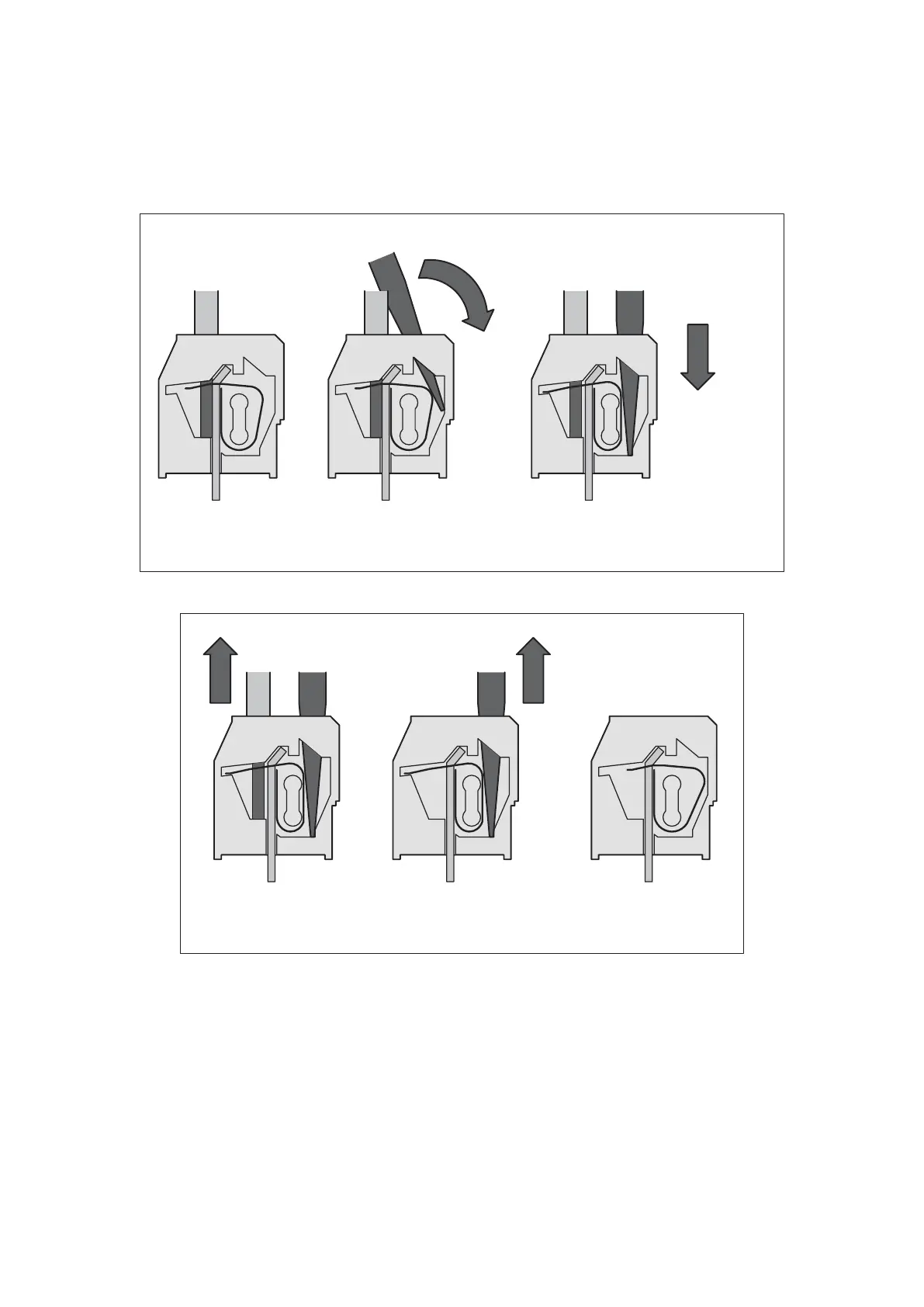

Fig. 229: Disconnect wire from the spring terminal (steps 1 to 3)
4 5 6
Conductor
Screwdriver
Fig. 230: Disconnect wire from the spring terminal (steps 4 to 6)
1. Terminal with wire connected
2. Insert screwdriver (2.5 x 0.4 to 3.5 x 0.5 mm) at an angle, screwdriver must be at least 15
mm free of insulation at the tip
3. While erecting the screwdriver, insert it until the stop (requires a little strength) - terminal is
now open
4. Remove wire from the open terminal
5. Done
Disconnection
System Assembly, Construction and Connection
AC500 (Standard) > Connection and Wiring
2019/04/17 3ADR010121, 13, en_US 1277
