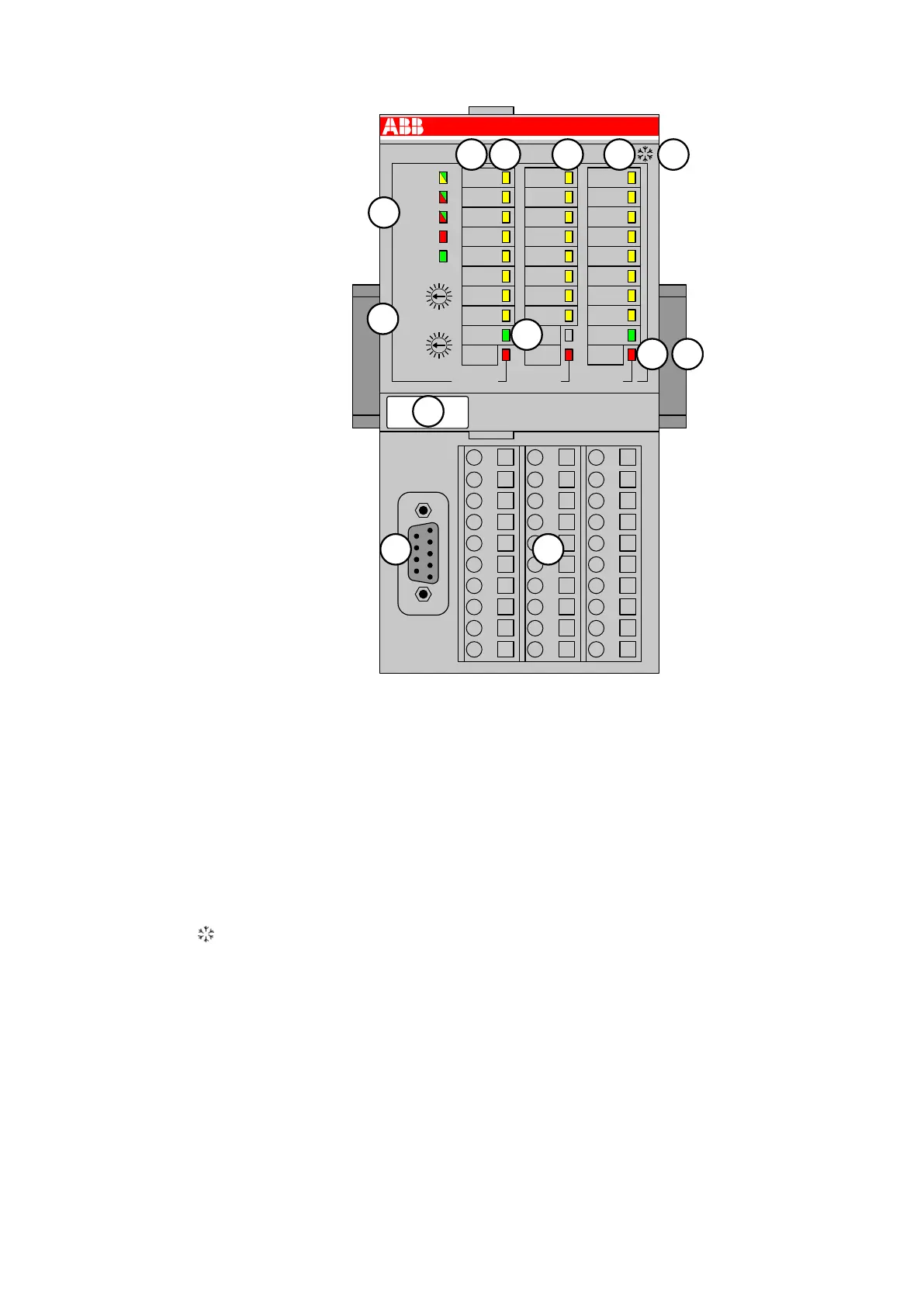

1 I/O bus
2 Allocation between terminal number and signal name
3 8 yellow LEDs to display the signal states of the configurable digital inputs/outputs (DC0 -
DC7)
4 8 yellow LEDs to display the signal states of the digital inputs (DI8 - DI15)
5 8 yellow LEDs to display the signal states of the digital outputs (DO8 - DO15)
6 2 green LEDs to display the process supply voltage UP and UP3
7 3 red LEDs to display errors (CH-ERR1, CH-ERR2, CH-ERR3)
8 5 system LEDs: PWR/RUN, STA1 DP, STA2 DP, S-ERR, I/O-Bus
9 Label
10 2 rotary switches for setting the PROFIBUS ID
11 9-pole D-SUB connector to connect the PROFIBUS DP signals
12 Terminal unit
13 DIN rail
Sign for XC version
1.7.5.2.1 Intended Purpose
The PROFIBUS DP bus module is used as decentralized I/O module in PROFIBUS networks.
Depending on the used terminal unit the network connection is performed either via 9-pole
female D-SUB connector or via 10 terminals (screw-type or spring terminals) which are inte-
grated in the terminal unit.
The inputs/outputs are electrically isolated from the PROFIBUS network. There is no potential
separation between the channels. The configuration of the configurable digital inputs/outputs is
performed by software.
For usage in extreme ambient conditions (e.g. wider temperature and humidity range), a special
XC version of the device is available.
