Part No. Description Product Life Cycle Phase *)
1SAP 213 200 R0001 TU542, I/O terminal unit, 24 VDC,
spring terminals
Active
1SAP 413 200 R0001 TU542-XC, I/O terminal unit, 24 VDC,
spring terminals, XC version
Active
1.5.1.2.8 DX522 - Digital Input/Output Module
● 8 digital inputs 24 VDC, module-wise electrically isolated
● 8 relay outputs
● Fast counter
● XC version for use in extreme ambient conditions available

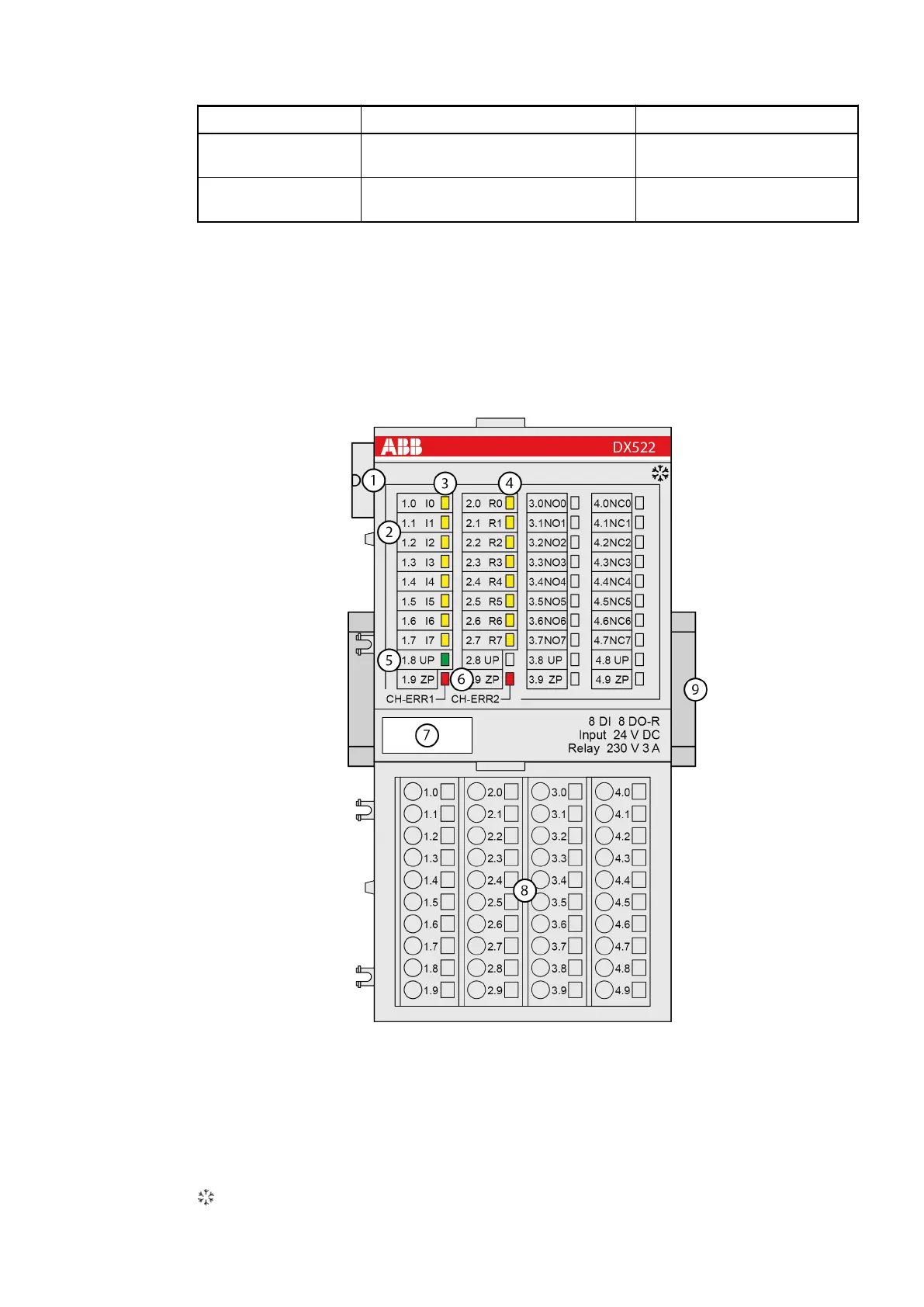

1 I/O bus
2 Allocation between terminal number and signal name
3 8 yellow LEDs to display the signal states at the digital inputs (I0 - I7)
4 8 yellow LEDs to display the signal states at the digital relay outputs (R0 - R7)
5 1 green LED to display the state of the process supply voltage UP
6 2 red LEDs to display errors
7 Label
8 Terminal unit
9 DIN rail
Sign for XC version
