ABB AC500 PLC - 1.5.2.1.3 AI563 - Analog Input Module

Part No. Description Product Life Cycle Phase *)
1TNE 968 901 R3104 Terminal block TA564-11, 11 pins,
screw front, cable front, 6 pieces per
unit
Active
1TNE 968 901 R3106 Terminal block TA565-11, 11 pins,
spring front, cable front, 6 pieces per
unit
Active
*) For planning and commissioning of new installations use modules in Active
status only.
1.5.2.1.3 AI563 - Analog Input Module
● 4 configurable thermocouple (TC) / -80 mV...+80 mV inputs (I0 to I3) in 1 group
● Resolution: 15 bits plus sign

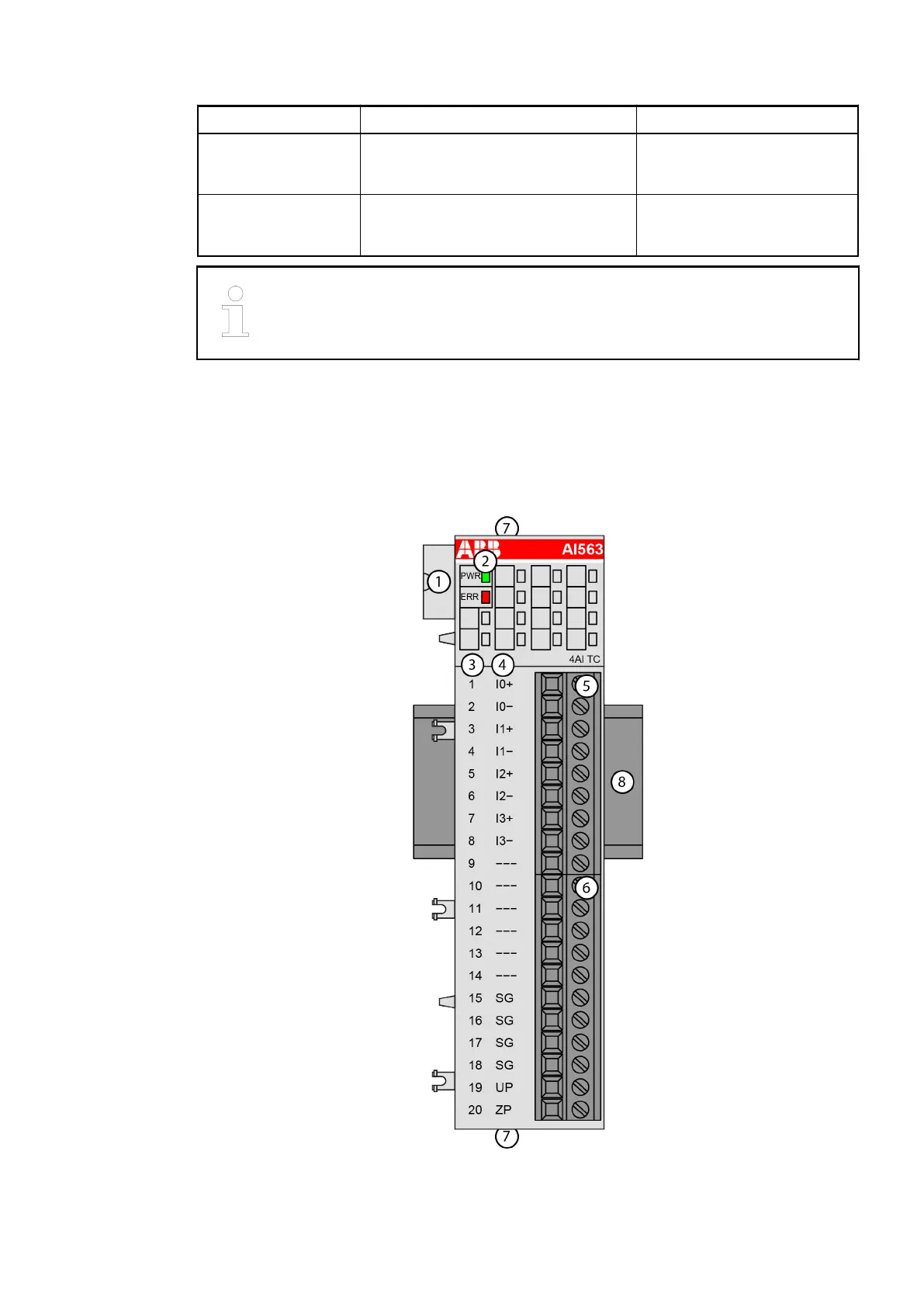

1 I/O bus
2 1 green LED to display power supply, 1 red LED to display error
3 Terminal number
Device Specifications
I/O Modules > Analog I/O Modules
2019/04/173ADR010121, 13, en_US416
