ABB AC500 PLC - Page 1260

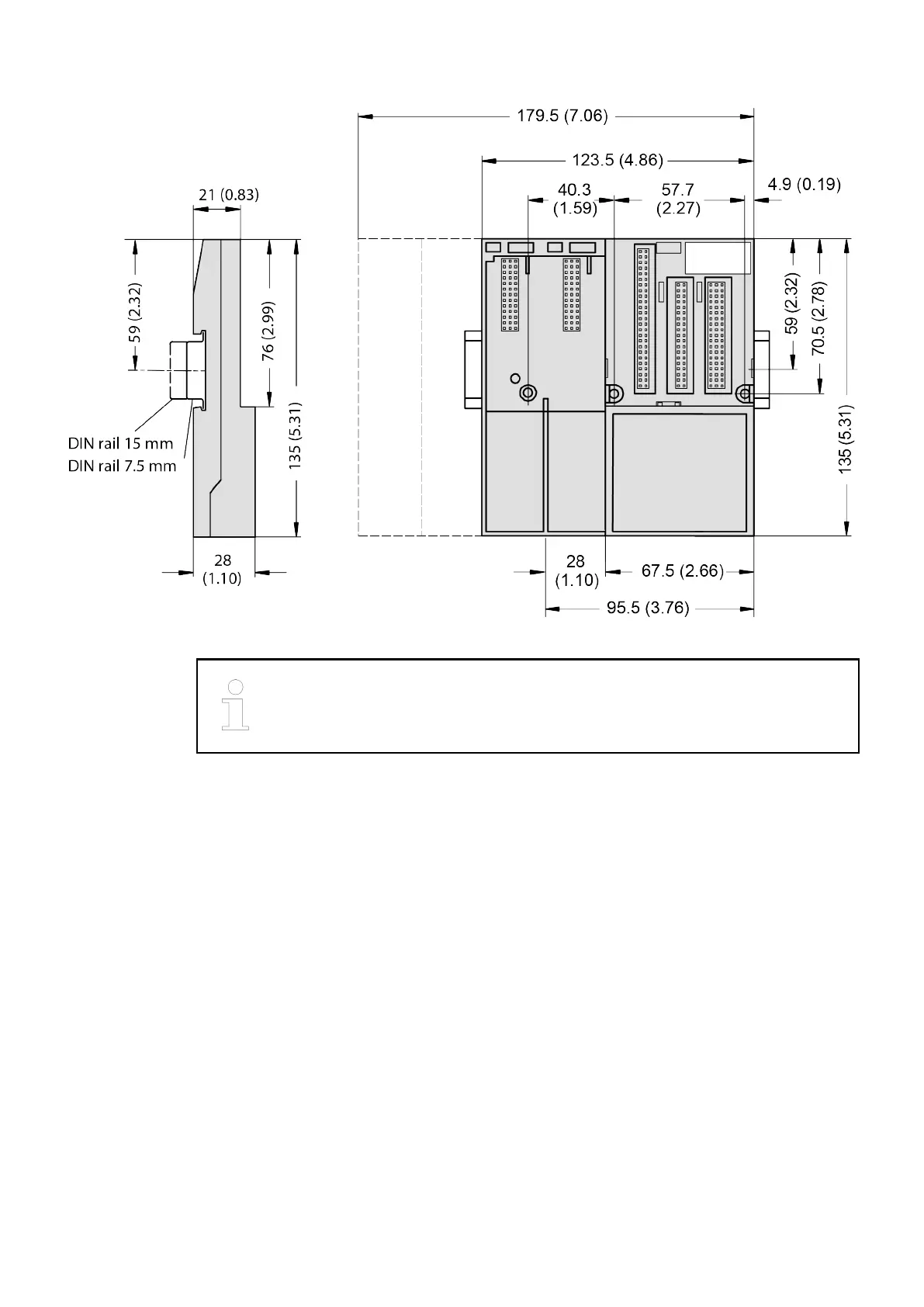

Fig. 222: Terminal Base (for comparison)
All dimensions are in mm (in.). Hole spacing tolerance: ± 0.4 mm (0.016 in.)
System Assembly, Construction and Connection
AC500 (Standard) > Mechanical Dimensions
