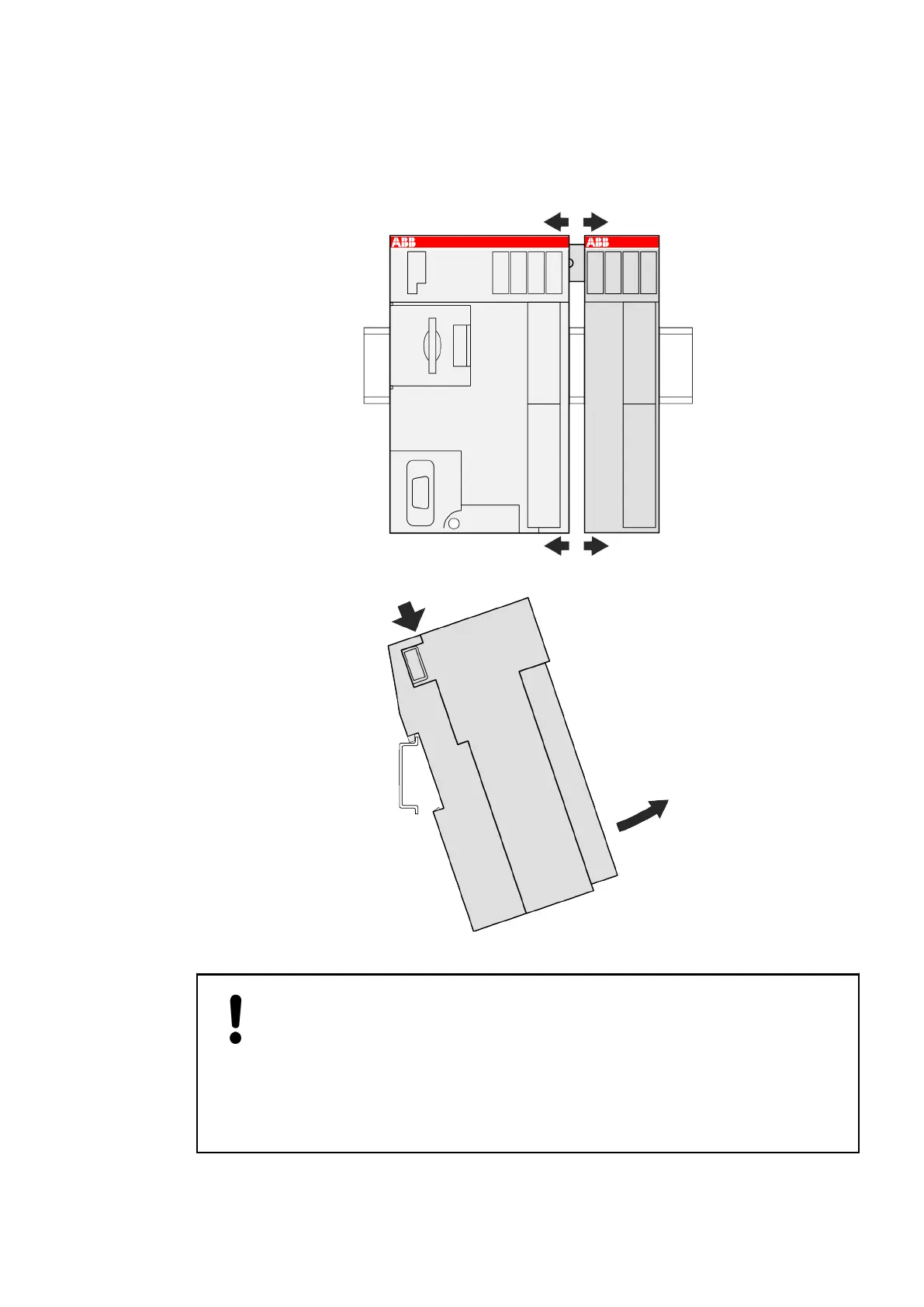

1. Remove I/O module by hand if connected.
2. While pressing down I/O module pull it away from DIN rail.
NOTICE!
Risk of function faults!
Missing electrical contact by isolating screws or washers!
Use metal screws on the metal plate.
The metal plate must be included into the earthing concept of the plant.
Do NOT use isolating washers!
Demounting I/O
Modules
Mounted on a
DIN Rail
Mounting I/O
Modules on a
Metal Plate
System Assembly, Construction and Connection
AC500-eCo > Mounting and Demounting
