ABB AC500 PLC - Page 287

NO212
NO111
R0..314
NO313
NO617
NO516
R4..719
NO718
NO010
NO415
L+20
I0 2
I1 3
I2 4
I3 5
I4 6
I5 7
I6 8
I7 9
C0..7 1

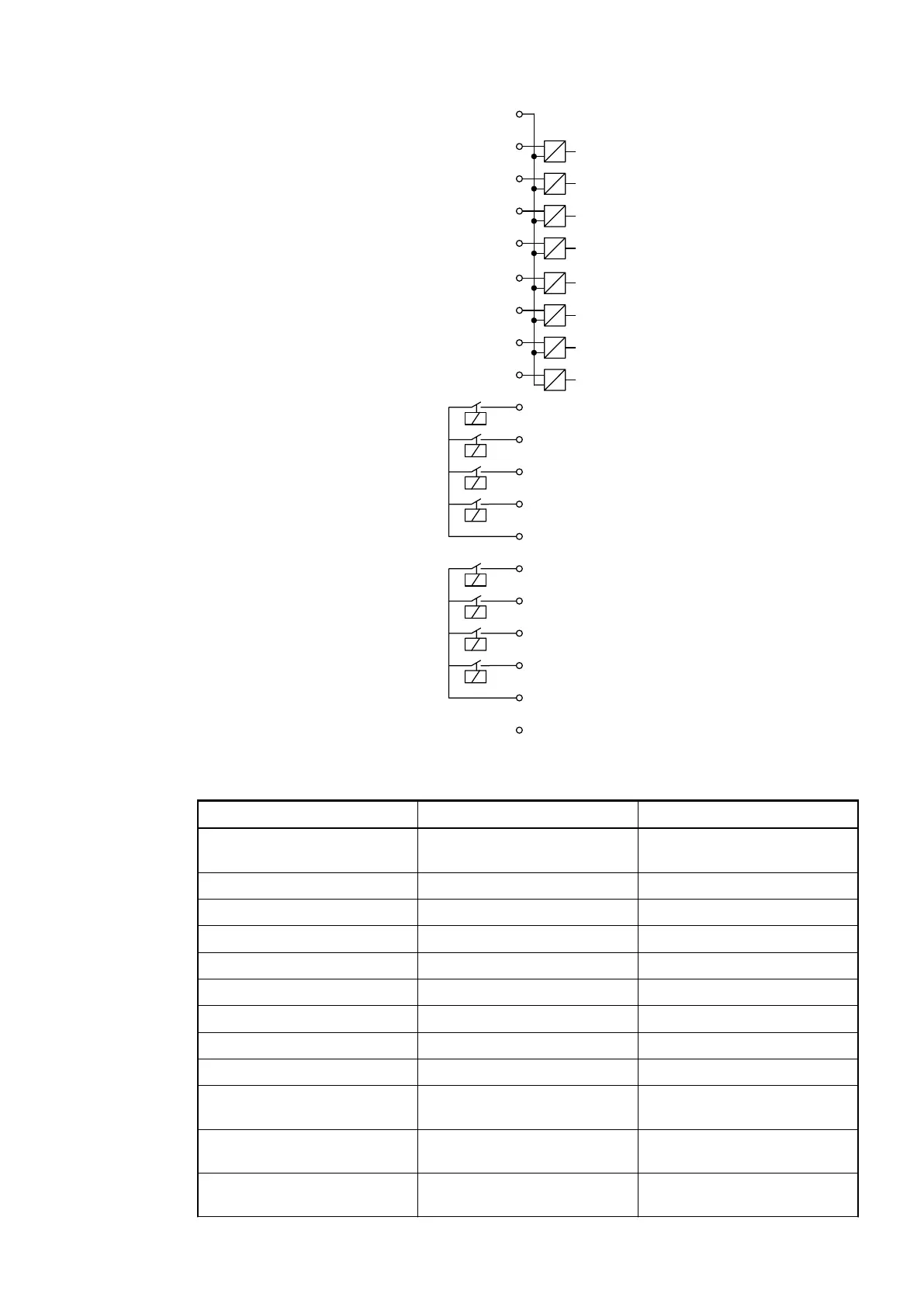

Table 49: Assignment of the Terminals:
Terminal Signal Description
1 C0...7 Input common for signals I0 to
I7
2 I0 Input signal I0
3 I1 Input signal I1
4 I2 Input signal I2
5 I3 Input signal I3
6 I4 Input signal I4
7 I5 Input signal I5
8 I6 Input signal I6
9 I7 Input signal I7
10 NO0 Normally-open contact of the
output 0
11 NO1 Normally-open contact of the
output 1
12 NO2 Normally-open contact of the
output 2
Device Specifications
I/O Modules > Digital I/O Modules
2019/04/17 3ADR010121, 13, en_US 287
