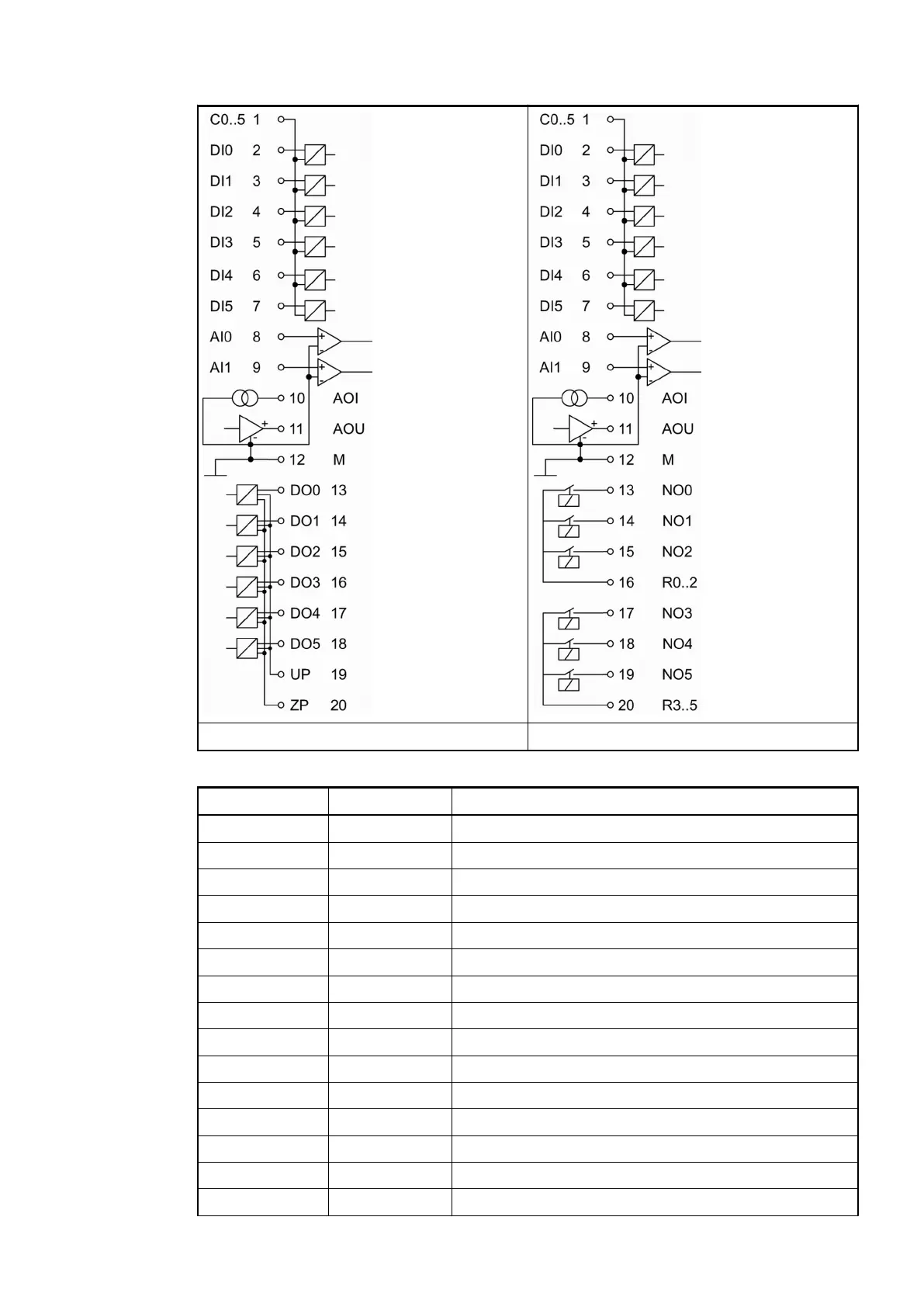

PM56x-T(P) PM56x-R(P)
Terminal Signal Description
1 C0...5 Input common for digital input signals DI0 to DI5
2 DI0 Digital input signal DI0
3 DI1 Digital input signal DI1
4 DI2 Digital input signal DI2
5 DI3 Digital input signal DI3
6 DI4 Digital input signal DI4
7 DI5 Digital input signal DI5
8 AI0 Analog voltage input signal AI0
9 AI1 Analog voltage input signal AI1
10 AOU Analog voltage output
11 AOI Analog current output
12 M Input/output common for analog signals
13 DO0 Digital output signal O0
14 DO1 Digital output signal O1
15 DO2 Digital output signal O2
Assignment of
the Terminals
for PM56x-T(P)
Device Specifications
Processor Modules > AC500-eCo
2019/04/173ADR010121, 13, en_US52
