PROGRAMMING CABLE TK503 / TK504
8 3ADR020159M0201, 1, en_US
4 Automation Builder Communication
1. Install TK503/TK504 programming cable driver.
2. Connect the TK503 or TK504 programming cable to a PC or laptop. Windows detects the
new hardware – complete the installation.
3. Start Automation Builder and open the project.

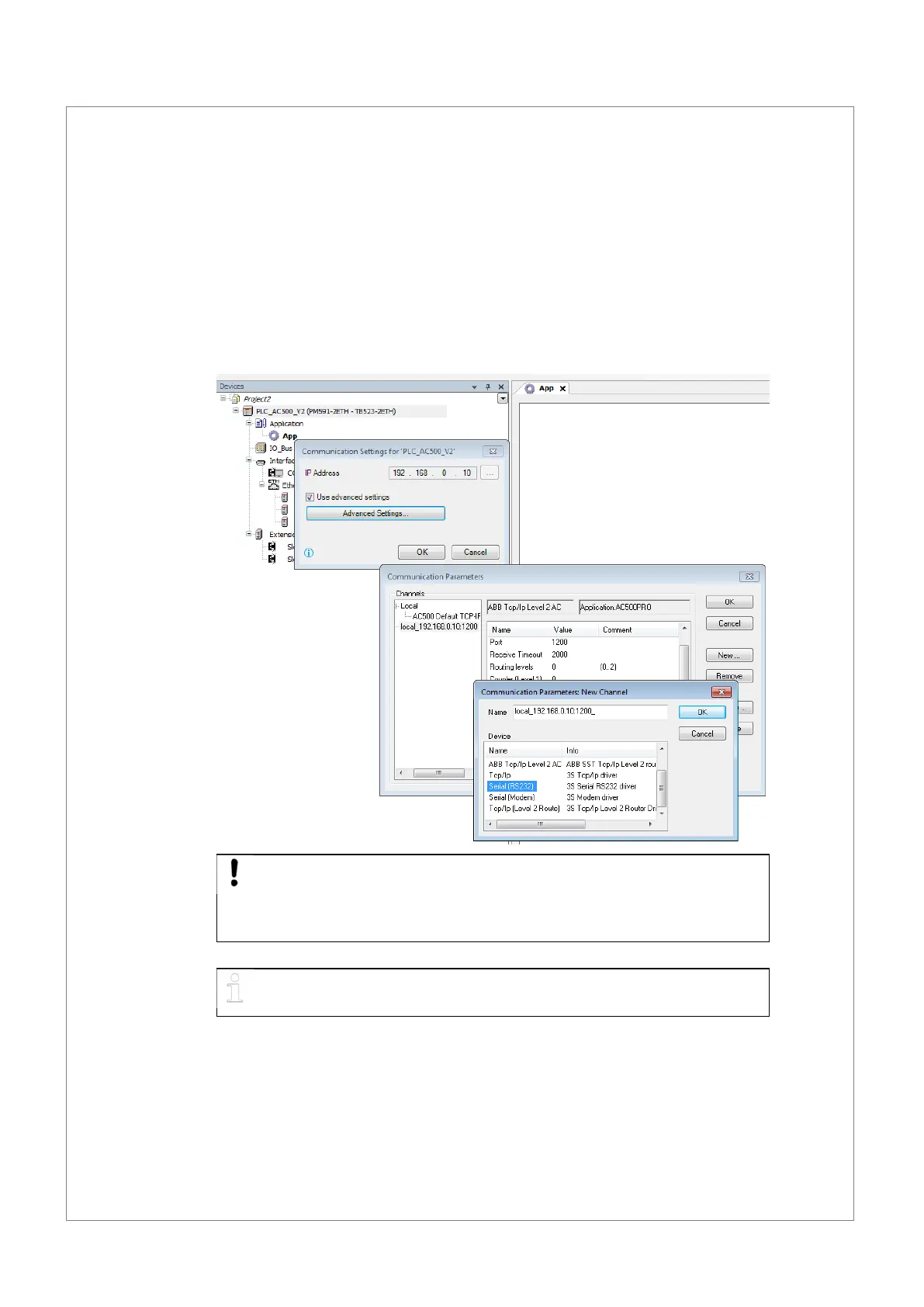

4. Right-click the PLC root node and select Communication Parameters.
5. Select the new virtual COM port.
NOTICE!
The port number must be the same as the port number in the Device manager – Port
– TK503/TK504 programming cable (COMx). Otherwise the communication cannot
be built up.
The number of COM ports depends on the availability on your computer.
The baud rate can be selected between 19200 and 115200 bps.
6. In CODESYS, create the communication between Automation Builder and the PLC.
